Description
ANDYCINE A6 Overview
- 1 Description
- 2 Focus and Exposure Tools
- 3 Connections
- 4 Tilt Arm Mounting
- 5 Power
- 6 Sunshade
- 7 Advanced Features

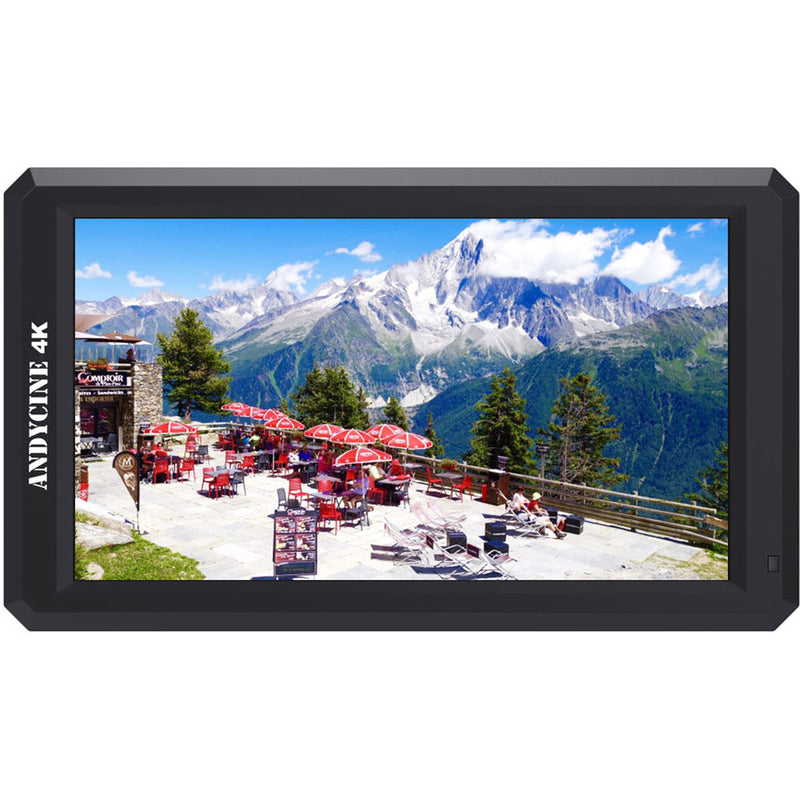

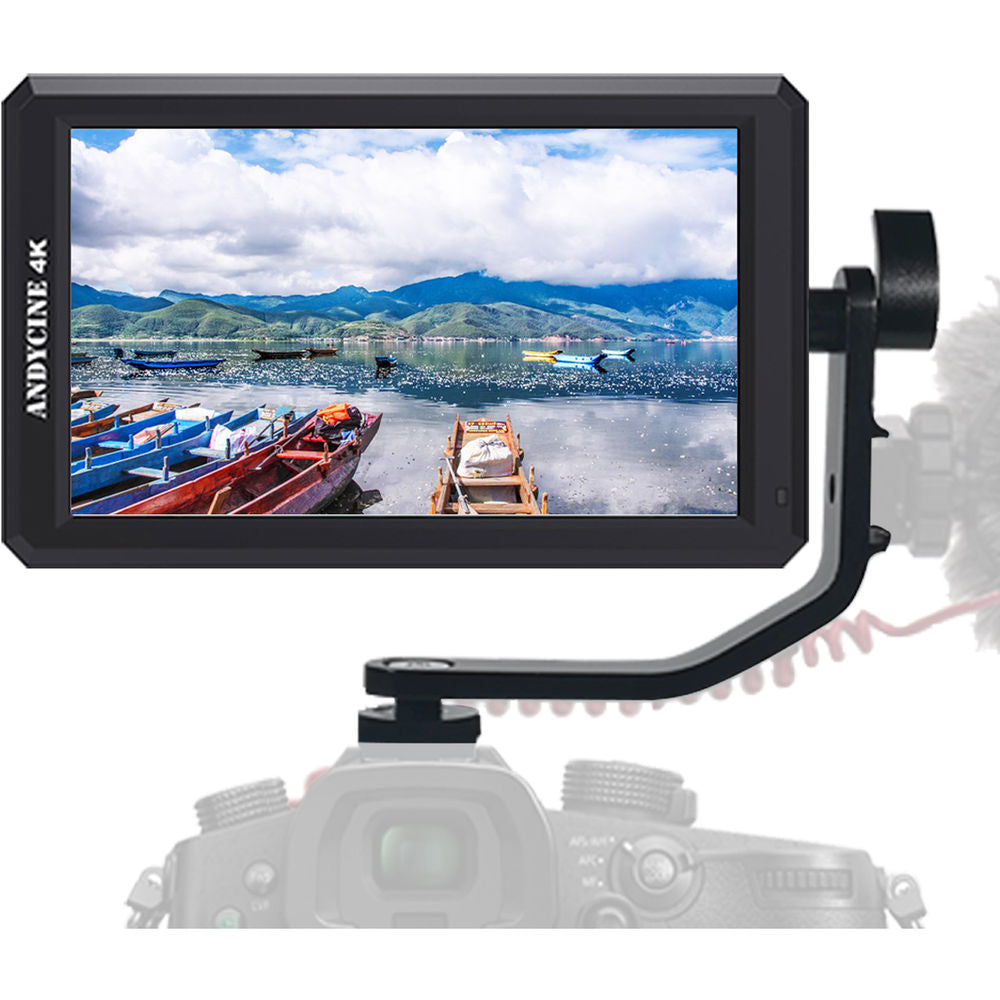

Use the A6 5.7" Full HD HDMI On-Camera Monitor with 4K Support from ANDYCINE to view your footage when shooting with your mirrorless camera, DSLR, or small camcorder. This 1920 x 1080 native resolution monitor enables you to accurately view the footage being captured and to check footage, exposure, and other parameters. Equipped with a single HDMI input, the A6 will support video resolutions up to DCI 4K.
The included tilt arm and a 160°-wide viewing angle enable you to easily position the A6 at the optimal angle. Power this compact, slim monitor using the integrated battery plate and a separately available L-Series type battery or a separately available 12 VDC power source. An 8 VDC output can be used with a separately available dummy battery to power select cameras. In addition to the tilt arm, a sunshade and a Mini HDMI cable are included with the A6 5.7" monitor.
Focus and Exposure Tools

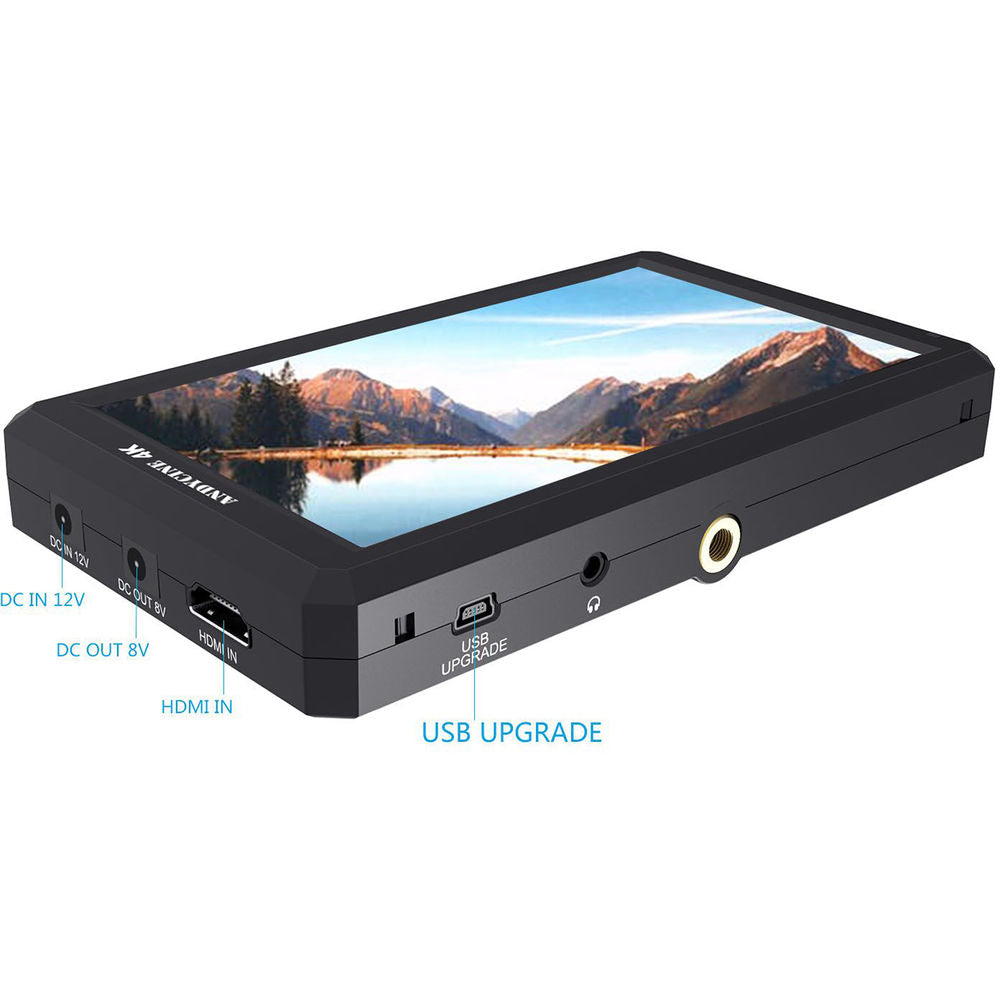

Connections

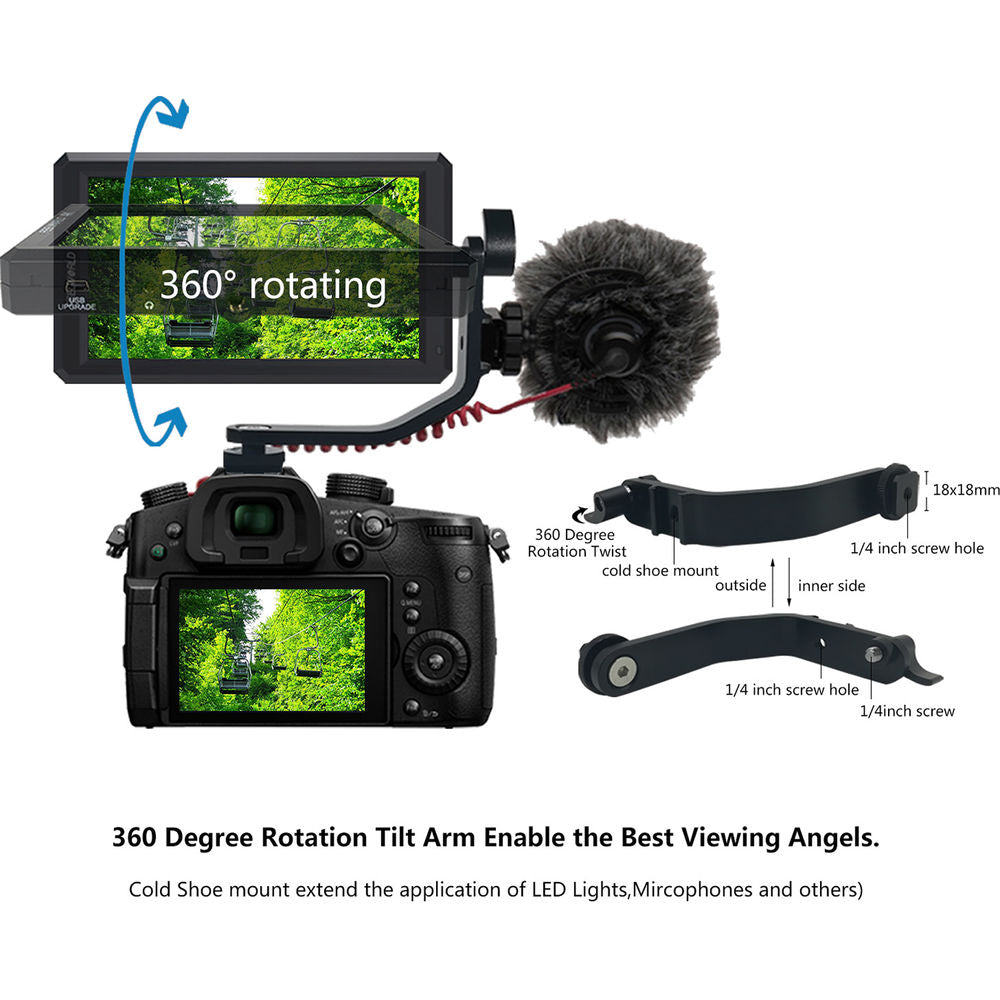

Tilt Arm Mounting
Power
Sunshade
Advanced Features
- Brightness histogram
- Peaking focus assist (red, green, blue)
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Nine-grid zoom (not supported in 4K mode)
- Camera mode (DSLR scaling)
- Zoom (4x, 9x, 16x) (not supported in 4K mode)
- Anamorphic mode (1.3x, 2.0x, 2.0x magnification)
- Pixel-to-pixel (not supported in 4K mode)
- Center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red/green/blue/mono)
- Image flip (H, V, H/V)
- Image freeze
- Zoom-all (not supported in 4K mode)
- Up/down and left/right zoom (not supported in 4K mode)
- Color temperature adjustment

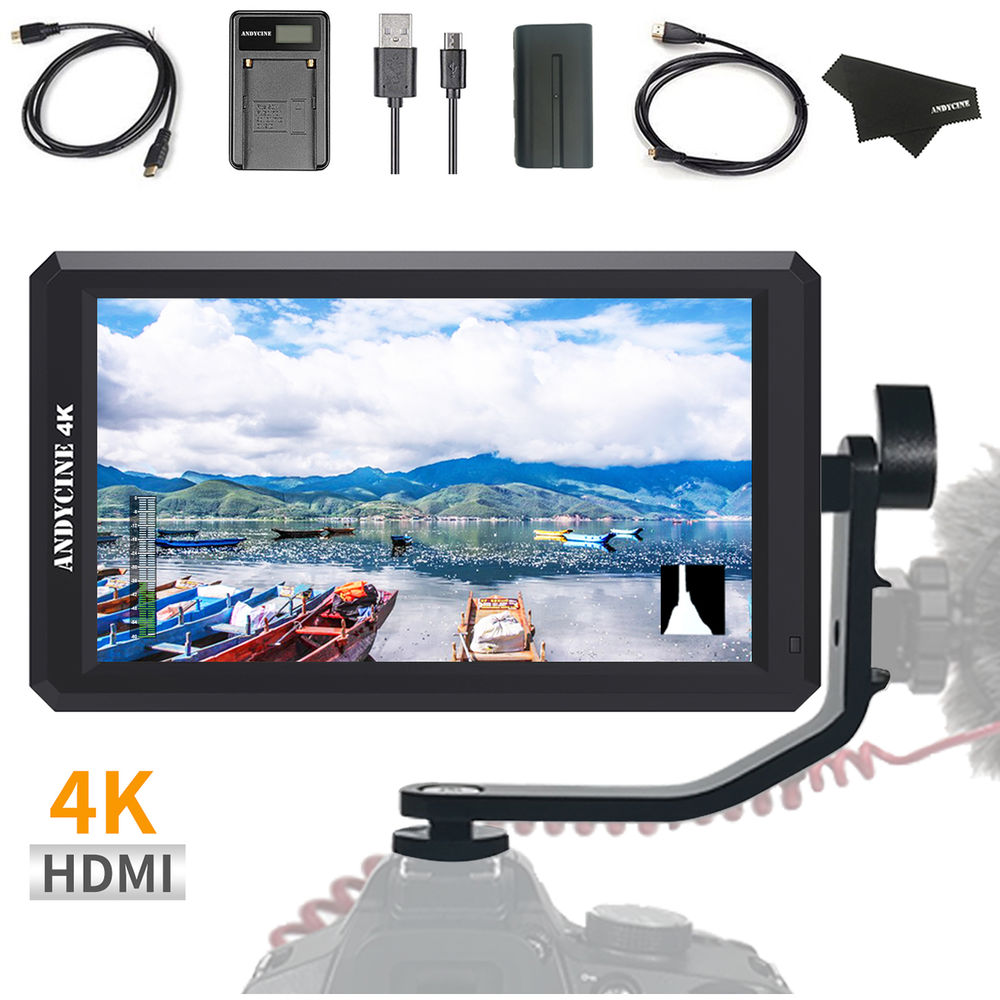

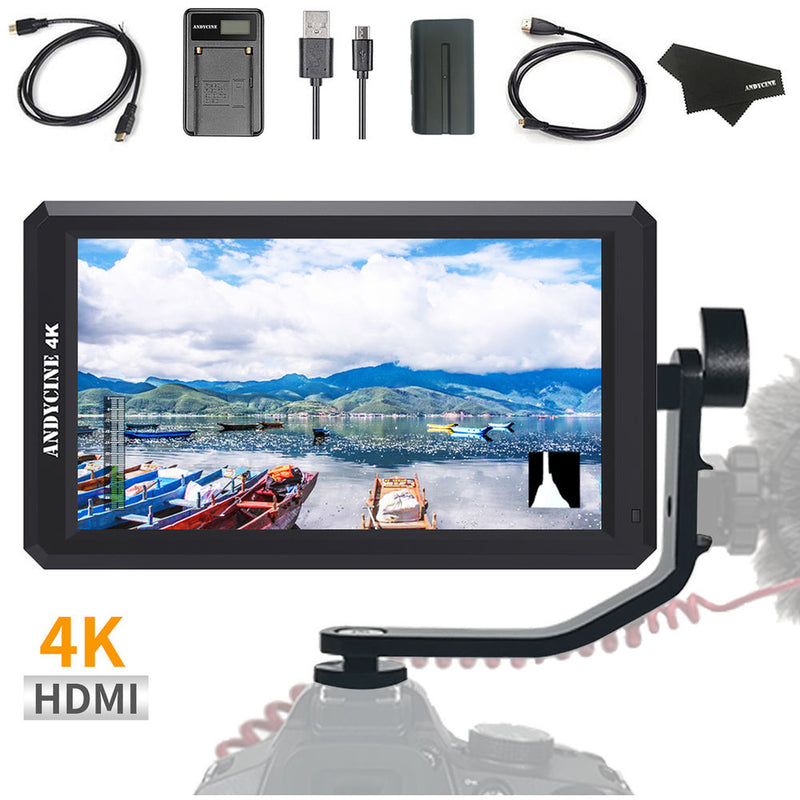

In the Box
- ANDYCINE A6 5.7" Full HD HDMI On-Camera Monitor with 4K Support/DC Out/Tilt Arm
- Tilt Arm
- Sunshade
- Mini HDMI Cable
- Limited 1-Year Warranty
- Description
- Focus and Exposure Tools
- Connections
- Tilt Arm Mounting
- Power
- Sunshade
- Advanced Features

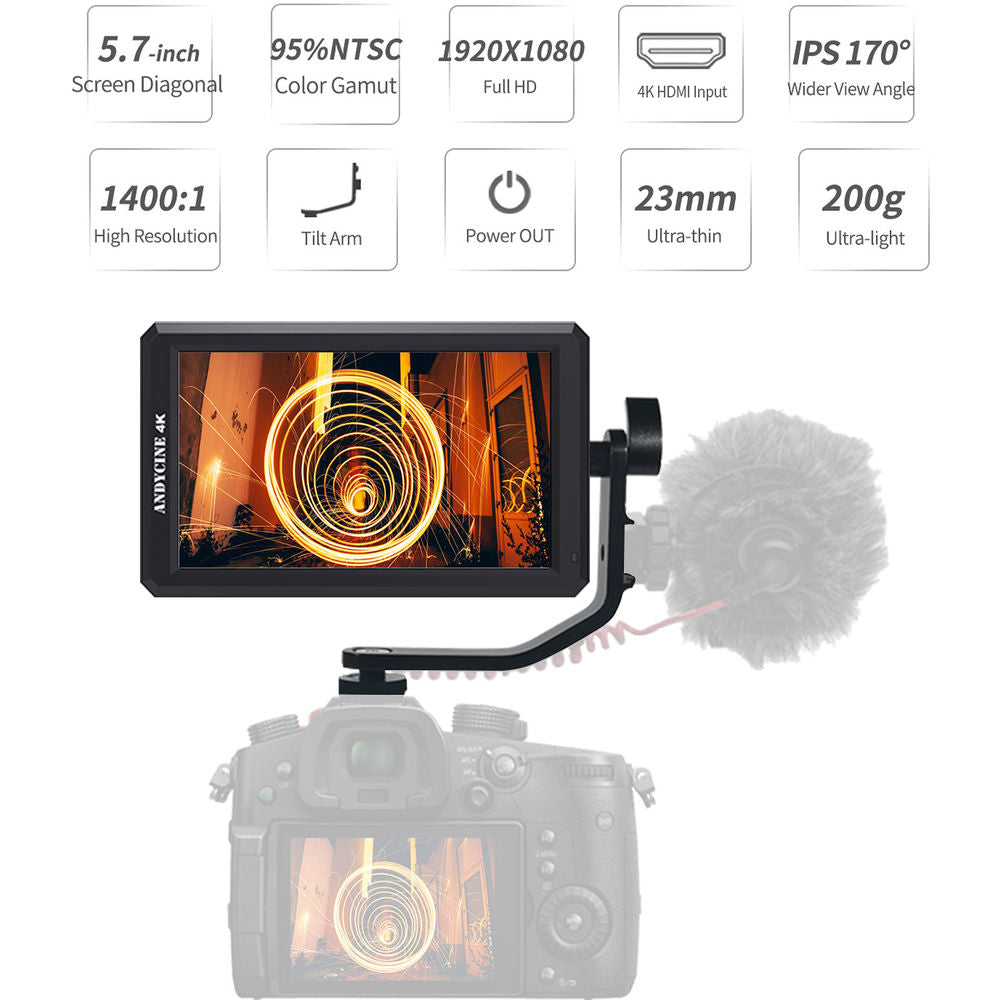

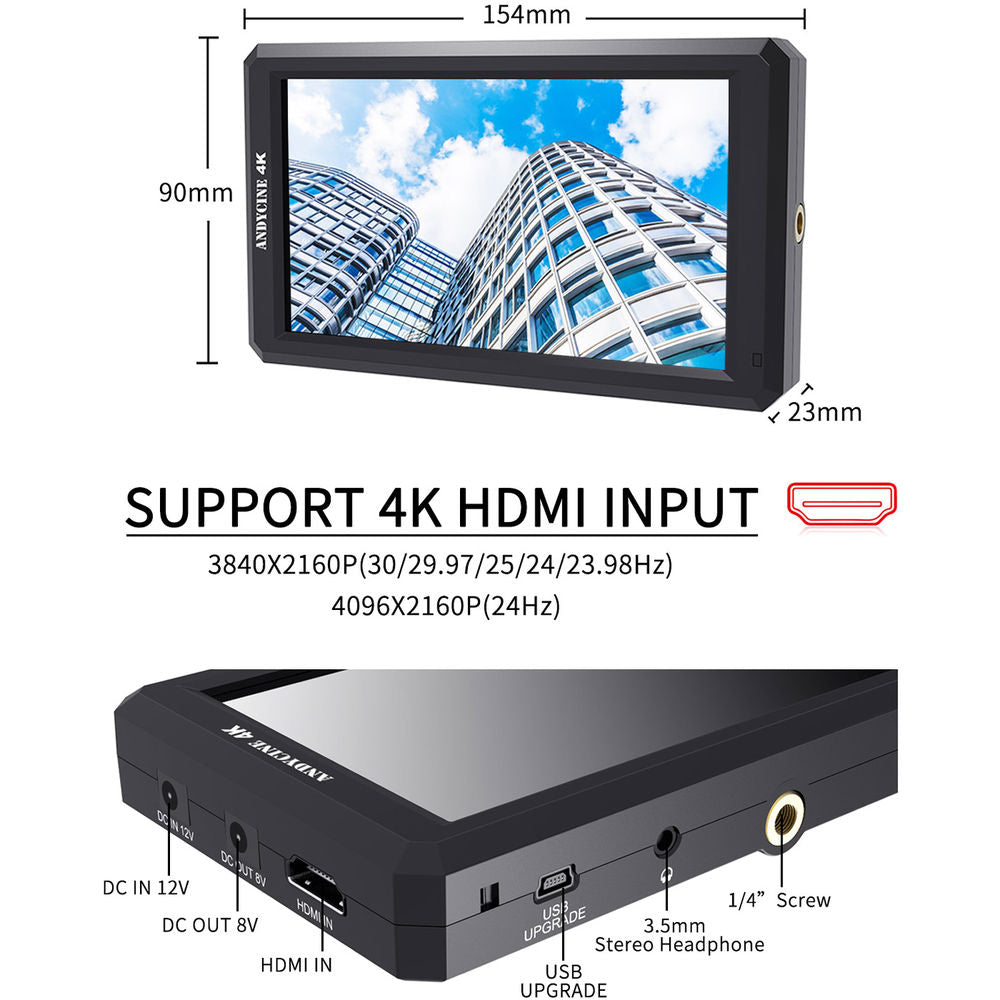

ANDYCINE A6 Specs
| Panel Type | Unspecified LCD |
| Display Size | 5.7" / 14.5 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | No |
| Video | 1 x HDMI Type A Input |
| Embedded Audio | HDMI |
| Audio | 1 x 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x Barrel Input 1 x Barrel (8 VDC) Output |
| Other I/O | 1 x USB 2.0 (USB Type-B) |
| Card Slot | None |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
| Pulldown Conversion | None |
| Camera Trigger | None |
| DC Input Power | 12 VDC |
| Battery Type | 1 x L-Series |
| Mounting | 2 x 1/4"-20 Female |
| Package Weight | 1.49 lb |
| Box Dimensions (LxWxH) | 7.4 x 4.9 x 4.2" |
