Description
Analog Way Pulse 4K Overview

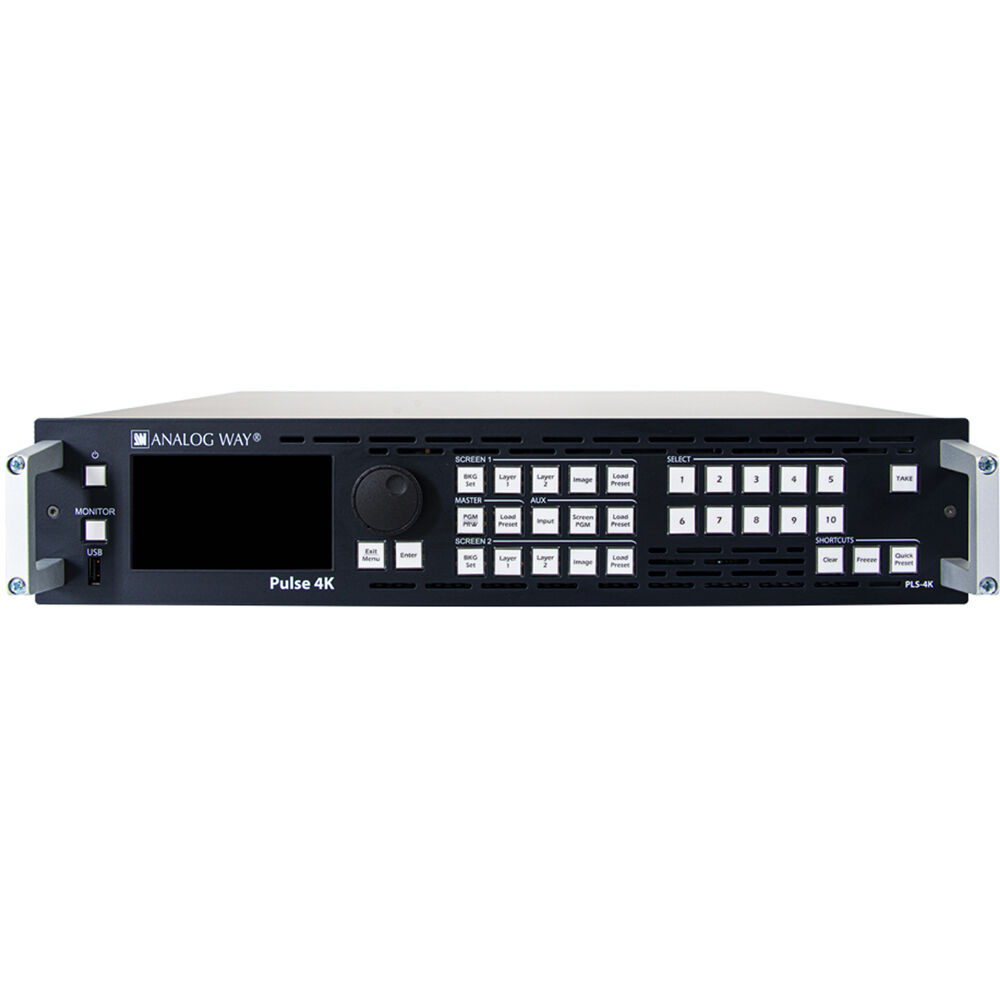

The Pulse 4K 10-Input Multi-Layer Mixer & Seamless Switcher from Analog Way offers powerful 4K60 multi-layer mixing and switching in a 2 RU rack-mountable chassis with ten inputs, which include eight 4K60 and two 2K60 inputs with selectable HDMI and SDI connectors. Two mirrored 4K60 outputs are configurable as program and aux options or as two independent program outputs when switching from mixing to matrix mode. A dedicated multiview output with resizable widgets that include clocks and timers allows monitoring of all inputs as well as preview and program. Connectivity options on the unit support HDMI 2.0, DP1.2, and 12G-SDI 4K signals, and a full-featured 480 x 272 color LCD display augments the front panel design.
Seamless crossfading supporting transitions and effects is executable on all live sources and the unit's ultra-low latency 4K60 10-bit 4:4:4 image processing prowess is complemented with support for HDR and HDCP 1.4/2.2 compatibility, making the Pulse 4K an invaluable mixing and matrix switching solution for both fixed installations and live events. RTMP-based IP streaming of any input or output is possible at resolutions up to 720p30 and live video thumbnails are visible on GUI for instant monitoring. Up to four still images may be accessed for the foreground layer and four concurrent images for the background with alpha-channel support, derived from an integrated still image library that stores up to 50 stills.
The Pulse 4K provides advanced audio processing and dynamic routing for up to eight-channel embedded audio originating on the HDMI 2.0, DisplayPort 1.2, and 12G-SDI inputs and eight channels per active output. An optional Dante and analog audio card with dual redundancy Ethernet ports expands audio support to 32 x 32 channels at 48 kHz. A dedicated BNC loop connector provides genlock, blackburst, and tri-level sync functionality, and EDID management is fully supported.
- Live monitoring of inputs and program on the color LCD display
- 200 user-definable screen memories and 50 master memories
- Dedicated BNC with loop for genlock, blackburst, and tri-level sync
- I/O connector status LEDs for easy troubleshooting
- USB Type-A host connector for firmware update and configuration import/export
- Fully functional simulator for offline configuration and practice
- Gigabit Ethernet via RJ45
- Compatible with Companion and Universe control solutions
- RTMP/RTMPS IP Streaming of inputs, outputs, or multiviewer
- Compatible with various web video platforms, including YouTube and Facebook
- Compatible with local clients, such as OBS software
- Compliant with HDR10 and HLG
- Built-in SDR/HDR converters
- Multiple transition effects
- Layer effects, including horizontal/vertical flip, transparency, crop, and mask
- Color effects, including black and white, negative, sepia, and solarize
- Supported color spaces: BT.601, BT.709, and BT.2020
- Web RCS: Onboard intuitive web-based user interface
- Multi-file download/upload via Web RCS
In the Box
- Analog Way Pulse 4K 10-Input Multi-Layer Mixer & Seamless Switcher
- Power Supply
- Web RCS Software
- Rackmount Kit
- Ethernet Cross-Cable
Analog Way Pulse 4K Specs
| Available M/E Layers | 4 M/E |
| Effect Types | DVE, Transition, Chroma Key, Alpha Key |
| Graphics Memory | 50 Images (Total) |
| Audio Mixing | 8-Channel Mixing |
| Switching Type | Pushbutton, Software |
| Latency | 16 ms |
| Processing Resolution | DCI 4K at 60 |
| Color Processing | 12-Bit 4:2:2 10-Bit 4:4:4 10-Bit 4:2:2 8-Bit 4:4:4 |
| Audio Processing | 48 kHz |
| Number of Video Input Sources | 10 |

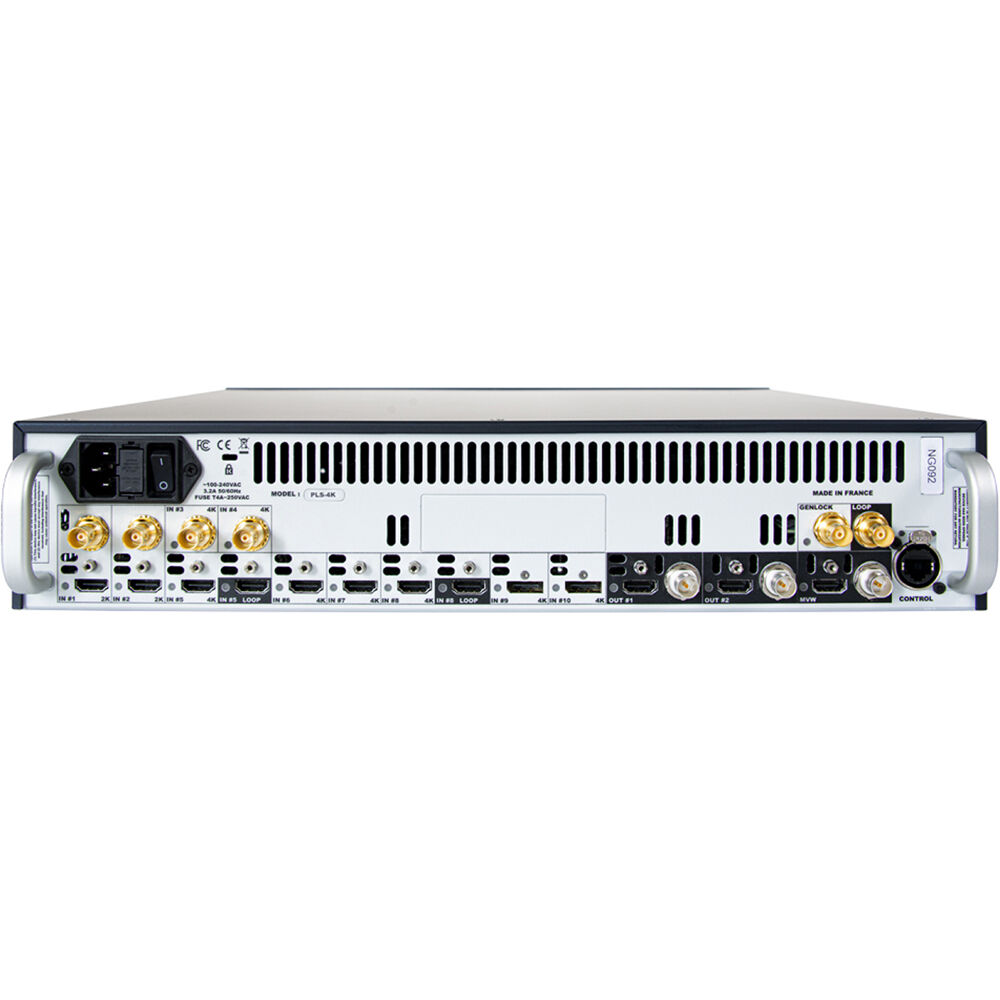

| Video Inputs | 4 x HDMI (HDMI 2.0) Female 2 x HDMI (HDMI 1.4) Female 2 x DisplayPort (DisplayPort 1.2) Female 2 x BNC (3G-SDI / 6G-SDI / 12G-SDI) Female |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2) DCI 4K up to 60 fps DisplayPort (10/12-Bit 4:4:4/4:2:2) DCI 4K up to 60 fps SDI (10-Bit 4:2:2) DCI 4K up to 60 fps |
| Embedded Audio Input | HDMI: 8-Channel (per Input) SDI: 8-Channel (per Input) |
| Video Outputs | 2 x HDMI (HDMI 2.0) Female 2 x BNC (3G-SDI / 6G-SDI / 12G-SDI) Female 1 x HDMI Female (Preview) 1 x BNC Female (Preview) 1 x BNC Female (Loop Output) |
| Output Video Format | HDMI (8/12-Bit 4:4:4/4:2:2) DCI 4K up to 60 fps SDI (10-Bit 4:2:2) DCI 4K up to 60 fps |
| Embedded Audio Output | HDMI: 8-Channel (per Output) SDI: 8-Channel (per Output) |
| Multiview Output | Yes |
| Other I/O | 1 x BNC Blackburst, Genlock, Sync 1 x RJ45 Control 1 x USB-A Firmware Input/Output |
| HDCP Support | Version 2.2 |
| IP Video | H.264: 1280 x 720 at 30p (6 Mb/s) Encoding |
| IP Audio | AAC: Encoding |
| Transport Protocols | RTMP, RTMPS, TCP/IP |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Power I/O | 1 x IEC C14 Input |
| Power Consumption | 80 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% (Non-Condensing) |
| Certifications | IEC 62368-1, UL 62368-1, EN 62368-1, CSA22.2#62368-1, UL E359143, EN55032, EN61000, FCC Part15, ICES *as per Manufacturer |
| Rack Form Factor | 2 RU |
| Dimensions | 19 x 18.66 x 3.46" / 48.3 x 47.4 x 8.79 cm |
| Weight | 16.75 lb / 7.6 kg |
