Description
Analog Way DP12-OPT Overview

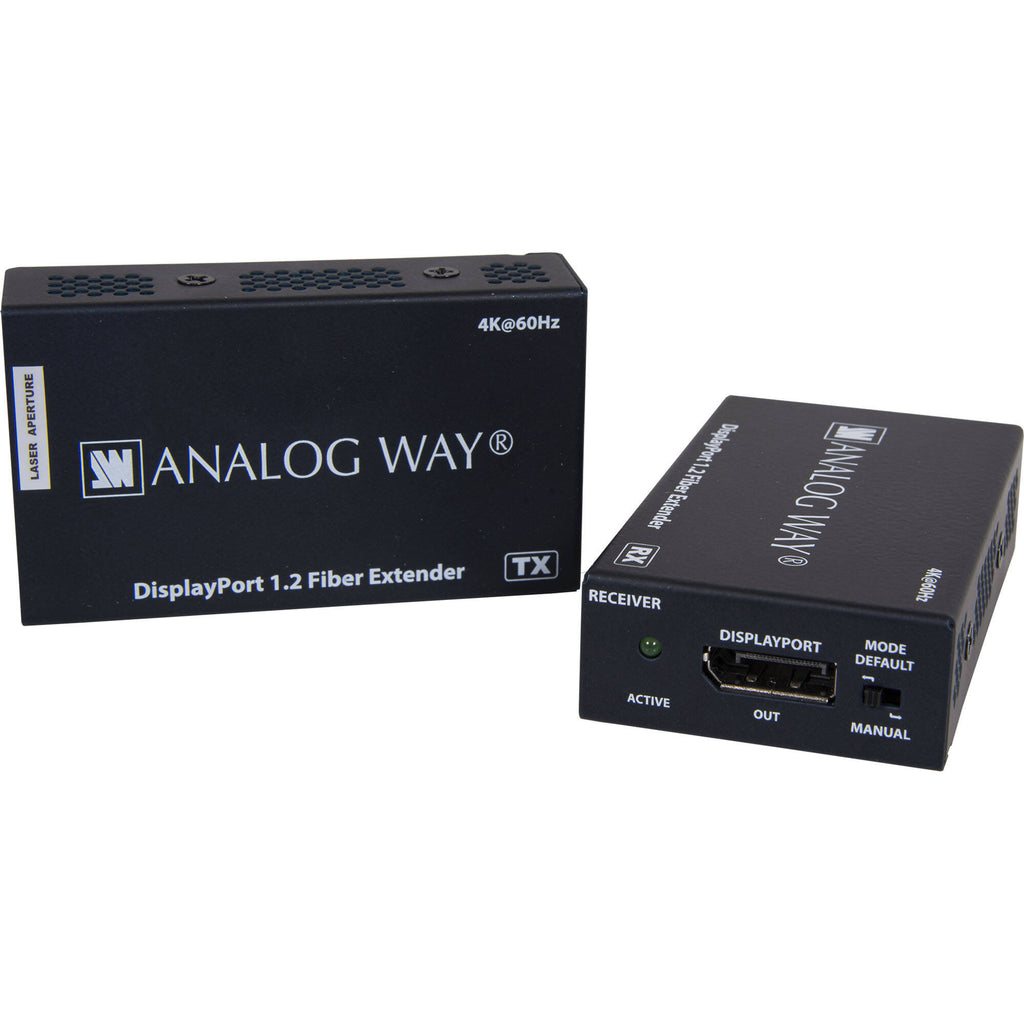

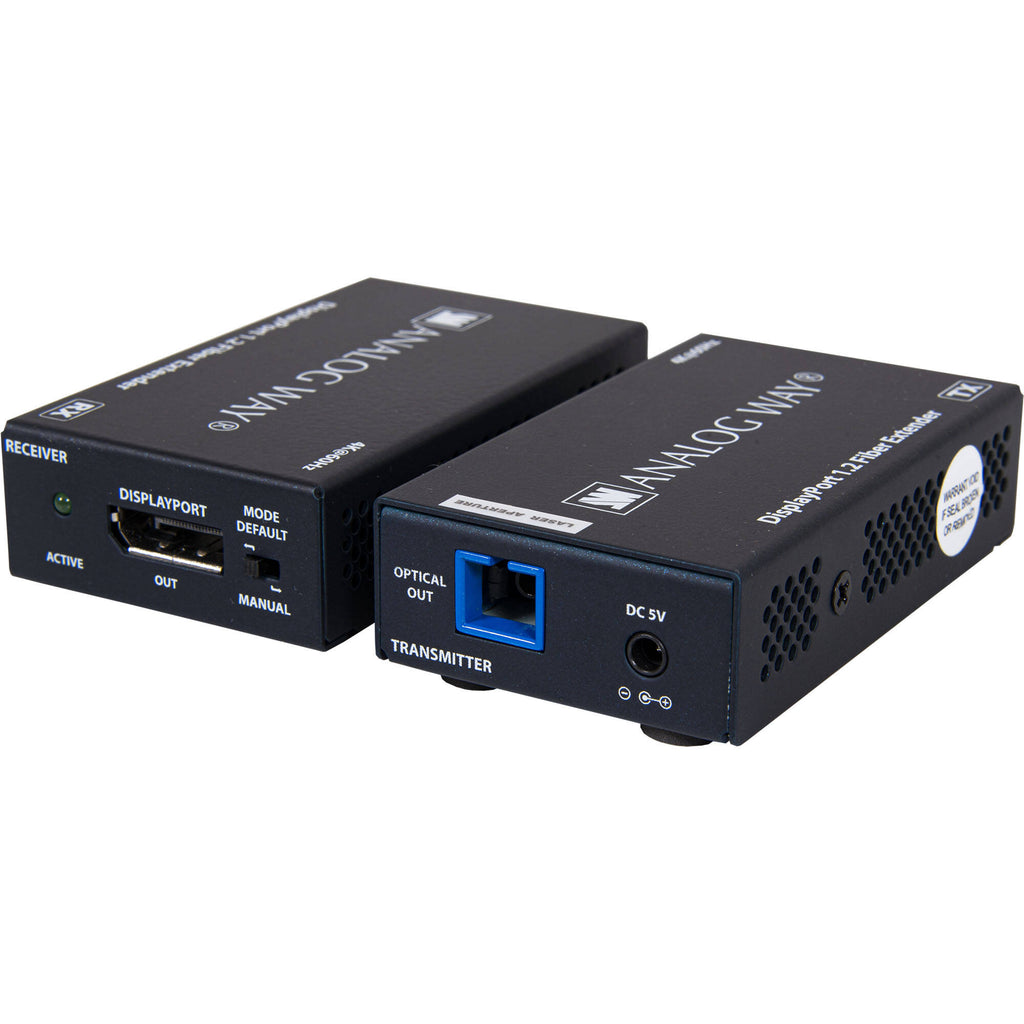

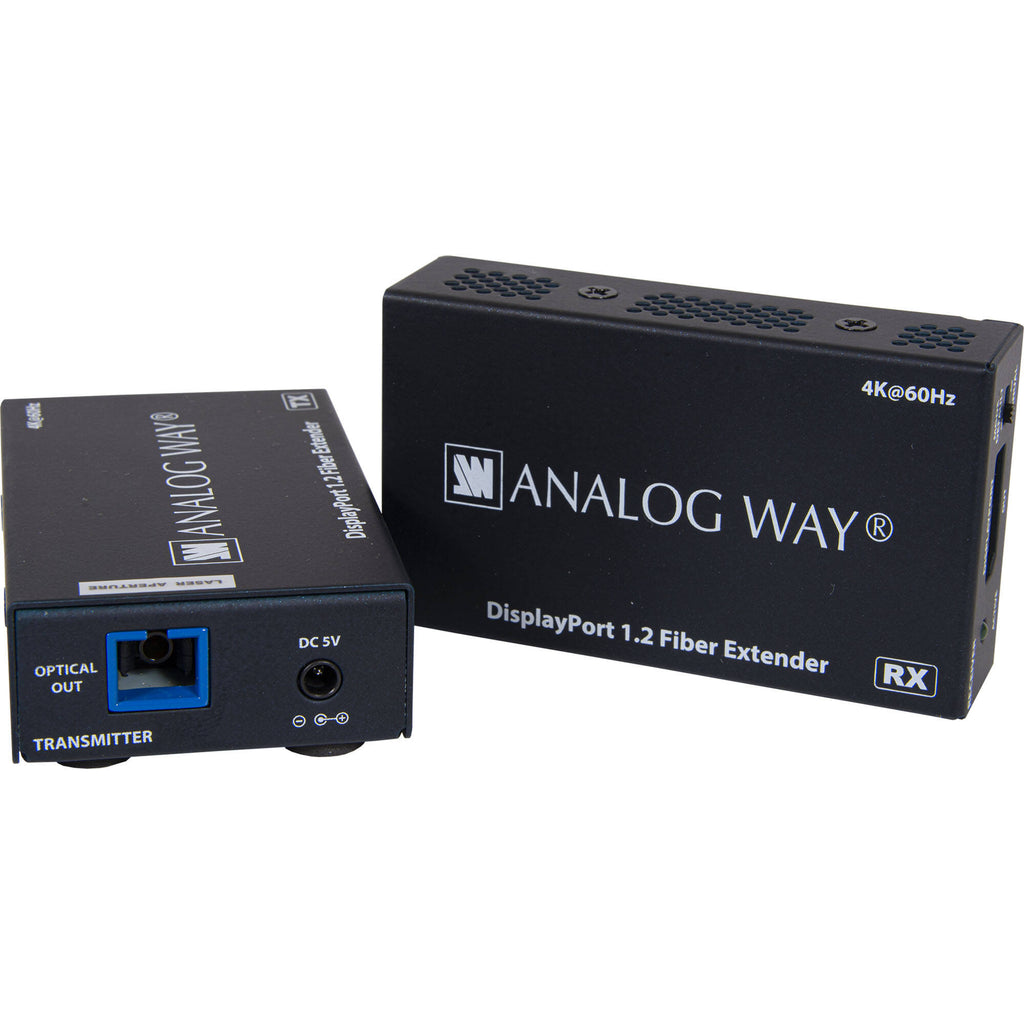

The Analog Way EXT-DP12-OPT DisplayPort 1.2 Over Fiber Extender is a fiber optical extender (transmitter and receiver kit) providing DisplayPort uncompressed signal extension to a range of 655' over one single SC multi-mode fiber. The EXT-DP12-OPT extender supports real 4K (3840x2160 or 4096x2160@60Hz) resolution and a video bandwidth up to 21.6 Gbps. Its compact design makes it ideal to fit in various installation environments or live events.
Features
- Compatible with DisplayPort 1.2 standards
- Up to 655' over one SC multimode fiber (OM3)
- Uncompressed video up to 21.6 Gbps
- Support formats up to 4K@60Hz 4:4:4
- High Frame Rate up to 2560x1440@144Hz 4:4:4 8-bit
- Compatible with DPCD (DisplayPort Configuration Data)
- Compatible with HDCP 2.2
- Compatible with EDID standards for carrying HDR signals
- Compact design
- Status LED for easy troubleshooting
- Plug-and-play operation (no software required)
- Supports up to 8 embedded audio channels
- No additional latency
In the Box
- Analog Way DisplayPort 1.2 Over Fiber Extender
- Transmitter
- Receiver
- 2 x DisplayPort Short Copper Cable
- 2 x 5 VDC Power Supply
- Limited 1-Year Manufacturer Warranty
Analog Way DP12-OPT Specs
Transmitter Interfaces
| Inputs |
1 x DisplayPort (DisplayPort 1.2)
|
| Outputs |
1 x SC
|
Receiver Interfaces
| Inputs |
1 x SC
|
| Outputs |
1 x DisplayPort (DisplayPort 1.2)
|
Standards
| HDCP Support |
, Version 2.2
|
| EDID Support |
Yes
|
Transmission
| Max Transmission Distance |
655' / 199.6 m (via Multi-Mode Fiber)
|
| Supported Cable Types |
Multimode Fiber
|
Power
| Transmitter Power Connector |
1 x Barrel Input
|
| Receiver Power Connector |
1 x Barrel Input
|
General
| Transmitter Dimensions |
3.19 x 1.87 x 0.83" / 81.03 x 47.5 x 21.08 mm
|
| Receiver Dimensions |
3.19 x 1.87 x 0.83" / 81.03 x 47.5 x 21.08 mm
|
| Transmitter Weight |
4.8 oz / 136 g
|
| Receiver Weight |
4.8 oz / 136 g
|
