Description
Product Overview

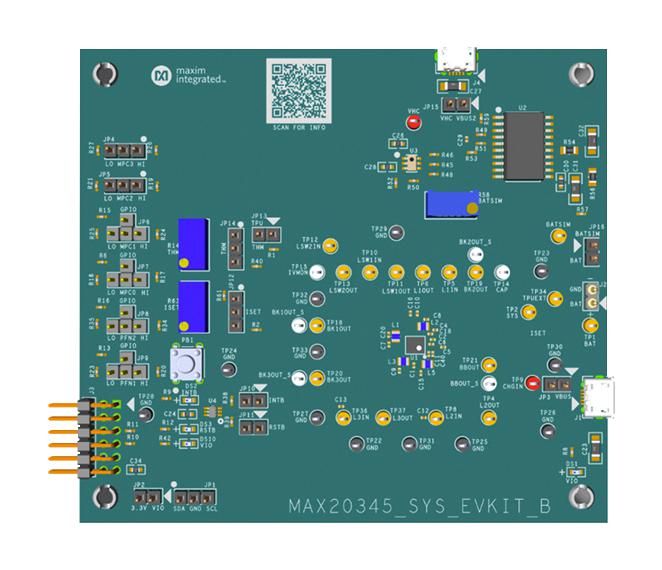

MAX20345EVSYS# is a MAX20345 evaluation system (EV system). It is fully assembled and tested circuit board that demonstrates the MAX20345 ultra low-power wearable power management integrated circuit (PMIC). The MAX20345 is a battery-charge-management solution ideal for low-power wearable applications. The device includes voltage regulators such as bucks, boost, buckboost, and linear regulators, as well as a battery management solution with battery seal, linear battery charger, and smart power path selector. The EV system has the MAX20345AEWN+ installed. The device is configurable through an I2C interface that allows for programming various functions and reading the device status. The application sends commands to the MAXPICO2PMB USB-to-I2C adapter board to configure the MAX20345. Suitable for IoT and wearable devices applications.
- USB-power option
- Flexible configuration
- On-board battery simulation
- Sense test point for output-voltage measurement
- Windows® 8/Windows 10-compatible graphical user interface (GUI) software
Contents
MAX20345-SYS-EVKIT-B board, MAXPICO2PMB# board, Two USB A to USB micro-B cables.
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | MAX20345EVSYS# |
| Quantity | Each |
| Technical Data Sheet EN |  |
