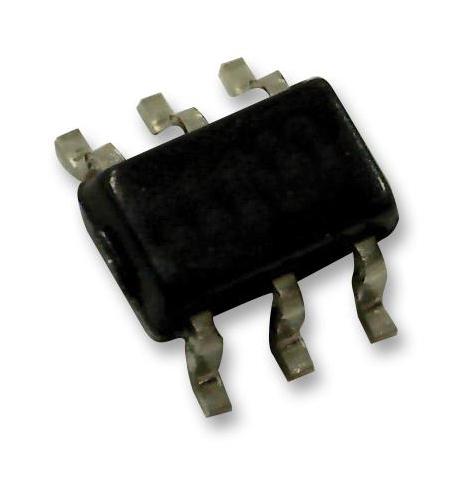

ANALOG DEVICES LTC6908IS6-1#TRMPBF Spectrum Oscillator, 50kHz to 10MHz, CMOS, 40 ppm, TSOT-23, 5 V, LTC6908-1 Series

LTC®6908 is an easy-to-use precision oscillator. The oscillator frequency is programmed by a single external resistor (RSET) and spread spectrum frequency modulation (SSFM) can be activated for improved electromagnetic compatibility (EMC) performance. The LTC6908 operates with a single 2.7V to 5.5V supply and provides rail-to-rail, 50% duty cycle square wave outputs. A single resistor from 10K to 2M is used to select an oscillator frequency from 50KHz to 10MHz (5V supply). The oscillator can be easily programmed using the simple formula: fOUT =10MHz*10K/RSET. The LTC6908�s SSFM capability modulates the output frequency by a pseudorandom noise (PRN) signal to decrease the peak electromagnetic radiation level and improve EMC performance. The amount of frequency spreading is fixed at ±10% of the centre frequency. Applications include switching power supply clock reference, portable and battery-powered equipment, precision programmable oscillator and charge pump driver.

• Complementary outputs (0°/180°)
• ±10% frequency spreading, 400µA supply current typical (V+ = 5V, 50KHz)
• Frequency error ?1.5% max (TA = 25°C, V+ = 3V), ±40ppm/°C temperature stability
• Fast start-up time: 260µs typical (1MHz), outputs muted until stable
• Operates from a single 2.7V to 5.5V supply
• Duty cycle of 50% typical (no modulation, 250KHz ? fOUT ? 1MHz)
• 6-lead plastic TSOT-23 package, -40°C to 85°C temperature range
