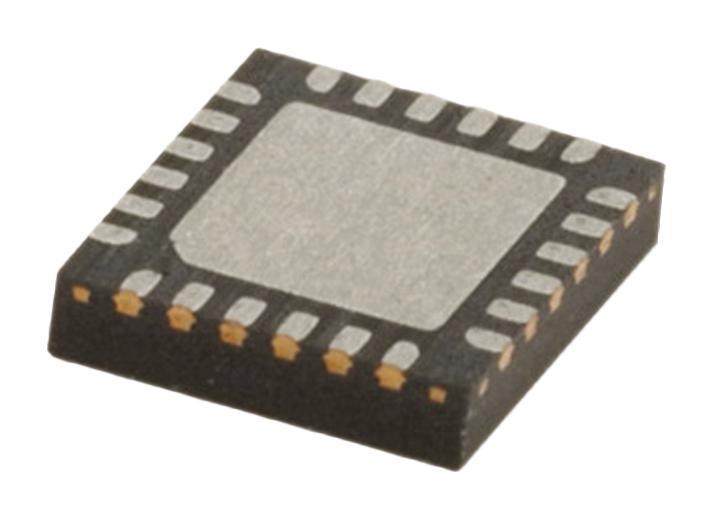

ANALOG DEVICES LTC2936IUFD#PBF Voltage Supervisor, 6 Monitor, QFN-EP, 3.4 V to 13.9 V Supply

LTC2936IUFD#PBF is an EEPROM configurable voltage supervisor which can simultaneously monitor up to six power supply voltage inputs. Each voltage detector offers I²C programmable overvoltage/undervoltage thresholds in various ranges and increments and a dedicated comparator output. Two general purpose inputs (GPI) can be configured as programmable manual reset (active-low MR), UV disable (active-low UVDIS), margin (active-low MARG), Write Protect (active-low WP) or auxiliary comparator (AUXC) inputs. Three general purpose pins (GPIO) can be configured for input or output operation. When configured as an input, a GPIO pin can be mapped to any other GPIO configured as output. The GPIO pins can also be configured as active-low ALERT or fault outputs. Faults can be configured with programmable delay-on-release times. Output type and polarity are also configurable. Applications include high availability computer systems, network servers, telecom equipment, data storage systems.

• Supervises 6 power supplies, I²C adjustable UV and OV trip points
• I²C/SMBus interface, internal EEPROM, six comparator outputs
• Three range settings per channel, two general purpose inputs
• Three general purpose inputs/outputs, programmable output delays
• Vn comparator response time is 7.5µs typical at (20LSB of overdrive)
• 256 programmable thresholds per channel
• VPWR supply current is 0.7mA maximum
• Input pulse width is 5µs minimum at (active low)
• Operating temperature range from -40°C to 85°C
• 24-lead plastic QFN package
