Description
Product Overview
LTC®1261 is a switched-capacitor voltage inverter designed to provide a regulated negative voltage from a single positive supply. It will supply up to 12mA output current with guaranteed output regulation of 5%. This includes an open-drain REG output which pulls low when the output is within 5% of the set value. Typical applications are GaAs FET bias generators, negative supply generators, battery-powered systems, single supply applications.
- Regulated negative voltage from a single positive supply
- REG pin indicates output is in regulation
- Requires only three or four external capacitors
- Reference voltage range from 1.2 to 1.28V (0°C ? TA ? 70°C, VCC=3V to 6.5V)
- Internal oscillator frequency is 550KHz typical
- Power efficiency is 65% typical
- Adjust pin current is 1µA max (VADJ=1.24V, 0°C ? TA ? 70°C, VCC=3V to 6.5V)

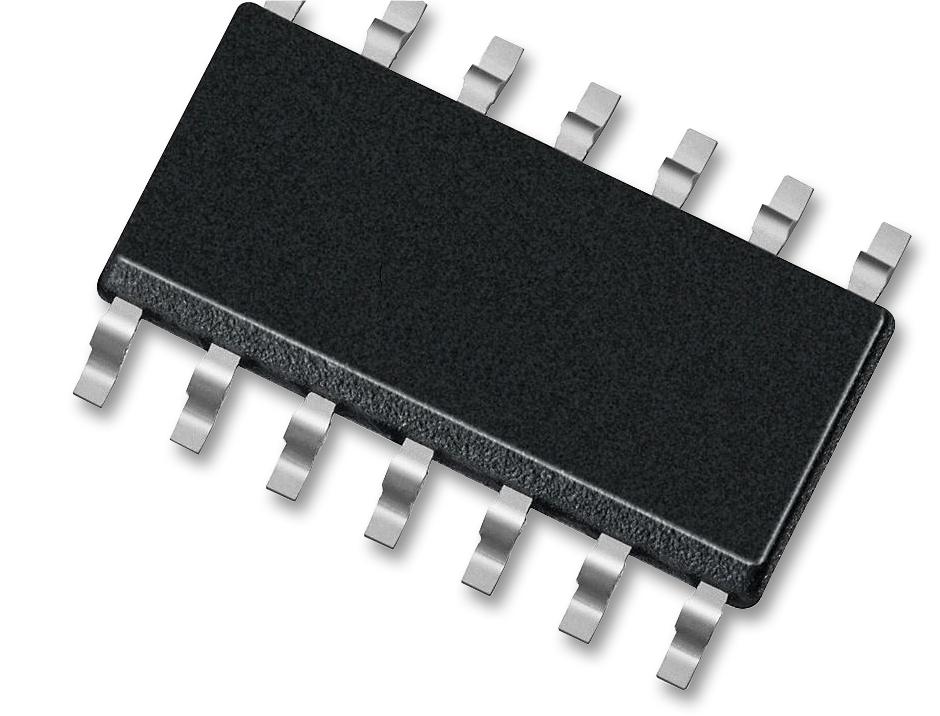

- 14-lead plastic S0 package
- Temperature rating range from 0°C to 70°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LTC1261CS#PBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
