ANALOG DEVICES LT3033IUDC#PBF LDO Voltage Regulator, Adjustable, 0.95 V to 10 V in, 0.2 V to 9.7 V out, 3 A out, QFN-EP-20

LT3033 is a very low dropout voltage (VLDO�) linear regulator. It is ideal for low input voltage to low output voltage applications, providing comparable electrical efficiency to a switching regulator. This device optimizes stability and transient response with low ESR ceramic output capacitors as small as 10?F. Other features include programmable current limit, an output current monitor and a power good flag to indicate output voltage regulation. In shutdown, quiescent current typically drops to 22?A. Internal protection circuitry includes reverse-battery protection, current limiting with foldback, thermal limiting with hysteresis and reverse current protection. It is widely used in application such as high efficiency linear regulators, battery-powered systems, logic supplies, post regulator for switching supplies, wireless modems, FPGA core supplies etc.

• Single supply VIN range is 0.95V to 10V
• Dropout voltage is 95mV typical
• Output current is 3A, adjustable output voltage is 200mV to 9.7V
• Single capacitor soft-starts reference and lowers output noise
• 0.075% typical load regulation from 1mA to 3A
• Quiescent current is 1.9mA typical
• Power good (PWRGD) flag (status valid in shutdown), current limit protection with foldback
• Programmable current limit, output current monitor is 2650V typical
• Operating temperature is -40°C to 125°C

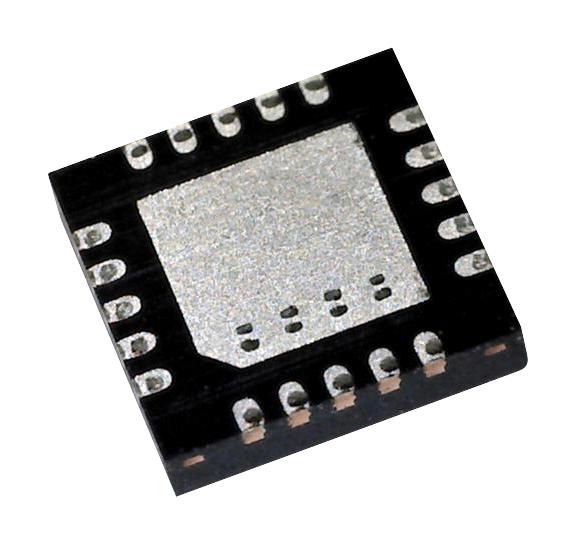

• Package style is 20-lead plastic QFN
