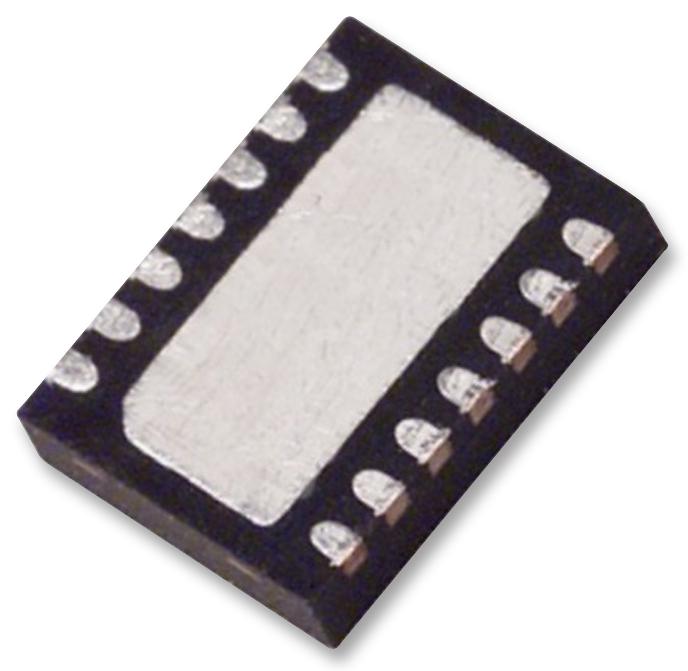

ANALOG DEVICES LT3032IDE-15#PBF LDO Voltage Regulator, Fixed, 2.3 to 20V in, 300mV Drop, 15V / 0.15A Out, DFN-EP-14

LT3032IDE-15#PBF is a dual, low-noise, positive and negative low dropout voltage linear regulator. Each regulator delivers up to 150mA with a typical 300mV dropout voltage. Operating with low quiescent currents (30µA operating and <lt/>3µA in shutdown) and well-controlled in dropout, it's an excellent choice for battery-powered circuits. Another key feature of the LT3032 is its low output noise. By adding an external 10nF bypass capacitor to each regulator, output noise can be reduced to 20µVRMS/30µVRMS over a 10Hz to 100KHz bandwidth. The LT3032 remains stable with minimum output capacitors of 2.2µF and does not require the addition of ESR, which is common with other regulators. Internal protection circuitry includes reverse-output protection, current limiting, and thermal limiting. Applications for the LT3032 encompass battery-powered instruments, bipolar power supplies, and low-noise power supplies.

• Wide input voltage range from ±2.3V to ±20V
• No protection diodes needed, stable with 2.2µF output capacitors
• Stable with ceramic, tantalum or aluminium capacitors
• Starts into reverse output voltage, current limit and thermal limit
• Output voltage noise (10Hz to 100KHz) is 20µVRMS typ at (COUTP = 10µF, CBYPP 0.01µF, ILOAD = 150mA)
• Regulated output voltage is 15V at VINP = 15.5V, ILOAD = 1mA, TA = 25°C
• Dropout voltage is 0.09V typical at (ILOAD = 1mA)
• Ripple rejection is 68dB typ at (VINP to VOUTP = 1.5V (average), ILOAD = 100mA)
• Operating temperature range from -40°C to 125°C
• 14-lead plastic DFN package
