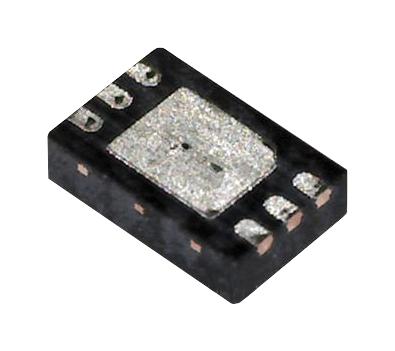

ANALOG DEVICES LT3009IDC-5#TRMPBF LDO Voltage Regulator, Fixed, 1.6 to 20V in, 280mV Drop, 5V / 0.02A Out, DFN-EP-6, -40 to 125 °C

LT3009IDC-5#TRMPBF is a LT®3009 series, micropower, low dropout voltage linear regulator. Capable of supplying 20mA of output current with a dropout voltage of 280mV, this device exhibits a no-load quiescent current of 3?A. The ground pin current remains below 5% of the output current as the load increases. During shutdown, the quiescent current drops to less than 1?A. This regulator is optimized for stability and transient response with low ESR ceramic capacitors, requiring a minimum of only 1?F. Unlike many other regulators, it does not necessitate the addition of equivalent series resistance. Internal protection circuitry includes current limiting, thermal limiting, reverse-battery protection, and reverse current protection. Ideal for applications requiring moderate output drive capability combined with ultralow standby power consumption. Applications include low current battery-powered systems, keep-alive power supplies, remote monitoring, utility meters, and hotel door locks.

• Input voltage range from 1.6V to 20V, thermal limit protection
• Current limit protection, reverse-battery protection
• Stable with low ESR, ceramic output capacitors (1?F minimum)
• Quiescent current is 3?A typical at (ILOAD = 0?A, TJ = 25°C)
• Output voltage noise is 150?VRMS typical at (COUT = 1?F, ILOAD = 20mA, BW = 10Hz to 100KHz)
• Quiescent current in shutdown is <1?A max at (VIN = 6V, VSHDN = 0V)
• Current limit is 60mA typical at (VIN = 20V, VOUT = 0, TJ = 25°C)
• Ripple rejection is 56dB typical at (TJ = 25°C)
• 5V regulated voltage at (VIN = 5.5V, ILOAD = 100?A, TJ = 25°C)
• Operating junction temperature range from -40°C to 125°C, 6-lead plastic DFN package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
