Description
Product Overview
LT1641-2 is a positive high voltage hot swap controller. It allow a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, the board supply voltage can be ramped up at a programmable rate. The chips feature a programmable analogue foldback current limit circuit. If the chips remain in current limit for more than a programmable time, the N-channel pass transistor is set to automatically restart after a time-out delay. The PWRGD output indicates when the output voltage, sensed by the FB pin, is within tolerance. The ON pin provides programmable undervoltage lockout. It is widely used in application such as hot board insertion, electronic circuit breaker, industrial high side switch/circuit breaker, 24V/48V industrial/alarm systems etc.
- Supply voltage is 9V to 80V
- High side drive for an external N-channel
- User programmable supply voltage power-up rate
- Overvoltage protection
- Supply current is 2mA typ
- Undervoltage lockout is 8.3V
- Operating temperature is �40°C to 85°C

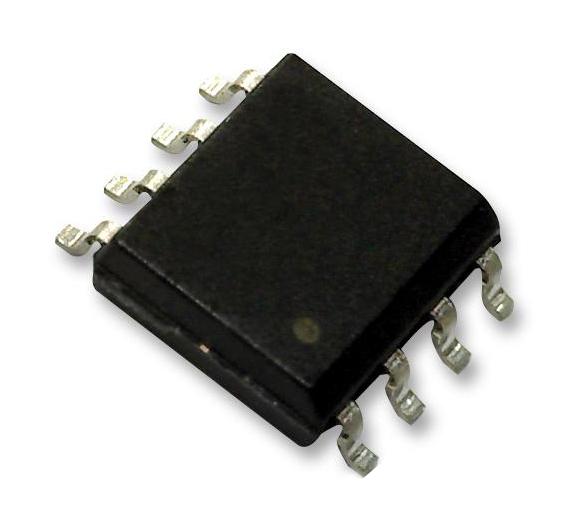

- Packaging style is 8-lead plastic SO
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LT1641-2IS8#TRPBF |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1198.74 |
| 3-5 | ₹ 1186.5 |
| 5-10 | ₹ 1162.04 |
| 10+ | ₹ 1137.58 |
Bulk discount will be automatically applied during checkout based on quantity.
