ANALOG DEVICES LT1584IT-3.3#PBF LDO Voltage Regulator, Fixed, 2.5 to 7V in, 1.25 V Drop, 3.3V / 7A Out, TO-220-3, -40 to 125 °C

LT1584IT-3.3#PBF is a low dropout three-terminal regulator. The design has been optimized for low-voltage applications where transient response and minimum input voltage are critical. It has a lower dropout voltage and faster transient response. These improvements make it ideal for low-voltage microprocessor applications requiring a regulated 2.5V to 3.6V output with an input supply below 7V. The current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures. Applications include Pentium� processor supplies, PowerPC� supplies, other 2.5V to 3.6V microprocessor supplies, low-voltage logic supplies, battery-powered circuitry, and post-regulator for switching supplies.

• Fast transient response, trimmed current limit
• On-chip thermal limiting, 3.3V output voltage
• Temperature stability is 0.5% typical at (TA = 25°C)
• Long-term stability is 0.03% typical at (TA = 125°C, 1000 Hrs.)
• RMS output noise is 0.003% typical at (TA = 25°C, 10Hz ? f ? 10KHz)

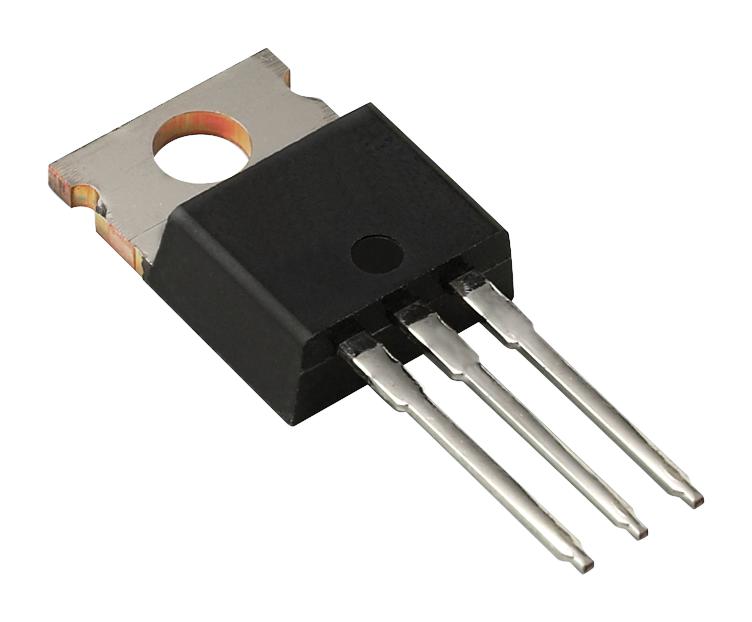

• 3-lead plastic TO-220 package
• Operating junction temperature range from -40°C to 125°C (control section)

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
