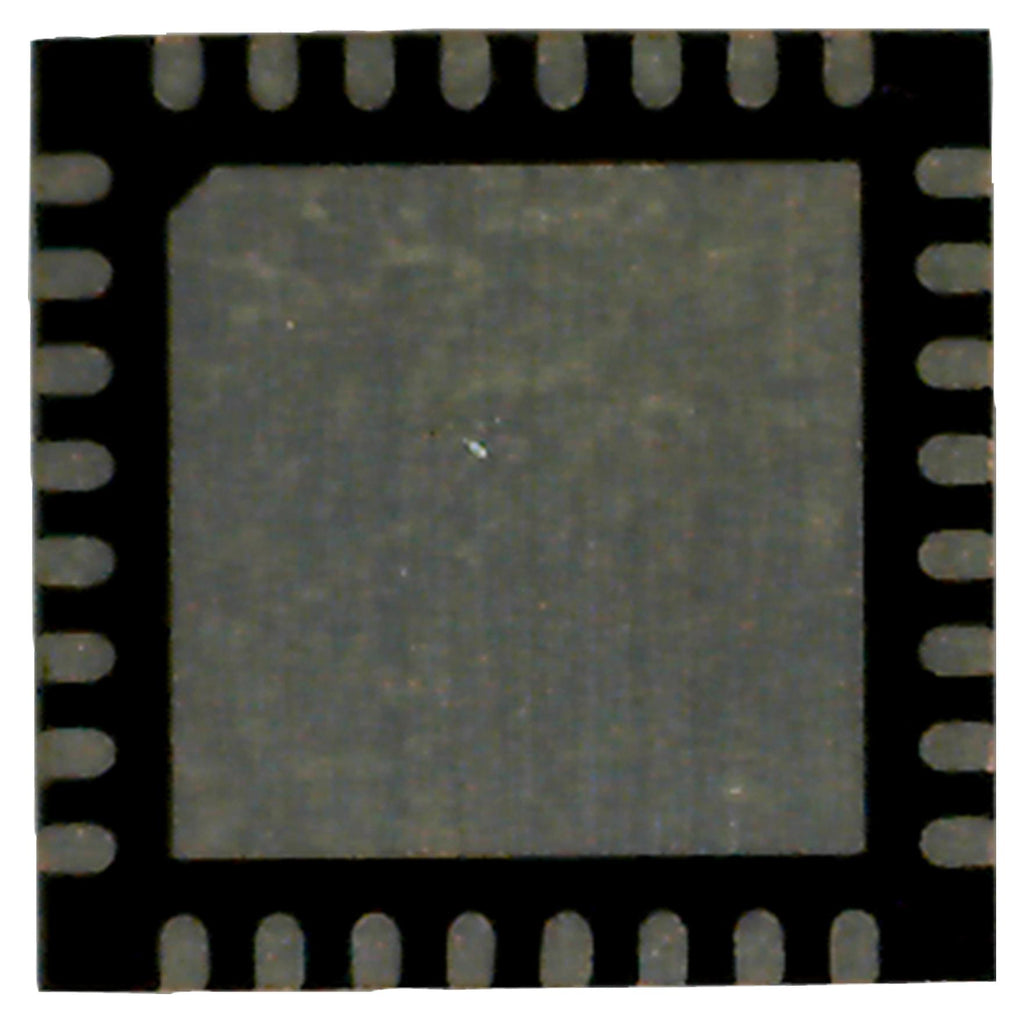

ANALOG DEVICES HMC514LP5E Oscillator, Voltage Controlled, 11.17 to 12.02GHz, QFN, SMD, 5mm x 5mm, 3V, ABLNO Series

HMC514LP5E is a GaAs InGaP heterojunction bipolar transistor (HBT) MMIC VCOs. The HMC514LP5E integrate resonators, negative resistance devices, varactor diodes and feature half frequency and divide-by-4 outputs. The VCO�s phase noise performance is excellent over temperature, shock, and process due to the oscillator�s monolithic structure. Power output is +7dBm typical from a +3V supply voltage. The prescaler function can be disabled to conserve current if not required. Applications include VSAT radio, point to point/multipoint radio, test equipment & industrial controls, military end-use.

• No external resonator needed, frequency range from 11.17 to 12.02GHz
• Power output is +10dBm maximum at (RFOUT, TA = +25°C)
• SSB phase noise is -110dBc/Hz typical at (100KHz offset, Vtune= +5V at RFOUT)
• Tune voltage range from 2V to 13V
• Supply current is 275mA typical at (TA = +25°C)
• Output return loss is 2dB typical at (TA = +25°C)
• Frequency drift rate is 1.2MHz/°C typical at (TA = +25°C)
• Tune port leakage current (Vtune= 13V) is 10µA maximum at (TA = +25°C)
• Operating temperature range from -40°C to +85°C
• 32-lead SMT package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
