Description
Product Overview

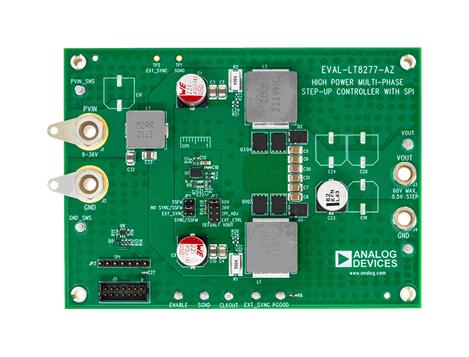

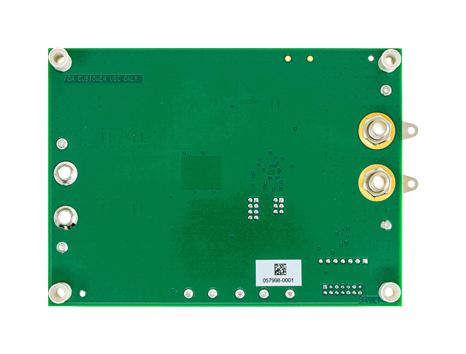

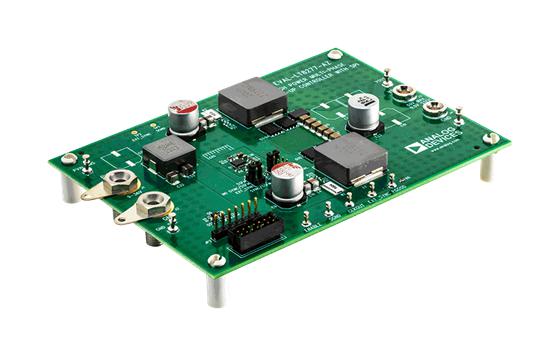

EVAL-LT8277-AZ is an evaluation circuit to evaluate dual-phase nonsynchronous high-power step-up converter featuring the LT8277. It regulates the output voltage up to 60V and drives up to a 3A load at 60V when the VIN is between 9V and 36V. The EVAL-LT8277-AZ runs at 200KHz switching frequency with the ability to turn on spread spectrum frequency modulation (SSFM) for reduced EMI emission. It can run with or without SPI communications. Multiple EVAL-LT8277-AZ can be paralleled to deliver more output power. A graphic user interface (GUI) is available when connected to a DC2026C Linduino One demo circuit. The LT8277 is a dual-phase interleaved current mode boost and SEPIC controller. It has a wide input voltage range from 3V to 40V and an adjustable switching frequency between 100KHz and 2MHz.
- Input voltage PVIN range from 9V to 36V
- 200KHz typ switching frequency
- Output voltage range VOUT range from 9 to 60V at set by SPI interface
- 3A max output current IOUT at VIN = 9V, VOUT = 60V
- 92% typ efficiency at VIN = 12V, VOUT = 60V, IOUT = 3A
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-LT8277-AZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 15062.1 |
| 3-5 | ₹ 14908.41 |
| 5-10 | ₹ 14601.02 |
| 10+ | ₹ 14293.63 |
Bulk discount will be automatically applied during checkout based on quantity.
