Description
Product Overview

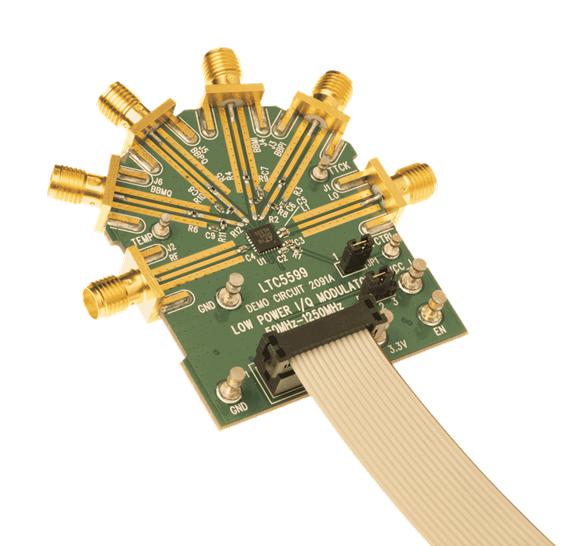

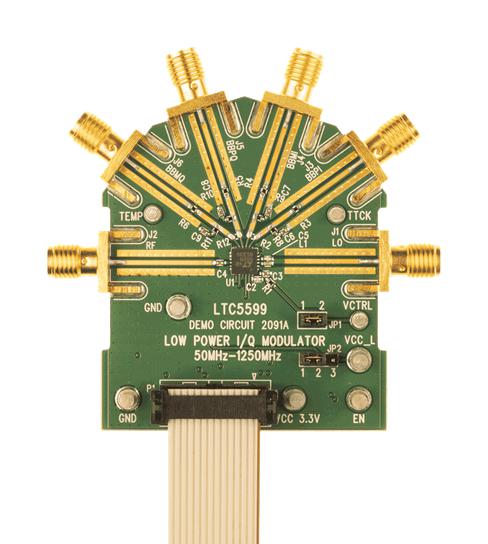

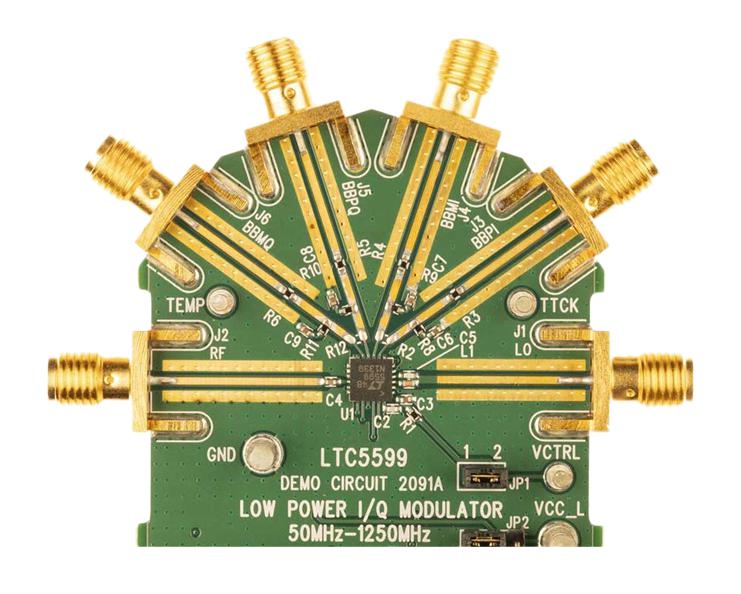

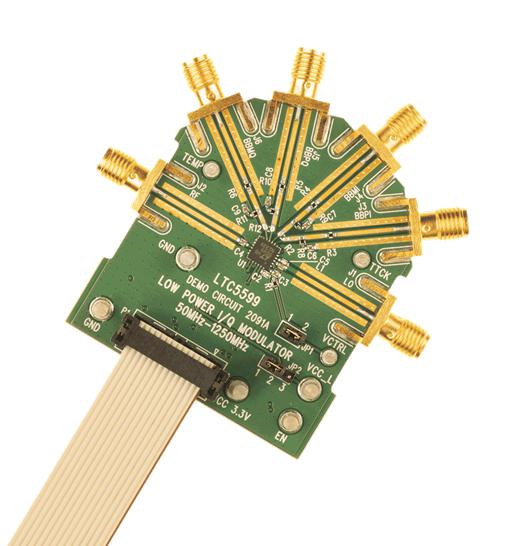

DC2091A is a demonstration circuit 2091A that is optimized for evaluation of the LTC®5599 low-power direct quadrature modulator. The balanced I and Q baseband input ports can be either AC- or DC-coupled to a source with a common mode voltage level of about 1.4V. Fixed LC networks on the LO and RF ports cover a continuous 90MHz to 1300MHz range. The SPI interface controls the supply current, modulator gain, and allows optimization of the LO carrier feedthrough and side-band suppression.
- LTC5599 30MHz to 1300MHz low power direct quadrature modulator
- Supply voltage of 3.8V
- Case operating temperature range from -40°C to 105°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC2091A |
| Quantity | Each |
| Technical Data Sheet EN |  |
