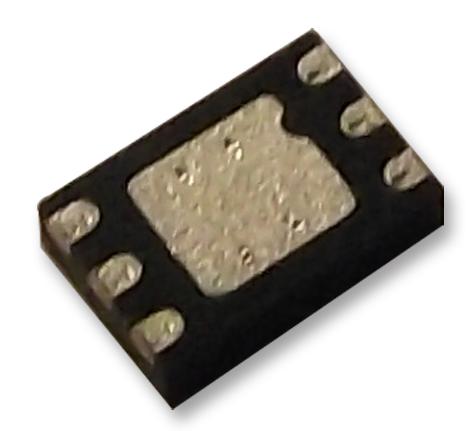

ANALOG DEVICES ADP7182ACPZN-5.0R7 LDO Voltage Regulator, Fixed, -2.7 to -28V in, -5V / -0.2A Out, LFCSP-EP-6

ADP7182ACPZN-5.0R7 is a CMOS, low dropout (LDO) linear regulator that operates from -2.7V to -28V and provides up to -200mA of output current. This high input voltage LDO is ideal for the regulation of high-performance analogue and mixed-signal circuits operating from -27V down to -1.2V rails. Using an advanced proprietary architecture, it provides high power supply rejection and low noise and achieves excellent line and load transient response with a small 2.2?F ceramic output capacitor. The ADP7182 regulator output noise is 18?V rms independent of the output voltage. The enable logic is capable of interfacing with positive or negative logic levels for maximum flexibility. Application includes regulation to noise-sensitive applications, analogue-to-digital converter (ADC) and digital-to-analogue converter (DAC) circuits, precision amplifiers, communications and infrastructure, medical and healthcare, industrial and instrumentation.

• Positive or negative enable logic, stable with small 2.2?F ceramic output capacitor
• Input voltage range from -2.7V to -28V, current-limit and thermal overload protection
• Operating supply current is -33?A typ at (IOUT = 0?A, TA = 25°C)
• Shutdown current is -2?A typ at (EN = GND, TA = 25°C)
• Fixed output voltage accuracy is +1% max at (IOUT = -10mA, TA = 25°C)
• Dropout voltage is -25mA typ at (IOUT = -10mA, TA = 25°C)
• Output noise is 18?V rms typ at (10Hz to 100KHz, VOUT = -1.5V, VOUT = -3V, and VOUT = -5V)
• Power supply rejection ratio is 45dB typ at (1MHz, VIN = -4.3V, VOUT = -3V, TA = 25°C)
• Output voltage is -5V, start-up time is 550?s typ at (VOUT = -5V, TA = 25°Co
• Operating junction temperature range from -40°C to +125°C, 6-lead LFCSP package
