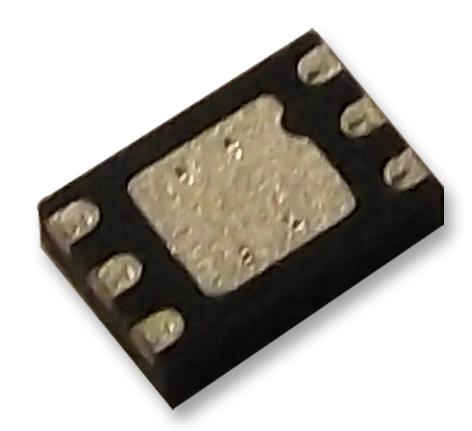

ANALOG DEVICES ADP151ACPZ-2.5-R7 LDO Voltage Regulator, Fixed, 2.2 to 5.5V in, 150mV Drop, 2.5V / 0.2A Out, LFCSP-EP-6, -40 to 125 °C

ADP151ACPZ-2.5-R7 is an ultralow noise, low dropout (LDO) linear regulator. The low 135mV dropout voltage at 200mA load improves efficiency and allows operation over a wide input voltage range. Using an innovative circuit topology, the ADP151 achieves ultralow noise performance without the necessity of a bypass capacitor, making the device ideal for noise-sensitive analogue and RF applications. The ADP151 also achieves ultralow noise performance without compromising the power supply rejection ratio (PSRR) or transient line and load performance. The low 265?A of operating supply current at 200mA load makes the device suitable for battery-operated portable equipment. Applications include RF, voltage-controlled oscillator (VCO), and phase-locked loop (PLL) power supplies, mobile phones, digital cameras, and audio devices, portable and battery-powered equipment, post dc-to-dc regulation, portable medical devices, and automotive applications.

• 2.5V output voltage, start-up-time is 180µs typical at (VOUT = 3.3V, TA = 25°C)
• Current-limit and thermal overload protection, logic controlled enable
• Input voltage range from 2V to 5.5V, no noise bypass capacitor required
• Stable with 1µF ceramic input and output capacitors, internal pull-down resistor on EN input
• Operating supply current is 10µA typical at (IOUT = 0µA, TA = 25°C)
• Shutdown current is 0.2µA typical at (EN = GND, TA = 25°C)
• Output noise is 9µV rms typical at (10Hz to 100KHz, VIN = 5V, VOUT = 3.3V)
• Power supply rejection ratio is 70dB typical at (10KHz, VIN = 3.8V, VOUT = 3.3V, IOUT = 10mA)
• Dropout voltage is 150mV typical at (IOUT = 200mA, TA = 25°C)
• Operating ambient temperature range from -40°C to +125°C, 6-lead LFCSP package
