Description
Product Overview

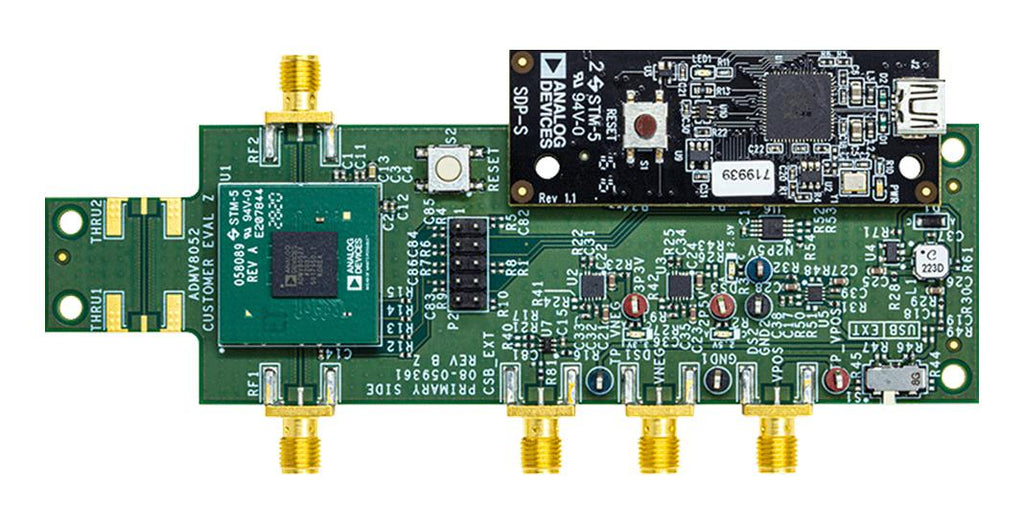

ADMV8052-EVALZ evaluation board is available for evaluating the ADMV8052 digitally tunable, band-pass filter (BPF). The ADMV8052-EVALZ incorporates the ADMV8052 chip, as well as a negative voltage generator, low dropout (LDO) regulators, and an interface to the EVAL-SDP-CS1Z (SDP-S) system demonstration platform (SDP) to allow simple and efficient evaluation. The negative voltage generator and LDO regulators allow the ADMV8052 to be powered by either the 5V USB supply voltage from the PC via the SDP-S or by using two external power supplies. The ADMV8052 is an IC that features a digitally selectable frequency of operation. The chip features three BPFs that span from 30MHz to 520MHz. The chip can be programmed using a 4-wire serial port interface (SPI), and the SDP-S controller allows the user to interface with the SPI of the ADMV8052 through the Analog Devices, Inc., Analysis Control Evaluation (ACE) software.
- Fully featured evaluation board for the ADMV8052
- On-board SDP-S connector for the SPI
- Evaluation using on-board LDO regulators powered by the USB
- ACE software interface for SPI control
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADMV8052-EVALZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 116683.29 |
| 3-5 | ₹ 115492.64 |
| 5-10 | ₹ 113111.35 |
| 10+ | ₹ 110730.06 |
Bulk discount will be automatically applied during checkout based on quantity.
