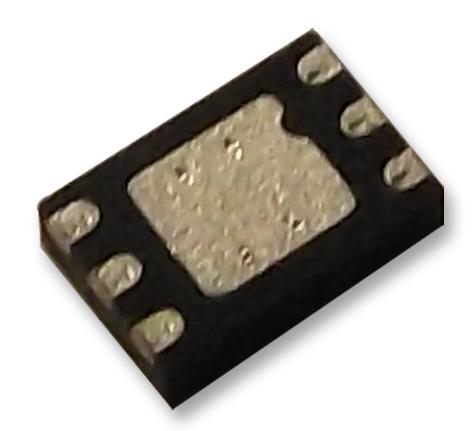

ANALOG DEVICES ADM7160ACPZN3.3-R7 LDO Voltage Regulator, Fixed, 2.2 to 5.5V in, 150mV Drop, 3.3V / 0.2A Out, LFCSP-UD-EP-6

ADM7160ACPZN3.3-R7 is an ultralow noise, low dropout linear regulator that operates from 2.2V to 5.5V and provides up to 200mA of output current. The low 150mV dropout voltage at a 200mA load improves efficiency and allows operation over a wide input voltage range. Utilizing an innovative circuit topology, the ADM7160 achieves ultralow noise performance without the need for a bypass capacitor, making it ideal for noise-sensitive analogue front-end and RF applications. Furthermore, the ADM7160 maintains ultralow noise performance without compromising PSRR or transient line and load performance. Current limit and thermal overload protection circuits prevent damage under adverse conditions. Additionally, the ADM7160 includes an internal pull-down resistor on the EN input. It is commonly used in applications such as ADC/DAC power supplies, RF, VCO, and PLL power supplies, and post dc-to-dc regulation.

• Input voltage range from 2.2V to 5.5V, low quiescent and shutdown current
• Operating supply current is 10µA typical at (ILOAD = 0µA, TA = 25°C)
• Shutdown current is 0.2µA typical at (EN = GND, TA = 25°C)
• Output voltage accuracy is +1% maximum at (ILOAD = 10mA, TA = 25°C)
• Temperature coefficient is 29ppm/°C typical at (VOUT = 2.5V, TJ = 25°C to 85°C)
• Dropout voltage is 10mV typical at (ILOAD = 10mA, TA = 25°C)
• Output noise is 3µV rms typical at (VIN = 5V, VOUT = 2.5V, 0.1Hz to 10Hz)
• 3.3V output voltage, start up time is 180µs typical at (VOUT = 3.3V, TA = 25°C)
• Operating ambient temperature range from -40°C to +125°C
• 6-lead LFCSP-UD package
