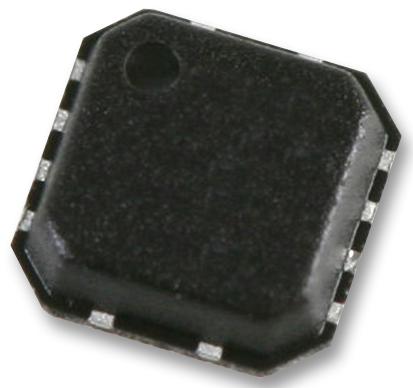

ANALOG DEVICES ADM7155ACPZ-03-R7 LDO Voltage Regulator, Adjustable, 2.3 to 5.5V in, 120mV Drop, 1.2 to 2.9V/0.6A Out, LFCSP-WD-EP-8

ADM7155ACPZ-03-R7 is an adjustable linear regulator that operates from 2.3V to 5.5V and provides up to 600mA of load current. Using an advanced proprietary architecture, it provides high power supply rejection and ultralow noise, achieving excellent line and load transient response with only a 10?F ceramic output capacitor. The ADM7155 regulator's typical output noise is 0.9?V rms from 100Hz to 100KHz for fixed output voltage options and 1.5nV/?Hz for noise spectral density from 10KHz to 1MHz. Applications include regulation to noise sensitive applications: PLLs, VCOs, and PLLs with integrated VCOs, communications and infrastructure, backhaul and microwave links.

• Input voltage range from 2.3V to 5.5V, precision enable
• Stable with a 10?F ceramic output capacitor, supported by ADIsimPower tool
• Load current is 600mA maximum at (TA = 25°C)
• Operating supply current is 4mA typical at (ILOAD = 0?A, TA = 25°C)
• Output noise is 1.6?V rms typical at (10Hz to 100KHz, VOUT = 1.2V to 3.4V)
• Output voltage initial accuracy is +0.5% maximum at (ILOAD = 10mA, TA = 25°C)
• Dropout voltage is 80mV typical at (IOUT = 400mA, VOUT = 3.3V)
• Power supply rejection ratio is 94dB typ at (1KHz to 100KHz, VIN = 3.4V)
• Output voltage range from 1.2V to 2.9V
• Operating ambient temperature range from -40°C to +125°C, 8-lead LFCSP-WD package
