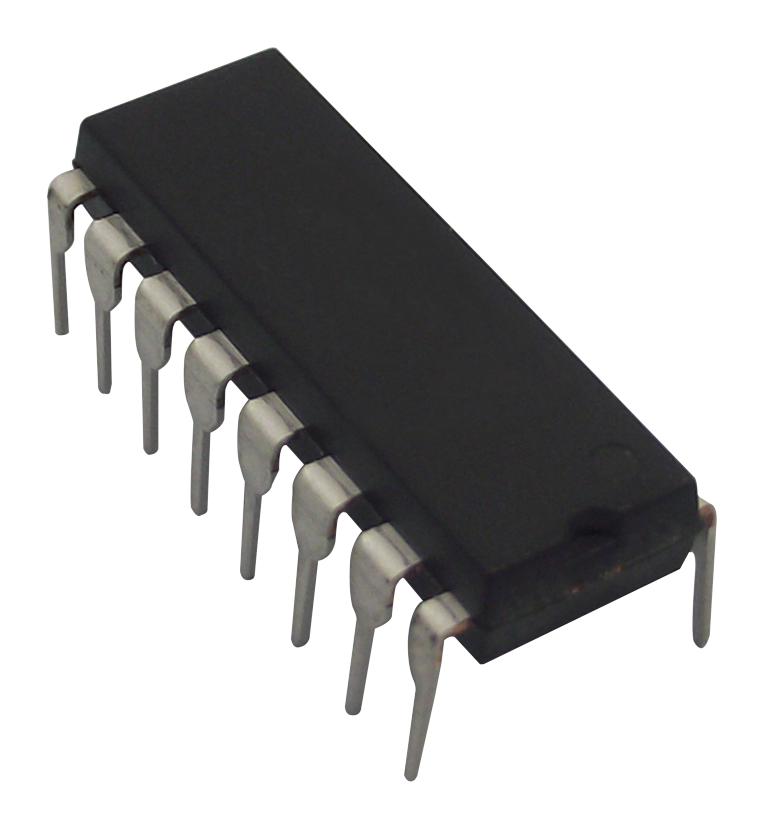

ANALOG DEVICES AD677JNZ Analogue to Digital Converter, 16 bit, 100 kSPS, Single Ended, Serial, Single, 11.4 V

AD677 is a multipurpose 16bit serial output analogue-to-digital converter which utilizes a switched-capacitor/charger distribution architecture to achieve a 100KSPS conversion rate (10µs total conversion time). Overall performance is optimized by digitally correcting internal nonlinearities through on-chip auto calibration. The AD677 circuitry is segmented onto two monolithic chips a digital control chip fabricated on Analog Devices DSP CMOS process and an analogue ADC chip fabricated on our BiMOS II process. Both chips are contained in a single package. The AD677 is specified for AC (or �dynamic�) parameters such as S/(N+D) Ratio, THD and IMD which are important in signal processing applications.

• Auto calibrating: DC performance while eliminating need for user adjustments or additional circuitry
• On-chip sample-hold function
• Serial output
• 16bits no missing codes
• ±1LSB INL at 83KSPS, TMIN to TMAX
• THD of -97dB at 83KSPS, TMIN to TMAX and S/(N+D) of 91dB typ at 83KSPS, TMIN to TMAX
• 1MHz full power bandwidth
• 450mW power consumption
• 16 lead DIP package
• Operating temperature range from 0 to 70°C
