Description
The AMX CTC-1402 Conferencing Connectivity and Transport Kit makes it easy to connect mobile devices like laptops and smartphones to the A/V equipment in a conference room or meeting space.
The all-inclusive system is a 4K60 4:4:4 auto-switching, scaling, and distance transport solution that includes both the transmitter and receiver, and features USB 2.0 peripheral switching for dynamically sharing room USB devices. With the CTC-1402, you can simply connect a visiting mobile device to the transmitter, and the room display/projector is automatically turned on, and the signal is transmitted and scaled for optimal viewing.
Features- Transmitter and Receiver Included: Easy switching where you need it
- USB 2.0 Switching and Distribution: Share USB microphones, cameras, and other peripherals between permanently installed devices and laptops
- 4K60 4:4:4 Support with Built-In Scaling: Experience pixel-for-pixel video reproduction of 4K60 source video with full 4:4:4 color space
- HDCP 2.2 Support: Interface with the latest source devices
- Transport over a Single Category Cable: Simple installation over longer distances
- NetLinx Native: Easy integration with AMX automation systems
- CEC Control: Control compatible displays over HDMI
| Twisted Pair Cable Standard | Shielded Cat6, Cat6A and Cat7 / Shielded Cat6A and Cat7 Twisted Pair Cable Up to 262" / 80 m for Full 4K Signal Support Up to 328" / 100 m for 1080p and Below |
| Power Requirements | 12 VDC 3A Max Output; 100-240V 50/60Hz AC Input |
| Power Consumption | CTC-1402TX: 16.5 Watts CTC-1402RX: 17 Watts |
| Power Connector | Screw-Down Locking Power Connector |

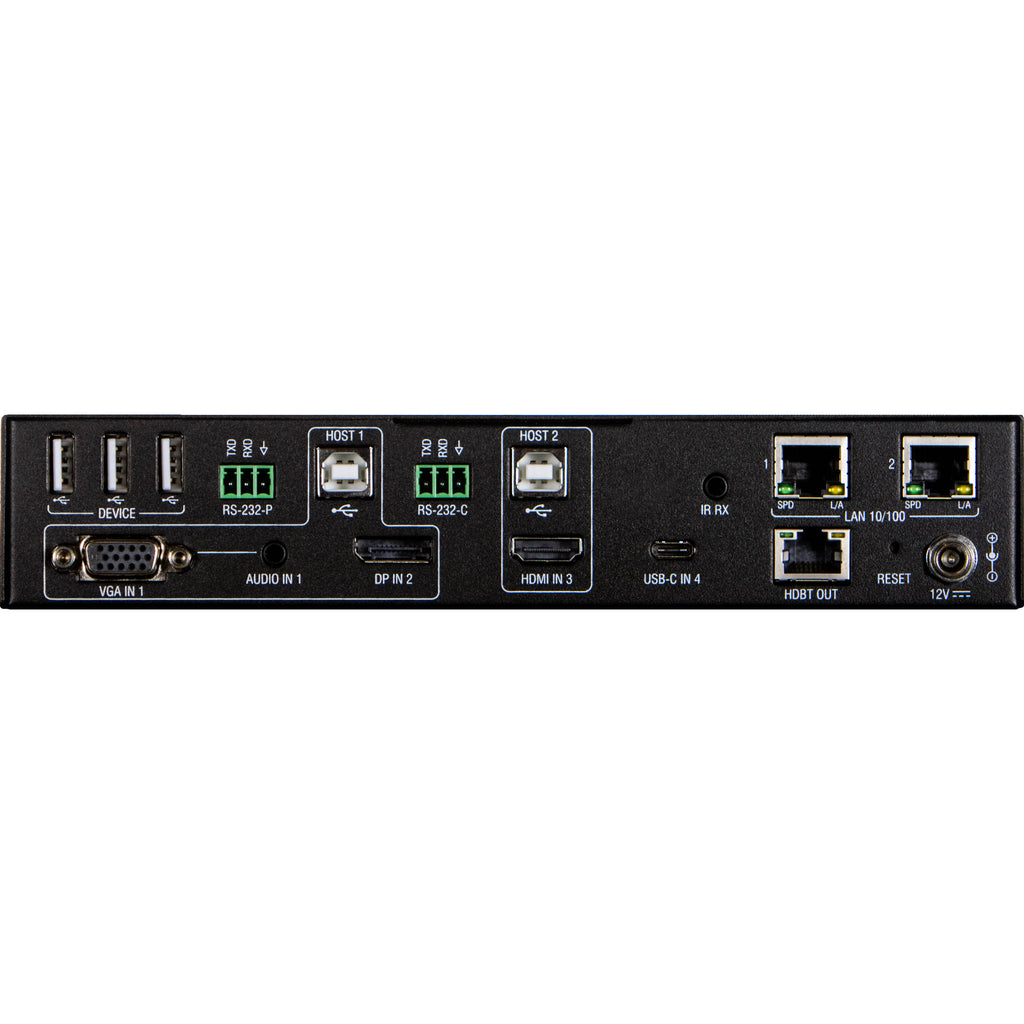

| Rear Connections | CTC-1402 TX DC Power: Screw-Down Locking Power Connector USB Device Connections: 3 x USB 2.0 Type-A Connectors USB Host Connections: 2 x USB 2.0 Type-B Connectors HDMI Input: HDMI Type-A Female Connector VGA Inputs: HD-15 Connector Display Port: DisplayPort Connector USB Input: USB Type-C LAN10/100 Ethernet Port: 2 x RJ-45 Connectors, TCP/IP Port (ICS LAN 10/100) HDBaseT Output: RJ-45 IR RX: 1/8" / 3.5 mm Mini-Stereo Jack RS-232 Device Control: 3-Position 1/8" / 3.5 mm Pluggable Phoenix Terminal Blocks Analog Stereo Input: 1/8" / 3.5 mm Stereo Mini Jack Analog Stereo Pass-Through Input: 1/8" / 3.5 mm Stereo Mini Jack RS-232 Extended Control: 3-Position 1/8" / 3.5 mm Pluggable Phoenix Terminal CTC-1402 RX |

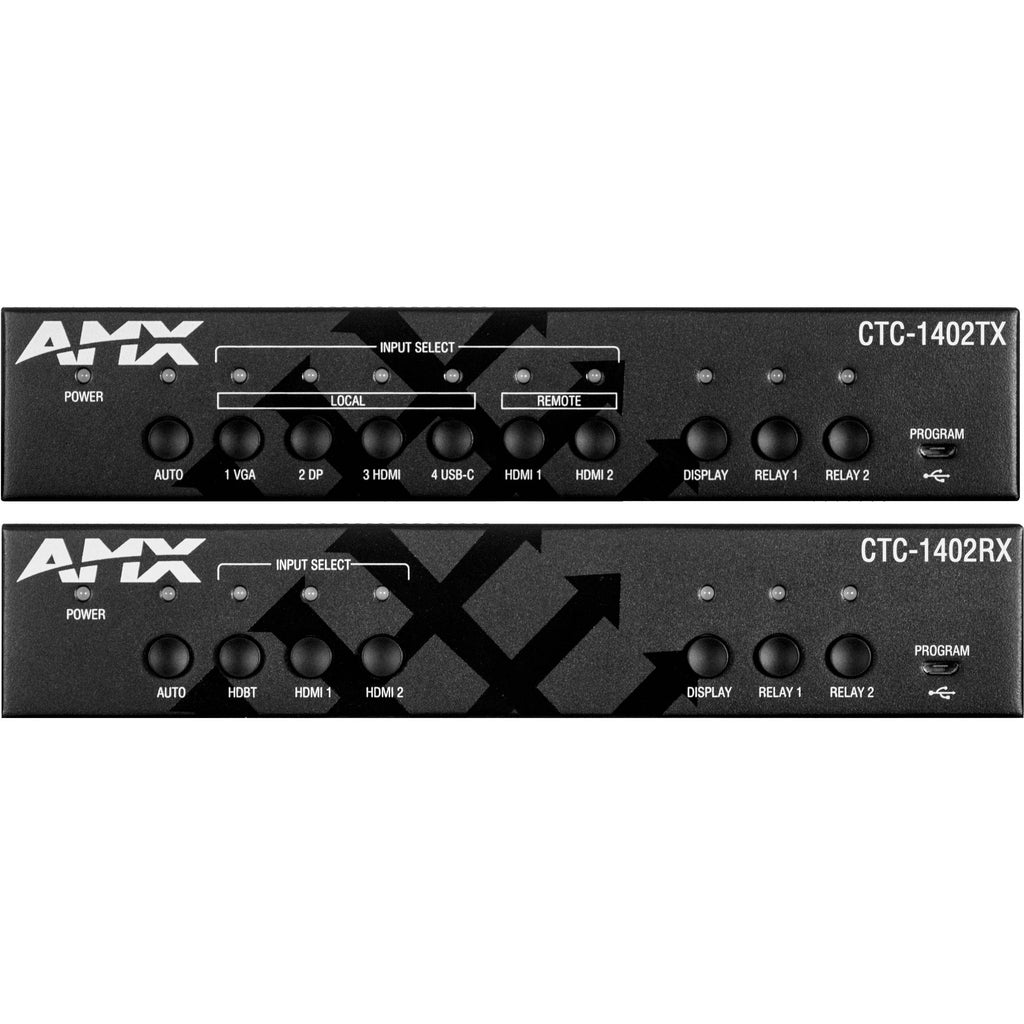

| Controls and Indicators | CTC-1402 TX Input Status Indicator: 6 x Tricolor LEDs Indicating Selected Input and Signal Presence on Each Input Input Selection Buttons: 6 x Selects Active Input Auto LED: Indicates Auto Switching Enabled/Disabled Auto Button: Enables/Disables Auto Switching Display Indicator: Provides Feedback on Display Control Display Button: Display On/Off Control Relay Indicator: Feedback on Relay Control Relay Button: 2 x Relay Control Ethernet Link / Act Indicator: 2 x Link/Activity LED (Green) Blinks When Receiving Ethernet Data Packets One on Ethernet RJ-45 Ethernet Speed Indicator: 2 x Speed LED (Yellow) Lights On When Connection Speed is 100 Mbps Ethernet Connection and Turns OFF When the Speed is 10 Mbps HDBaseT Link: On HDBaseT RJ-45 (Green) Indicates Link to HDBaseT Rx HDBaseT HDCP Status: On HDBaseT RJ-45 (Yellow) On Indicates HDCP, Flashing Indicates Non-HDCP Power Indicator: Power LED (Green) Indicates Unit Is Powered On CTC-1402 RX |
| Integrated Switching | Video Switching 4x1 TX Switching Combined with a 3x1 Receiver, Switching to Select Between TX HDBaseT Source or Two HDMI RX Sources, Audio Switches with Video, Full 6x1 Switching Video Inputs HD-15: Supports RGBHV HDMI x 3: supports HDMI/HDCP DisplayPort: Supports DisplayPort/HDCP USB Type-C: Supports USB 3.0 DisplayPort Alternative Mode Video/HDCP HDBaseT: To Connected TX/RX Video Outputs HDMI: supports HDMI/HDCP (On RX) HDBaseT: to Connect TX/RX HDCP Support: Yes; HDCP 1.4 and 2.2 Key Management System EDID Management: A Preferred EDID Can Be Selected for Each Input or Any Display; EDID Can Be Mirrored to Any Input Independently |
| USB Peripheral Switching | USB Switching: All USB Device Connections Switch to USB Host Device Connection Associated with Active Video Input Selection USB Device Hub Support: Supports 1 USB Hub Connected to Either TX or RX Device Port USB Device Support: Up to 7 Connected USB Devices USB Power Support: Not to exceed .5 A per USB Device (USB Type-A) Port |
| HDMI | Compatible Formats: HDMI 2.0, 1.X, HDCP 2.2 Signal Type Support: HDMI, DisplayPort++ (Input Only with HDMI CableAdapter) Input Video Level: .5 - 1.2 V p-p Data Rate (Max): 18 Gbp Pixel Clock (Max): Up to 600 Mhz Resolution Support: Various up to 4096 x 2160 at 60 Hz - Reference User Manual For Specific Resolution Support Audio Format Support: 2 CH L-PCM Local Audio Support: TX Insertion / RX Extraction HDCP Support: Yes HDCP 1.4, 2.2 CEC Support: Yes Automatic or NetLinx programmable |
| HDMI Supported Resolutions | VESA 800 x 600 at 60 Hz 1024 x 768 at 60 Hz 1280 x 768, at 60 Hz 1280 x 800 at 60 Hz 1280 x 960 at 60 Hz 1280 x 1024 at 60 Hz 1360 x 768 at 60 Hz 1366 x 768 at 60 Hz 1440 x 900 at 60 Hz 1600 x 900 at 60 Hz 1600 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1200 at 60 Hz 2048 x 1152 at 60 Hz 3840 x 2160 at 24 Hz, 25Hz, 30 Hz, 60 Hz 4096 x 2160 at 24 Hz, 25Hz, 30 Hz, 60 Hz SMPT Established Timing CEA Information Code (VIC) Formats |
| HDMI Output Scaling Resolutions | 800 x 600 at 60 Hz 1280 x 720 at 50 Hz, 59.95 Hz, 60 Hz 1024 x 768 at 60 Hz 1280 x 768 at 60 Hz 1280 x 800 at 60 Hz 1280 x 960 at 60 Hz 1280 x 1024 at 60 Hz 1360 x 768 at 60 Hz 1366 x 768 at 60 Hz 1440 x 900 at 60 Hz 1600 x 900 at 60 Hz 1600 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1080 at 50 hz, 60 Hz 1920 x 1200 at 60 Hz 3840 x 2160 at 24 Hz, 25 Hz, 30 Hz, 60 Hz 4096 x 2160 at 24 Hz, 25 Hz, 30 Hz, 60 Hz |
| Display Port Supported Video | CTC-1402 TX 800 x 600 at 60 Hz 1024 x 768 at 60 Hz 1280 x 768, at 60 Hz 1280 x 800 at 60 Hz 1280 x 960 at 60 Hz 1280 x 1024 at 60 Hz 1360 x 768 at 60 Hz 1366 x 768 at 60 Hz 1440 x 900 at 60 Hz 1600 x 900 at 60 Hz 1600 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1200 at 60 Hz 1280 x 720 at 50 Hz 1920 x 1080 at 50 Hz 1920 x 1080 at 60 Hz 1920 x 1200 at 60 Hz 1280 x 720 at 50 Hz, 60 Hz 1920 x 1080 at 50 Hz, 60 Hz 3840 x 2160 at 50 Hz, 60 Hz 4096 x 2160 at 50 Hz, 60 Hz |
| USB-C Supported Video | CTC-1402 TX 800 x 600 at 60 Hz 1024 x 768 at 60 Hz 1280 x 768, at 60 Hz 1280 x 800 at 60 Hz 1280 x 960 at 60 Hz 1280 x 1024 at 60 Hz 1360 x 768 at 60 Hz 1366 x 768 at 60 Hz 1440 x 900 at 60 Hz 1600 x 900 at 60 Hz 1600 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1200 at 60 Hz 1280 x 720 at 50 Hz 1920 x 1080 at 50 Hz 1920 x 1080 at 60 Hz 1920 x 1200 at 60 Hz 1280 x 720P at 50 Hz, 60 Hz 1920 x 1080 at 50 Hz, 60 Hz 3840 x 2160 at 50 Hz, 60 Hz 4096 x 2160 at 50 Hz, 60 Hz |
| USB-C Host Support | CTC-1402 TX For Connected USB 3.0 Devices USB Type-C Connector Supports Simultaneous Video Passage and USB 2.0 Peripheral Connectivity for Devices Connected to CTC1402 TX/RX |
| USB-C Cable Requirements | CTC-1402 TX For USB Type-C Video, Use of a USB 3.0 Cable with a Minimum Transfer Data Rate of 5G bps is Required |
| Analog Video | CTC-1402 TX Compatible Formats: RGBHV Input Connector: HD-15 Resolution Support: Up to 1920 x 1200 at 60 Hz Reduced Blanking Auto-Adjust Input: Supported Digital Processing: 24-Bit, 165 MHz |
| Signal Transport | HDBaseT CTC-1402 TX/RX Connector: RJ-45 Transport Layer Throughput (Max): 10.2 Gbps Output Formats: Connects TX to RX Twisted Pair Cable Type: Shielded Cat6, Cat6A and Cat7, HDBaseT Cable Runs for Equipment Shall Only Be Run Within a Common Building Where Common Building Is Defined As: The Walls of the Structure(s) Are Physically Connected and the Structure(s) Share a Single Ground Reference |
| Stereo Audio Outputs | CTC-1402 RX Output Signal Types: Unbalanced Stereo Analog Volume Control: -100 db to +0 db in 1 dB Steps |
In the Box
- AMX CTC-1402 Conferencing Connectivity and Transport Kit
- CTC-1402 Transmitter
- CTC-1402 Receiver
- 2 x DC Power Adapters with Locking Plugs
- 2 x AC Power Adapter with US Pins
- 2 x AC Power Adapter with UK Pins
- 2 x AC Power Adapter with EU Pins
- 8 x Phoenix Male Connector Cables (3.5mm, 3-Pins)
- Phoenix Male Connector (3.5mm, 2-Pins)
- IR Emitter
- Broadband IR Receiver
- 4 x Mounting Brackets
- Limited 3-Year Warranty
