Description

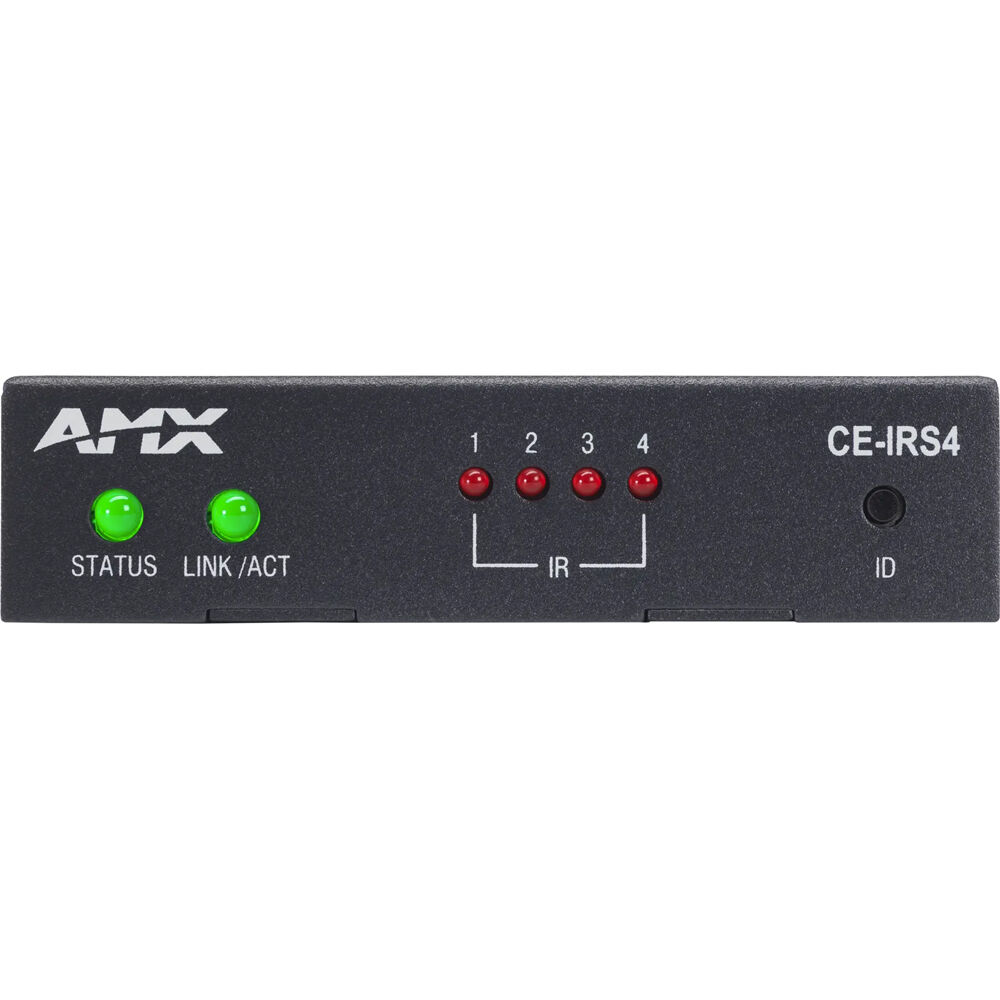

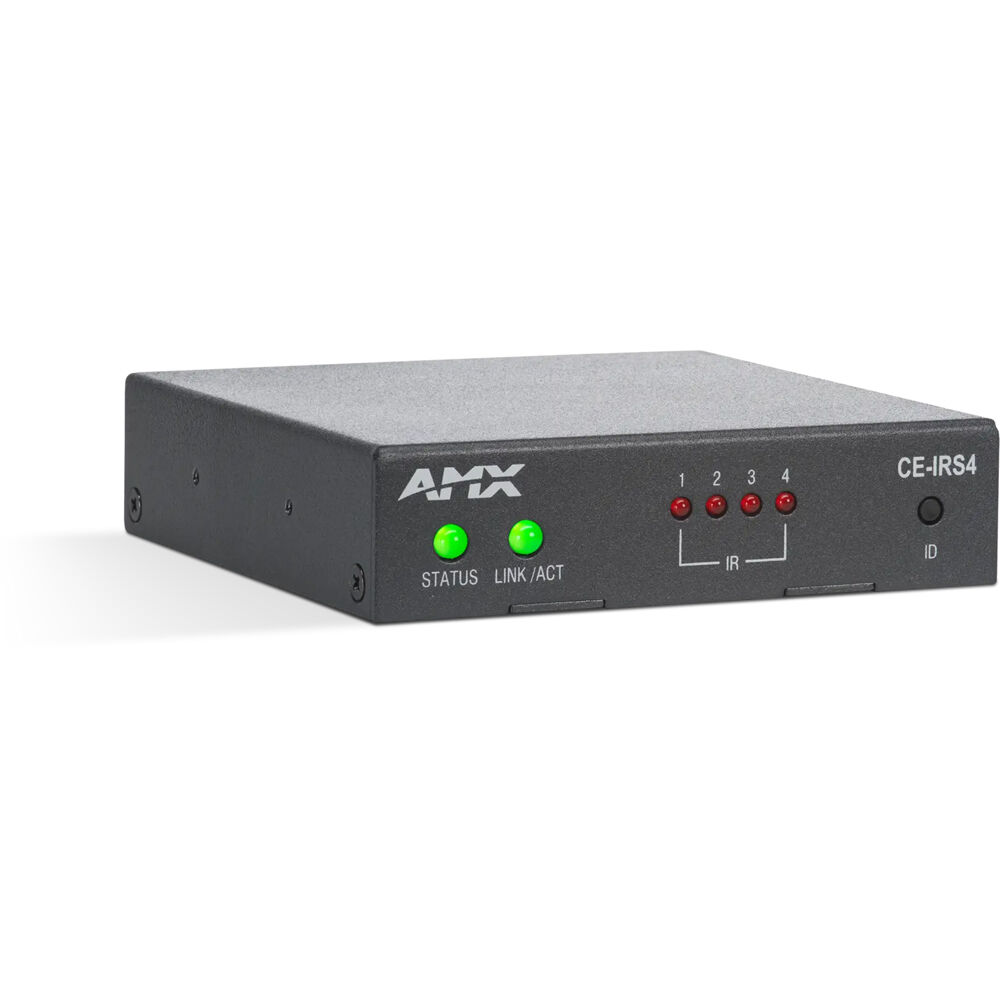

AMX CE-IRS4 Overview
Extend IP signals to IR or serially controlled devices with this CE-IRS4 Universal Control Extender from AMX. The CE-IRS4 easily integrates into pre-existing IP systems. Its web user-interface offers intuitive configuration, while its open-control API ensures compatibility with third-party control systems and applications. Accepting control signals and Power-over-Ethernet via its RJ45 port, the extender sports an eight-pin terminal block connector with four IR/serial control output ports.
Native HControl enables the extender to be automatically discovered and integrate seamlessly with AMX control processors and other HARMAN professional devices. Featuring a concealable, compact design, the extender provides a secure solution for interfacing with IR or serially controlled devices and extending the reach of control processors well beyond the limits inherent in point-to-point connections.
- Web-based UI enables configuration without specialized applications
- Open control API for simple integration with third-party systems
- IR ports can be optionally configured as one-way RS-232 control outputs
- RJ45 LAN port for input of IP control signals and PoE with up to 2.4W draw

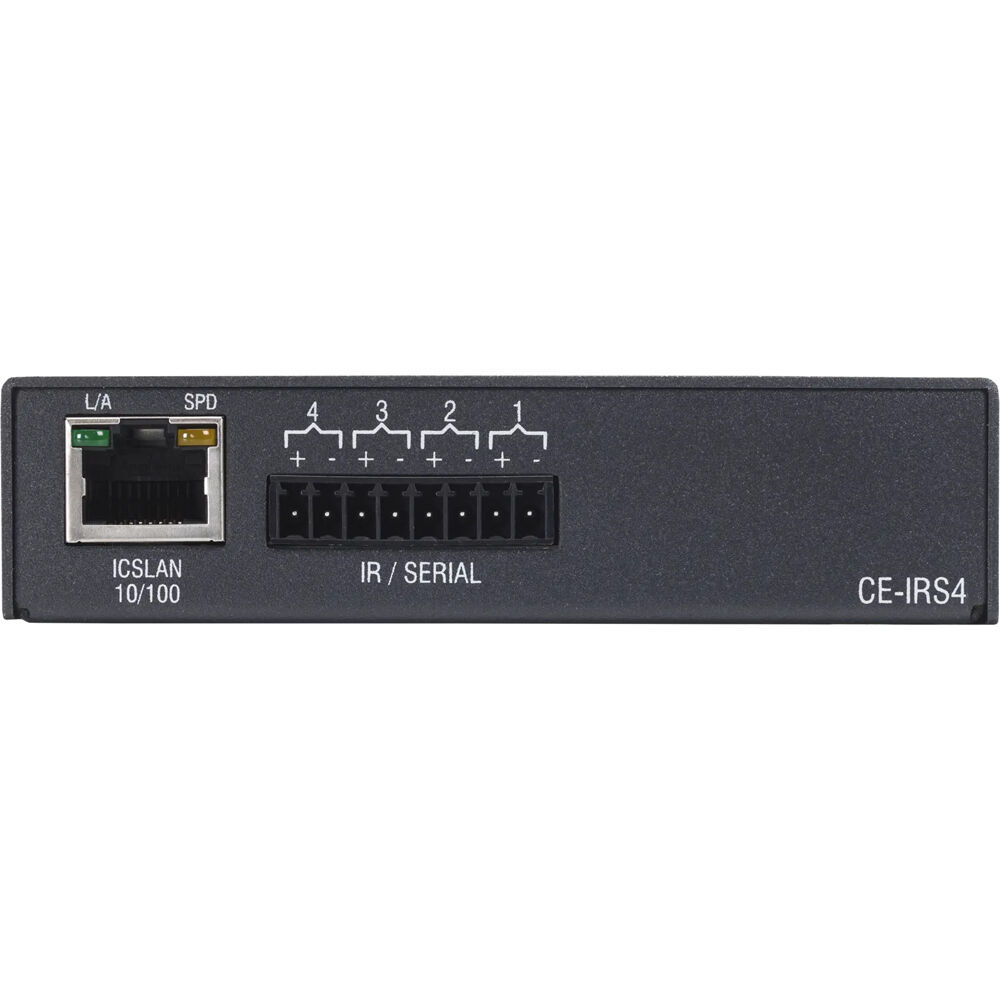

- Eight-pin 3.5mm captive-screw terminal block with four IR/serial outputs
- Each IR/S control port is 20 kHz to 1.1 MHz
Items Included
- AMX CE-IRS4 Universal Control Extender with 4 IR/Serial Control Ports
- AMX IR LED Cable with 3.5mm Phoenix
- 6-Pin 3.5mm Mini-Phoenix Connector
- Limited 3-Year Manufacturer Warranty
Additional Resources
AMX CE-IRS4 Specs
| Other I/O |
1x RJ45 LAN Control and PoE Input
1x Block 8-Pin IR/Serial Control Output |
| Power Source |
PoE
|
| Power Consumption |
1.9 W (Typical)
2.4 W (Maximum) |
| Color |
Gray
|
| Material of Construction |
Steel
|
| Certifications |
CB Scheme IEC 62368-1, CE EN 55022 CISPR 22 Class B, FCC Part 15 Class B, REACH, RoHS, UL Listing 62368-1
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 5 to 85% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 5 to 85% Humidity
|
| Dimensions |
4.1 x 4.1 x 1" / 10.4 x 10.3 x 2.5 cm
|
| Weight |
1 lb / 454 g
|
