Description
AMX CE-IO4 Overview

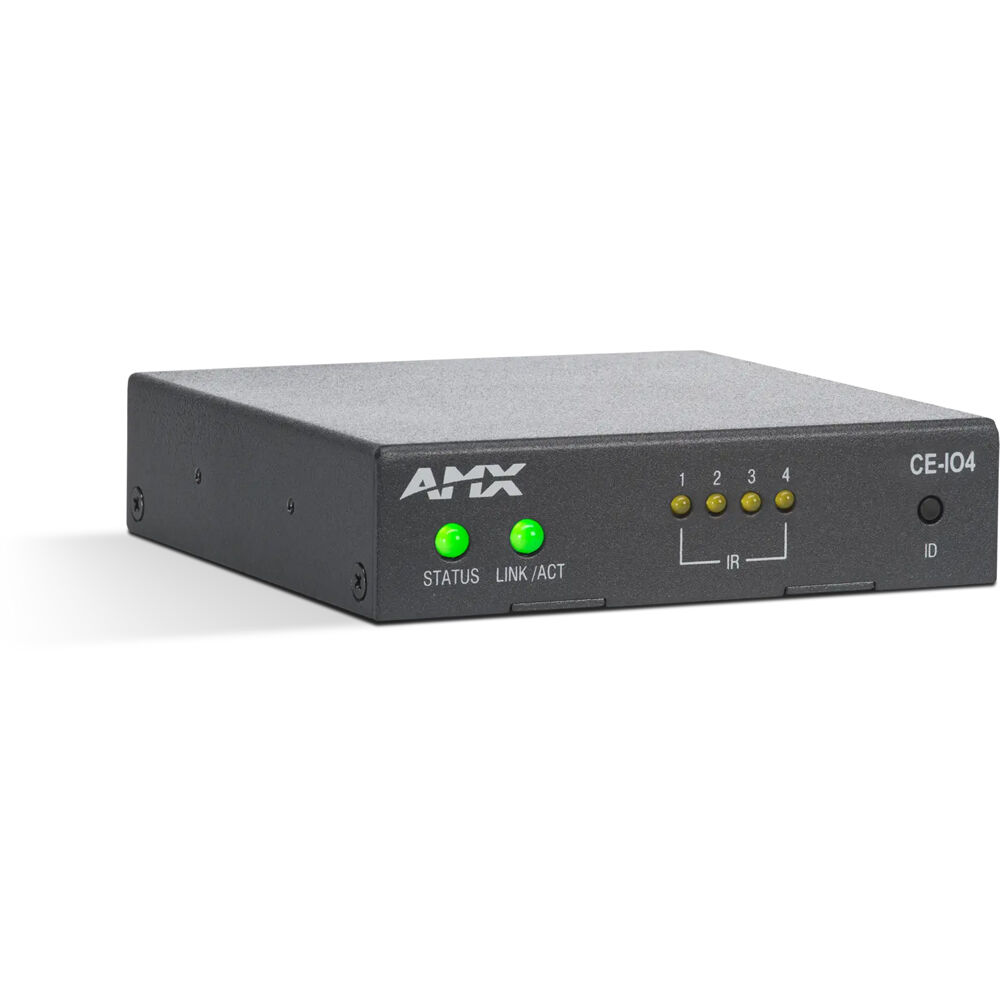

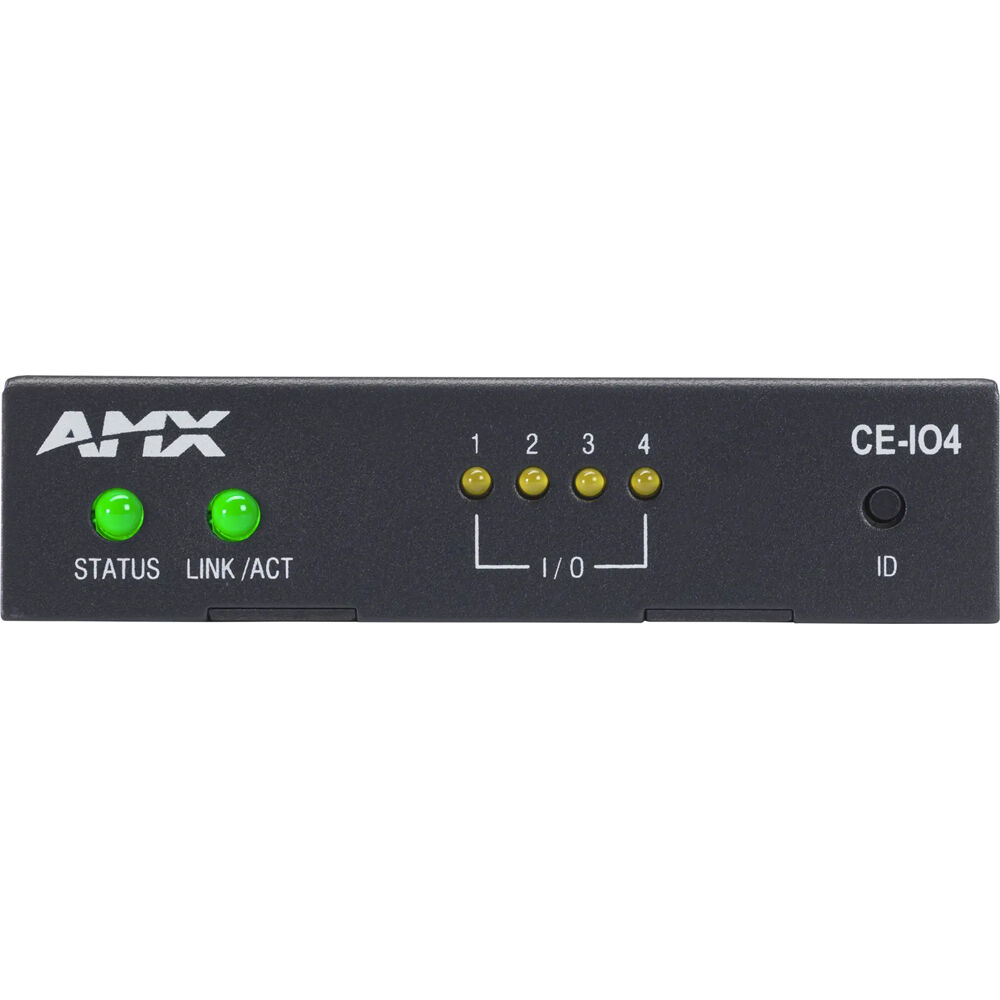

Extend IP signals to analog and digital devices with this CE-IO4 Universal Control Extender from AMX. The CE-IO4 easily integrates into pre-existing IP systems. Its web user-interface offers intuitive configuration, while its open-control API ensures compatibility with third-party control systems and applications. Accepting control signals and Power-over-Ethernet via its RJ45 port, the extender sports a six-pin terminal block connector with four configurable input/output contacts, a 12 VDC power output, and a GND connection.
Native HControl enables the extender to be automatically discovered and integrate seamlessly with AMX control processors and other HARMAN professional devices. Featuring a concealable, compact design, the extender provides a secure solution for interfacing with analog and digital devices and extending the reach of control processors well beyond the limits inherent in point-to-point connections.
- Web-based UI enables configuration without specialized applications
- Open control API for simple integration with third-party systems
- Four configurable contacts for analog input or digital input/output
- RJ45 LAN port for input of IP control signals and PoE with a 1.9W draw

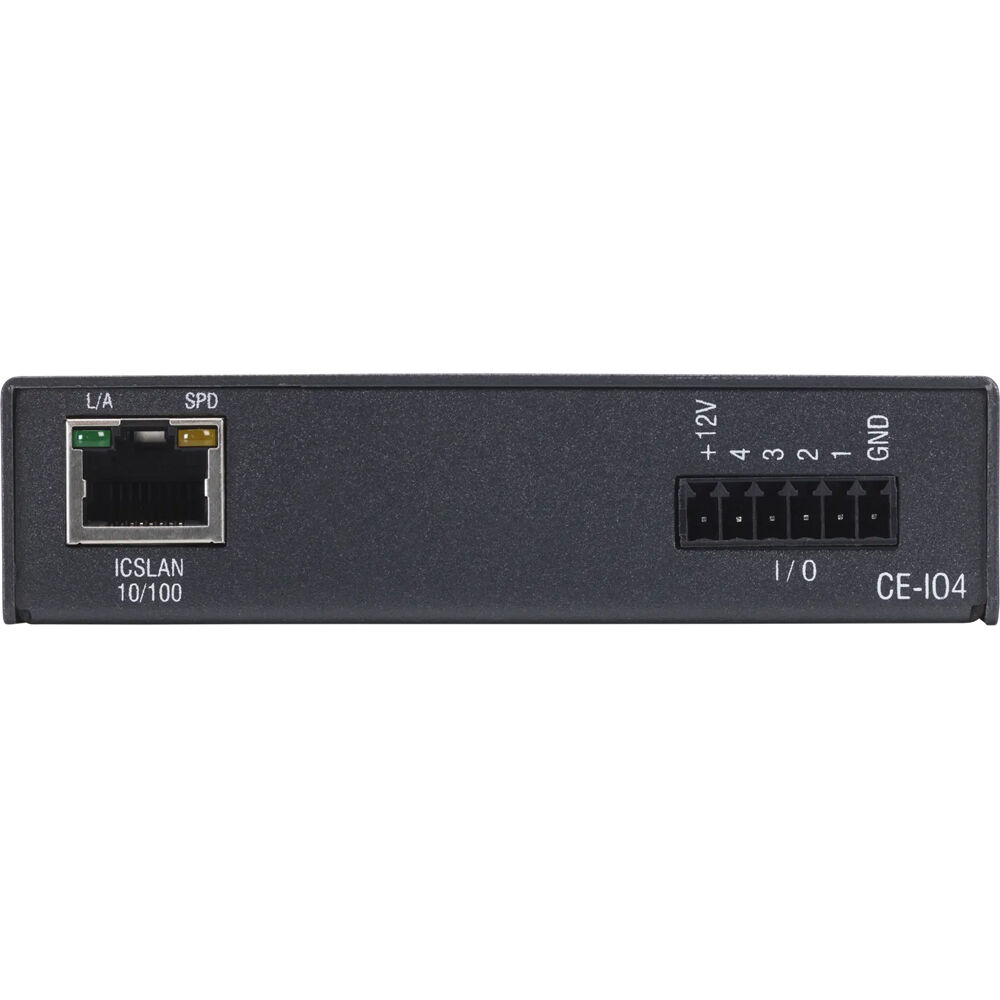

- Six-pin 3.5mm captive-screw terminal block with four I/O contacts, 12 VDC output, and GND
- Adjustable threshold digital input and 0 to 10 VDC analog input
- Source or sink 100mA digital output
Items Included
- AMX CE-IO4 Universal Control Extender with 4 I/O Ports
- Limited 3-Year Manufacturer Warranty
Additional Resources
AMX CE-IO4 Specs
| Other I/O |
1x RJ45 LAN Control and PoE Input
1x Block 6-Pin Control and 12 VDC Power Output |
| Power Source |
PoE
|
| Power Consumption |
1.9 W
|
| Color |
Gray
|
| Material of Construction |
Steel
|
| Certifications |
CB Scheme IEC 62368-1, CE EN 55022 CISPR 22 Class B, FCC Part 15 Class B, REACH, RoHS, UL Listing 62368-1
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 5 to 85% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 5 to 85% Humidity
|
| Dimensions |
4.1 x 4.1 x 1" / 10.4 x 10.3 x 2.5 cm
|
| Weight |
1 lb / 454 g
|
