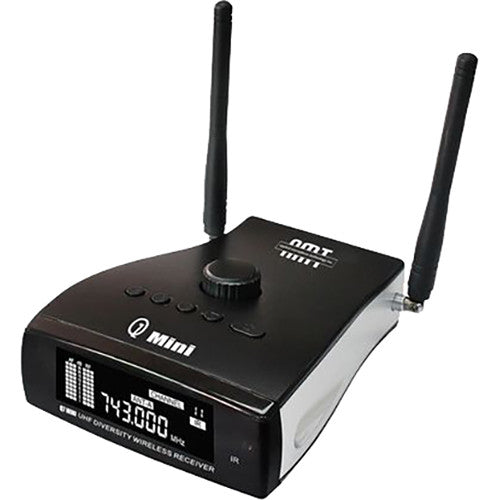

- AMT Q7 Mini Receiver

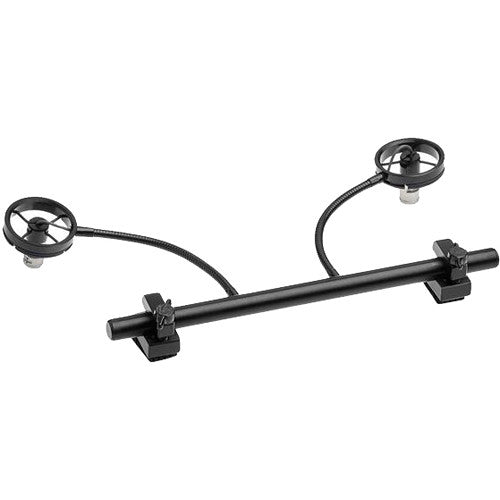

- Q7 Transmitter and AMT ACCR Microphone

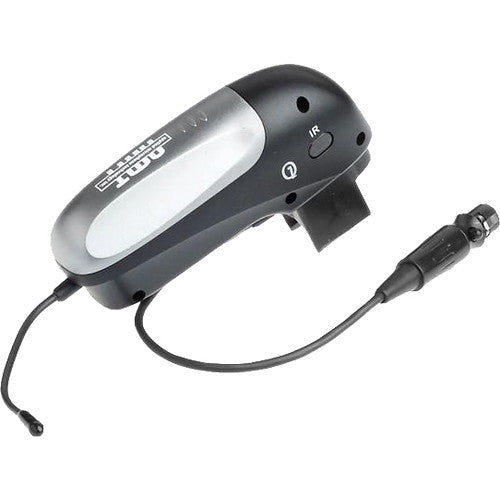

- Transmitter Mounts onto Microphone
- 100 Preset Selectable Channels
- Receiver Runs on 12V Power/AA Batteries
- Transmitter Runs on Single AA Battery
- 1/4" Audio Output

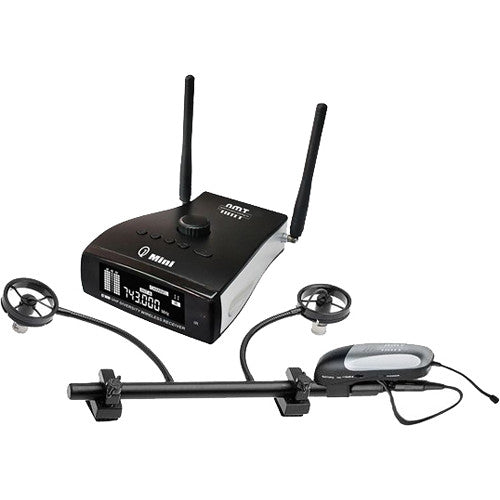

The Q7-ACCR Mini Wireless Microphone System for Accordions from AMT includes the Q7 transmitter, an AMT ACCR (right hand) microphone, and the AMT Q7 Mini receiver that is small enough to fit in an instrument case or travel bag. It operates in the 900 MHz frequency range and can be used to capture audio for accordions in live stage, theater, recording, and rehearsal applications.
The receiver is powered by a standard 12V power supply, or for quicker and more portable setups, it can be powered by AA batteries. The Q7 transmitter is powered by a single AA battery. The antennas are permanently attached to make setup easy. This system offers 100 preset selectable channels and syncs with the Q7 transmitter via infrared.
- PLL Synthesized, 100 preset selectable frequencies with IR syncronization
- Antenna diversity maximum range up to 262'
- High-fidelity sound with no loss
- LCD display shows the RF level, AF level, channel, and frequency
- No need for a bodypack transmitter. The transmitter mounts to AMT microphones
- The receiver is powered by a 12V power adapter or two AA batteries
- 1/4" audio output
In the Box
AMT Q7-ACCR Mini Wireless Microphone System for Accordion (Right Hand, 900 MHz)
AMT ACCR Microphone Q7 Battery-Powered Transmitter Mini 100-Channel Receiver Limited 1-Year Warranty
AMT Q7-ACCR MINI Specs
| System |
| Wireless Transmission | Digital 900 MHz |
| Number of RF Channels | 100 |
| Included Transmitters | 1 x Clip-On with Microphone |
| Diversity | Antenna Diversity |
| Max Operating Range | 262.5' / 80 m (Line of Sight) |
| Encryption | Yes |
| Deviation | ±48 kHz (Peak) |
| Receiver |
| Form Factor | Portable |
| Mounting Options | Tabletop |
| Antenna | 2 x 1/4 Wave Rod, Fixed (Side-Mount) |
| Number of Audio Channels | 100 |
| Audio I/O | 1 x 1/4" TS Female Unbalanced Line Output |
| RF Output Power | 10 mW |
| Power Requirements | AC/DC Power Adapter |
| Battery Type | 2 x AA (Not Included) |
| Display & Indicators | 1 x Back-Lit LCD (AF Level, Channel, Frequency, RF Level) |
| Transmitter |
| Form Factor | Clip-On with Microphone |
| RF Output Power | 10 mW |
| Audio I/O | None |
| Sync Method | IR |
| Antenna | 1 x 1/4 Wave Wire |
| Approximate RF Sensitivity | 110 dBm |
| Power Requirements | Battery |
| Battery Type | 1 x AA (Not Included) |
| Approx. Battery Life | 12 Hours (Alkaline) |
| Housing | ABS |
| Microphone |
| Form Factor | Integrated |
| Sound Field | Mono |
| Polar Pattern | Cardioid |
