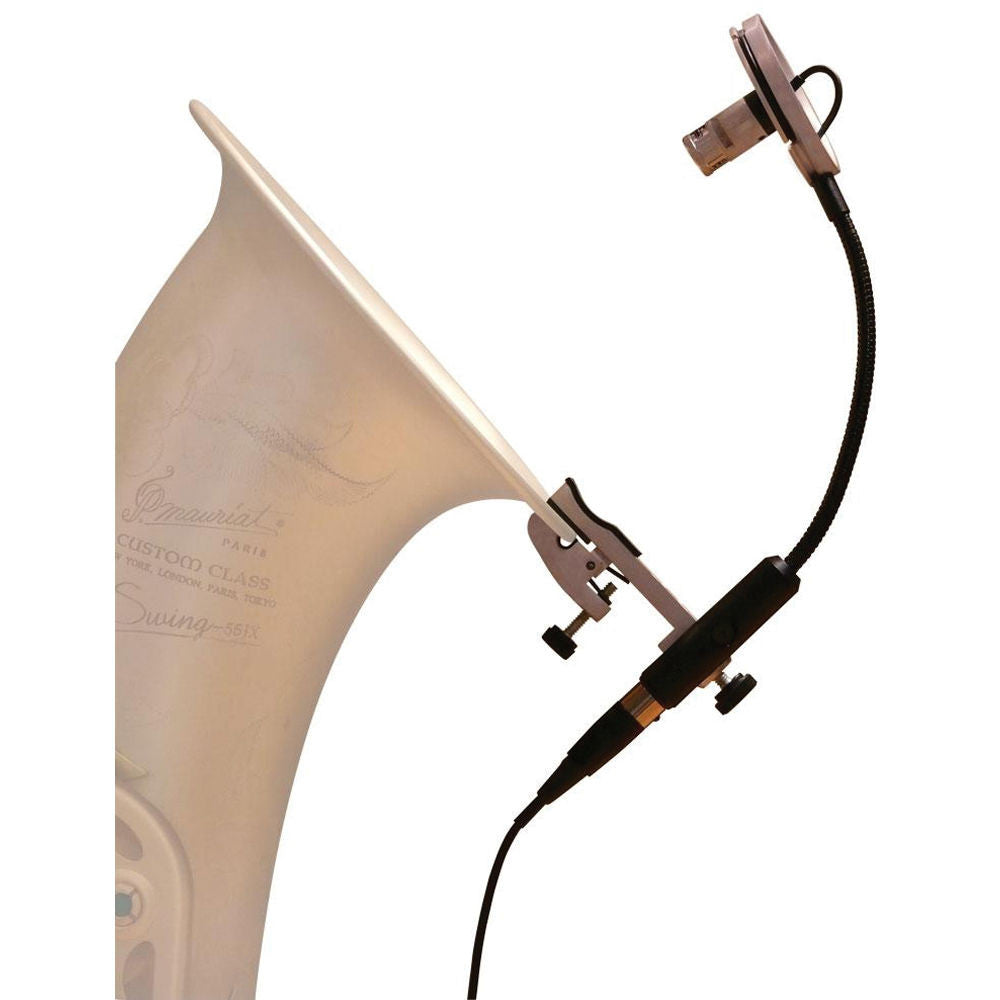

The LS Studio Woodwind and Brass Microphone from AMT is a professional brass and woodwind microphone system that combines the LS microphone with the AP40 amplifier. The LS microphone attaches to the bell of brass and woodwind instruments. The cardioid polar pattern minimizes off-axis noise and feedback. The AP40 amplifier converts the microphone's output to low impedance; it regulates the voltage to each microphone and with certain models creates a specific frequency curve. The combination results in pristine reproduction of brass and woodwind instruments for recording and sound reinforcement applications.
- AP40 Preamplifier

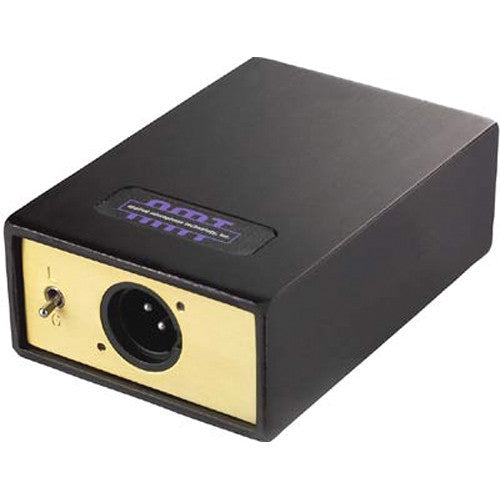

- The AP40 preamplifier converts to low impedance and creates a specific frequency curve.
- High SPL Handling
- The system provides high SPL handling, minimizing noise while capturing transient peaks.
- Cardioid Polar Pattern
- The cardioid polar pattern minimizes off-axis noise and feedback.
In the Box
AMT LS Studio - Brass & Woodwind Microphone with AP40 Preamplifier
- LS Microphone
- AP40 Preamplifier
- Mounting Clip for Flanged Bell Instruments
- 1/4" Phone - XLR Cable
- Hard-shell Case
- Limited 1-Year Warranty
| Transducer | Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 50�Hz to 18�kHz |
| Maximum SPL | 120 dB SPL |
| Impedance | 150�ohms |
| Power Requirements | 11-52 V |
| Output Connectors | 3-Pin XLR |
| Packaging Info |
| Package Weight | 3.1 lb |
| Box Dimensions (LxWxH) | 16.0 x 11.5 x 4.35" |
