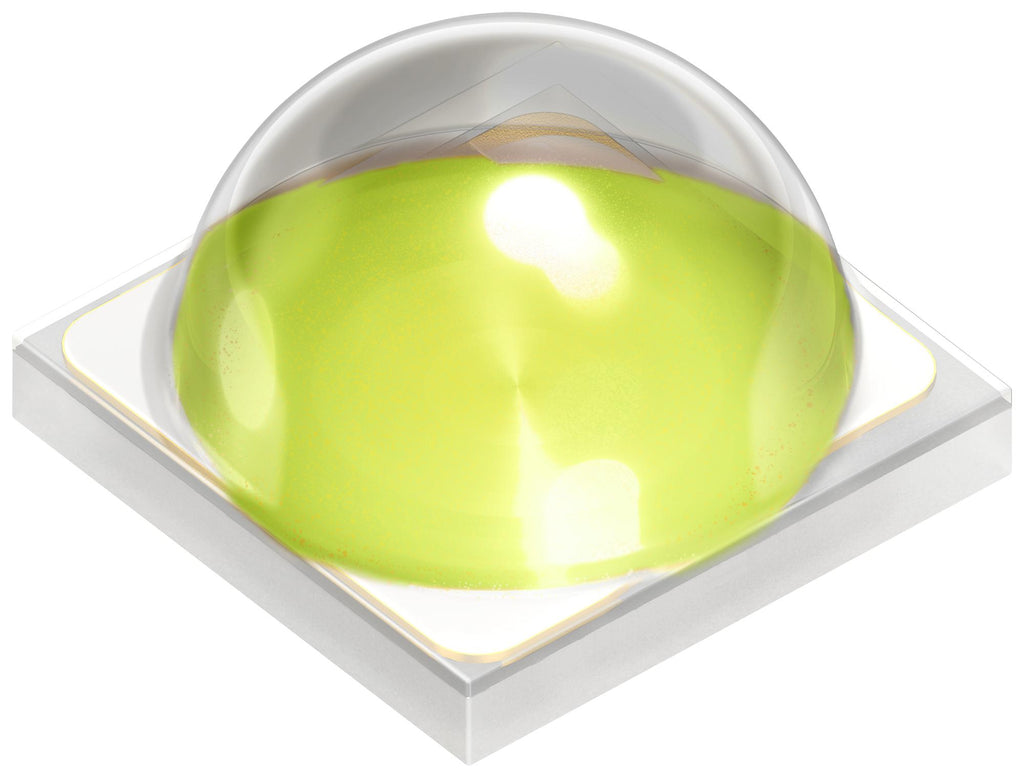

LCB CRBP.01-KXLX-3B6B-Y474 is a high-power LED. This OSLON® signal combines a compact form factor with high efficiency and an electrically insulated thermal pad. The square package matches the optical centre with the mechanical centre. This provides easy clustering flexibility and high packing density for a maximum flux density. The colour bins are defined for best fit to most signalling norms. The application includes access control and security, appliances and tools, factory automation, home, and building automation, material processing, projection and display, robotics, and transportation.
- UX:3 chip technology, 120° typical radiation
- Cx = 0.16, Cy = 0.12 acc. to CIE 1931 colour (converted blue)
- 3B corrosion robustness class
- ESD 8kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
- Bipolar, back to back (B2B) ESD minimum reverse voltage 5V
- 71.0 to 130.0lm luminous flux (IF is 350mA ΦV)
- Operating temperature range from -40 to 125°C
Product details
| Product Range:
OSLON Signal Series
|
| LED Colour:
Blue
|
| Wavelength Typ:
475nm
|
| Viewing Angle:
125°
|
| Luminous Flux @ Test:
130lm
|
| Forward Current If Max:
1.2A
|
| Forward Current @ Test:
350mA
|
| Forward Voltage @ Test:
2.9V
|
| Luminous Intensity @ Test:
35.3cd
|
| Power Dissipation Pd:
-
|
| Automotive Qualification Standard:
-
|
Other details
| Brand |
AMS OSRAM GROUP |
| Part Number |
LCB CRBP.01-KXLX-3B6B-Y474 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
