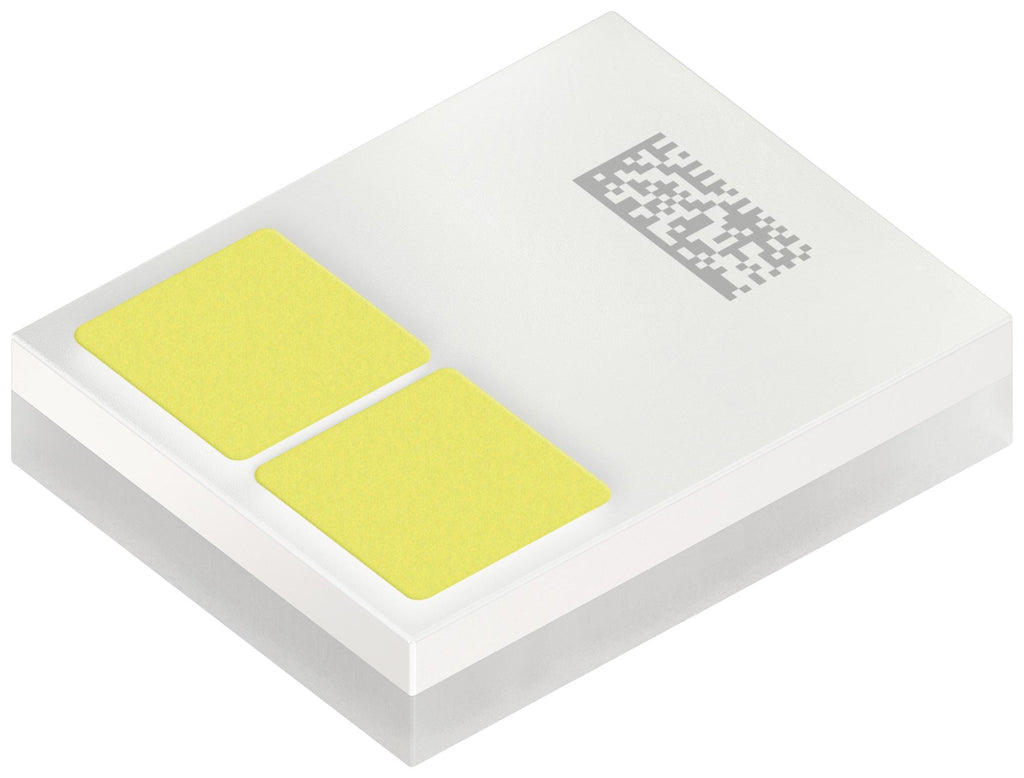

KW2 CFLNM3.TK-D5T2-4L07M0-SC6B is a OSLON® compact PL LED. This compact light source with isolated thermal pad for improved heat dissipation and small z-tolerance (+/- 35 µm). The OSLON compact PL product family meets both excellent brightness in combination with outstanding luminance. Application includes dynamic forward lighting, static forward lighting.
- UX:3 chip technology, 120° typical radiation (lambertian emitter)
- Cx = 0.325, Cy = 0.345 acc. to CIE 1931 colour (white)
- 3A corrosion robustness class
- AEC-Q102 qualified
- ESD 8kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
- Better than passus 3.7.2.1 of supplement proposal 7 to ECE reg. 128 colour over angle
- 790 to 1100lm luminous flux (IF is 1000mA ΦV)
- Operating temperature range from -40 to 135°C
Other details
| Brand |
AMS OSRAM GROUP |
| Part Number |
KW2 CFLNM3.TK-D5T2-4L07M0-SC6B |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
