Description

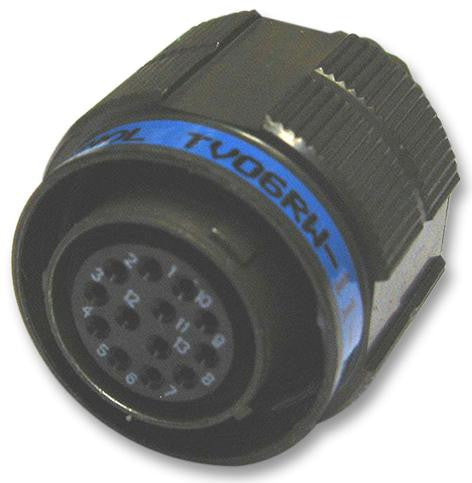

The TV06RW-11-35SN(W52) from Amphenol is Tri-Start TV series, MIL-DTL-38999 Series III equivalent straight plug with 13 contacts. Tri-Start TV series connectors are high performance MIL-DTL-38999 Series III equivalent connectors which are available in wide range of shell materials and finishes in 9 shell sizes (09 to 25) with 48, 500, 2000 hour salt spray plating exposure (MIL-STD-1344A method 1001 condition C). These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It is designed to withstand the extreme shock, exposure and vibration. These connectors are fully intermatable and intermountable with all other manufacturer's MIL-DTL-38999 Series III connectors.
- High reliability, moisture and corrosion resistant
- Outstanding EMI, RFI shielding protection (100MHz to 10GHz)
- 500 mating cycles, high durability versions are available with 1500 mating cycles
- Operates at extreme temperature range of -65�C to +200�C based on shell finish
- Minimum insulation resistance is 5000Mohm (at 25�C)
- Scoop proof to eliminate the possibility of contact damage
- Self locking connector system, triple start threaded coupling
- Thermoplastic clips moulded directly with insert
- Aluminium alloy body material with olive drab chromate over cadmium plating
- Copper alloy crimp socket contacts with gold plating
Applications
Commercial, Industrial
Product details
| Contact Material | Copper Alloy |
| Circular Connector Shell Style | Straight Plug |
| Contact Plating | Gold |
| Insert Arrangement | 11-35 |
| Connector Body Material | Aluminium Alloy Body |
| Service Class | Corrosion Resistant, EMI |
| Coupling Style | Threaded |
| No. of Contacts | 13Contacts |
| Product Range | Tri-Start TV Series |
| Equivalent Military Specification | MIL-DTL-38999 Series III |
| Connector Body Plating | Olive Drab Chromate over Cadmium |
| Insert Rotation | N |
| Circular Contact Type | Crimp Socket |
Other details
| Brand | AMPHENOL |
| Part Number | TV06RW-11-35SN(W52) |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 13964.11 |
| 3-5 | ₹ 13821.62 |
| 5-10 | ₹ 13536.64 |
| 10+ | ₹ 13251.65 |
Bulk discount will be automatically applied during checkout based on quantity.
