| ₹ 6665.78 includes GST and import duties. | |
| B2B customers can avail ₹ 1016.53 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

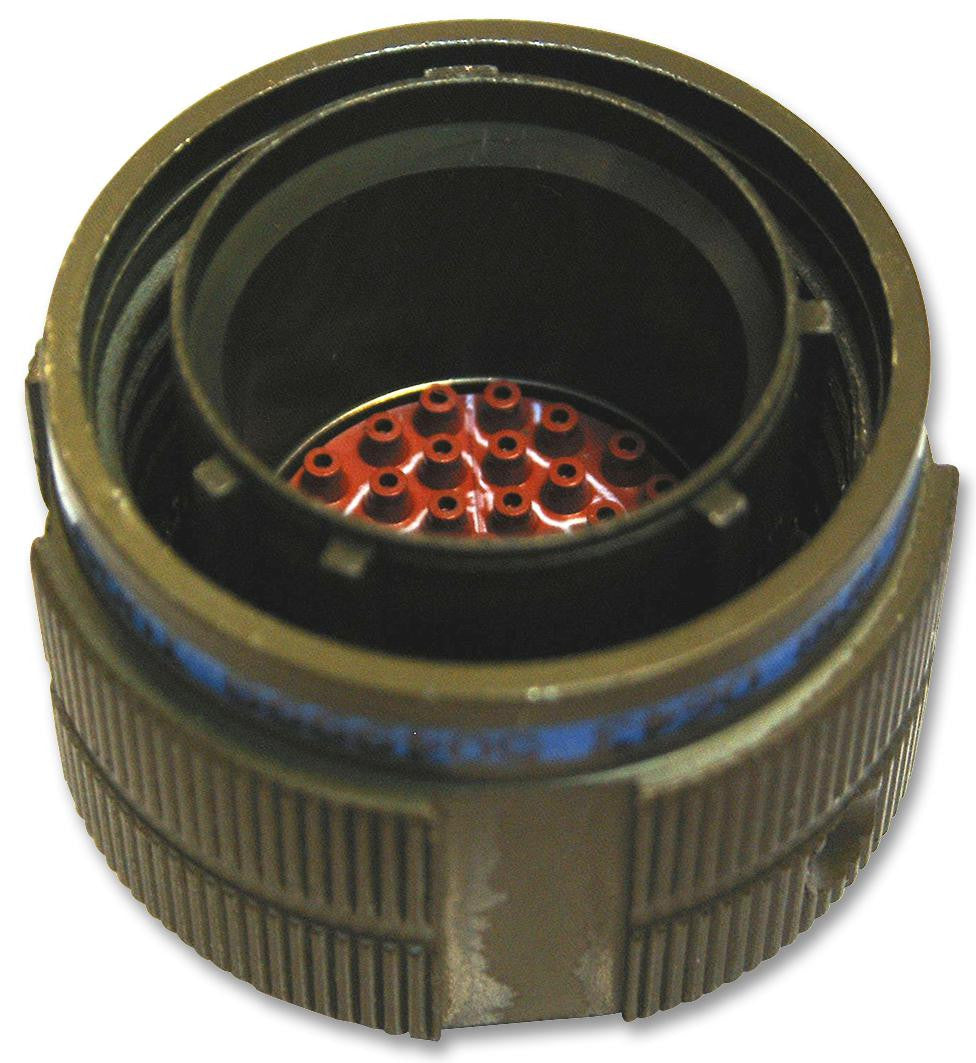

The TV06RW-11-35PN(W52) is a 13-contact Circular Connector with gold-plated copper alloy pin contacts and 11-35 insert arrangement. This Tri-Start� MIL-DTL-38999 series III circular connector has corrosion-resistant olive drab cadmium plate aluminium, 500-hour extended salt spray. This circular connector offers the highest performance capabilities for both general duty and severe environment applications. Meeting or exceeding MIL-DTL-38999 series III requirements, the Tri-Start connector with standard metal straight plug shell.
- EMI shielding capability of 50dB minimum at 10GHz
- Contact protection
- Moisture and corrosion resistance
- Quick coupling - completely mates and self-locks in a 360� turn of the coupling nut
- Electrostatic discharge protection (ESD)
Applications
Aerospace, Defence, Military
Product details
| Contact Material | Copper Alloy |
| Circular Connector Shell Style | Straight Plug |
| Contact Plating | Gold |
| Insert Arrangement | 11-35 |
| Connector Body Material | Aluminium Alloy Body |
| Service Class | Corrosion Resistant, EMI |
| Coupling Style | Threaded |
| No. of Contacts | 13Contacts |
| Product Range | Tri-Start TV Series |
| Equivalent Military Specification | MIL-DTL-38999 Series III |
| Connector Body Plating | Olive Drab Chromate over Cadmium |
| Insert Rotation | N |
| Circular Contact Type | Crimp Pin |
Other details
| Brand | AMPHENOL |
| Part Number | TV06RW-11-35PN(W52) |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 6532.46 |
| 3-5 | ₹ 6465.81 |
| 5-10 | ₹ 6332.49 |
| 10+ | ₹ 6199.18 |
Bulk discount will be automatically applied during checkout based on quantity.
