| ₹ 381.61 includes GST and import duties. | |
| B2B customers can avail ₹ 58.2 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

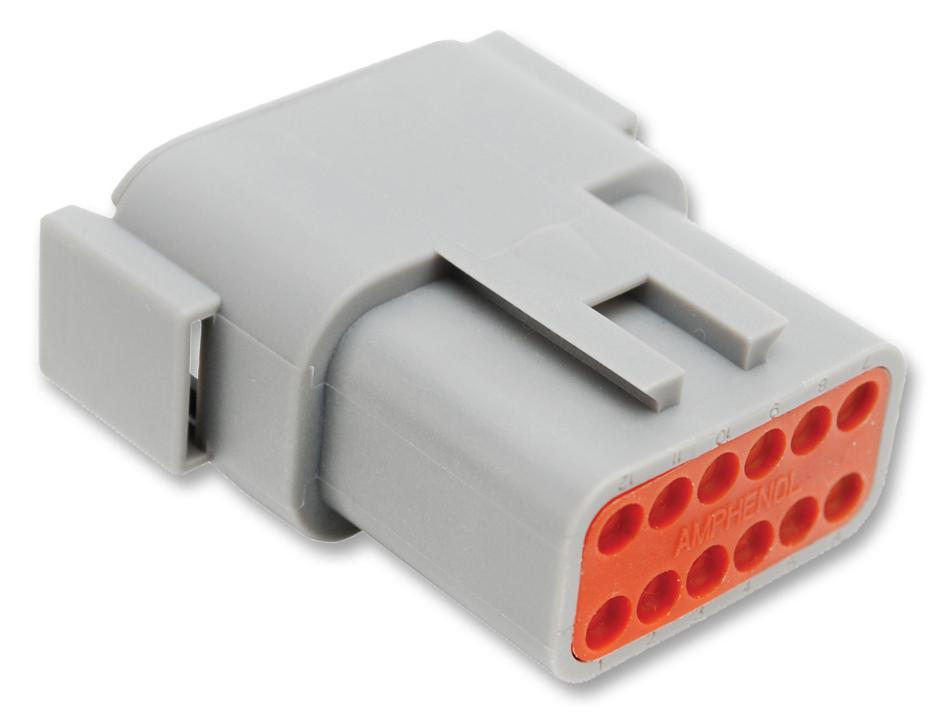

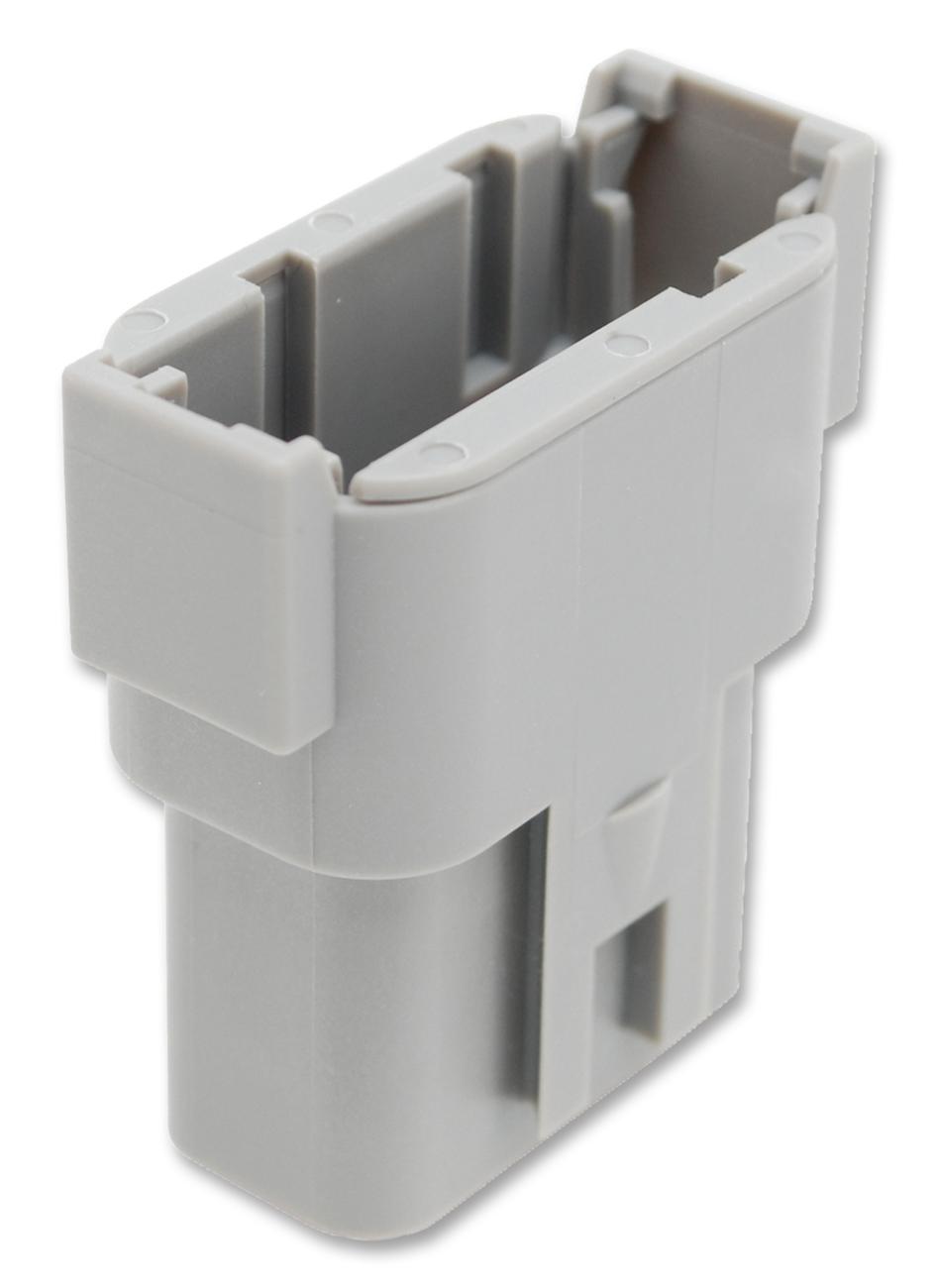

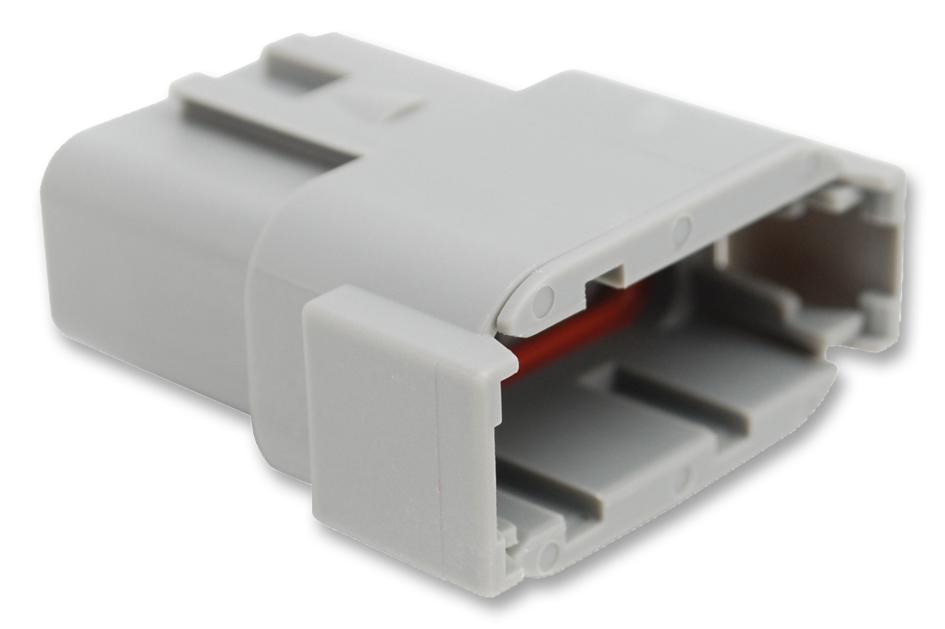

The ATM04-12PA is a 12-way Receptacle with size-20 pin-type contact and A-position key. The ATM series connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housing is manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance and dielectric/mechanical properties. The sealing system is comprised of an internal and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.
- 16 to 22AWG Wire size
- 7.5A Current rating
- 1000MR at 25°C Minimum insulation resistance
- IP67 (moisture resistance) Protection rating
- 100 Mating cycles
Industrial
Other details
| Brand | AMPHENOL SINE/TUCHEL |
| Part Number | ATM04-12PA |
| Quantity | Each |
| Drawing EN |  |
| Enhanced Product Overview EN | |
| Manufacturer Catalogue EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 373.98 |
| 3-5 | ₹ 370.16 |
| 5-10 | ₹ 362.53 |
| 10+ | ₹ 354.9 |
Bulk discount will be automatically applied during checkout based on quantity.
