Description

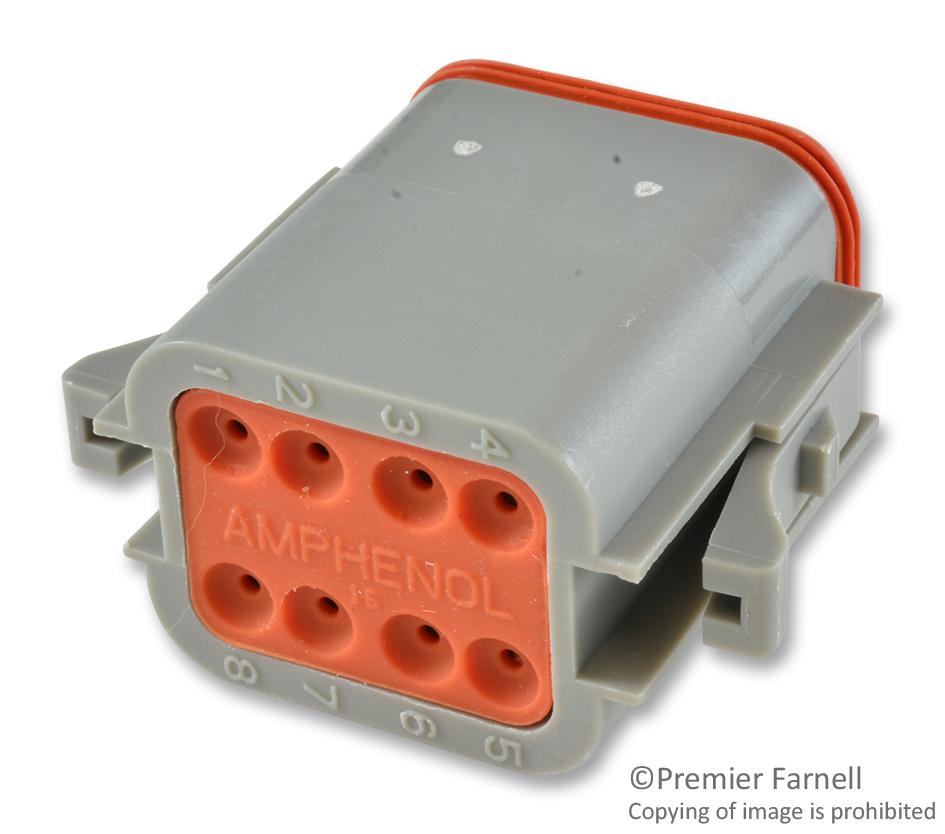

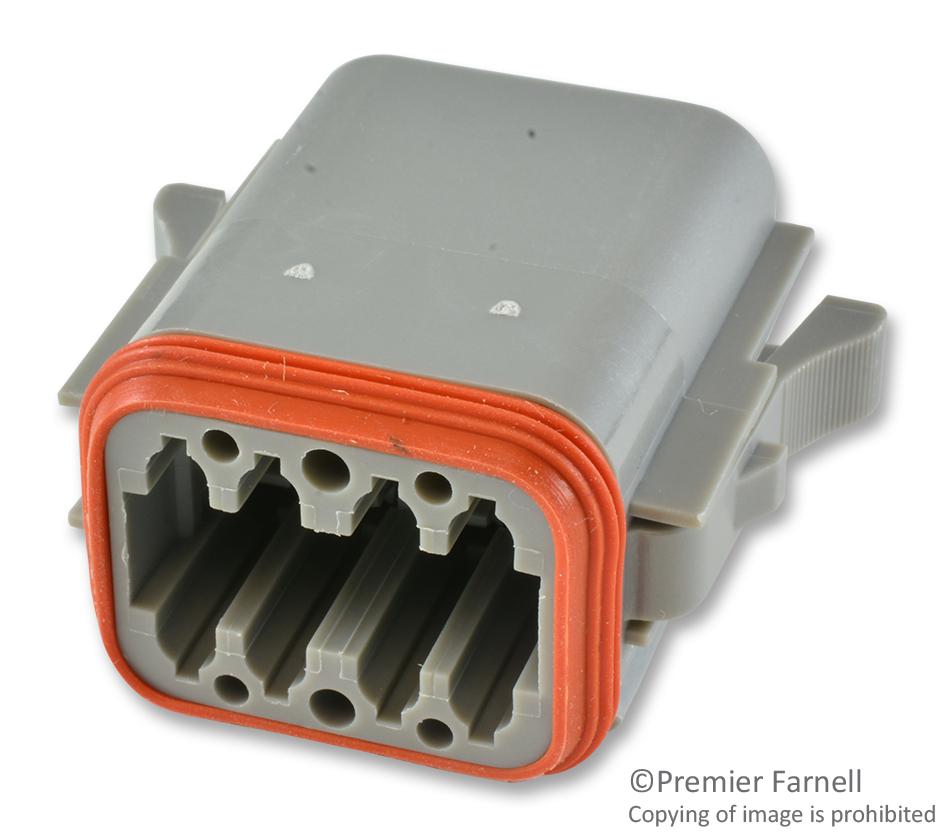

The AT06-08SA is a 8-way Plug, female connector with A-position key and size-16 socket-type contact. The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housing is manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties. The sealing system is comprised of a front and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
- 14 to 20AWG Wire size
- 13A Current rating
- 1000MR at 25?C Minimum insulation resistance
- IP67 (moisture resistance) Protection rating
- 100 Mating cycles
- -55 to +125?C Operating temperature range
Logistics, Medical, Aerospace, Defence, Military, Alternative Energy, Agriculture
Other details
| Brand | AMPHENOL SINE/TUCHEL |
| Part Number | AT06-08SA.. |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 340.69 |
| 3-5 | ₹ 337.21 |
| 5-10 | ₹ 330.26 |
| 10+ | ₹ 323.31 |
Bulk discount will be automatically applied during checkout based on quantity.
