Description
Product Overview

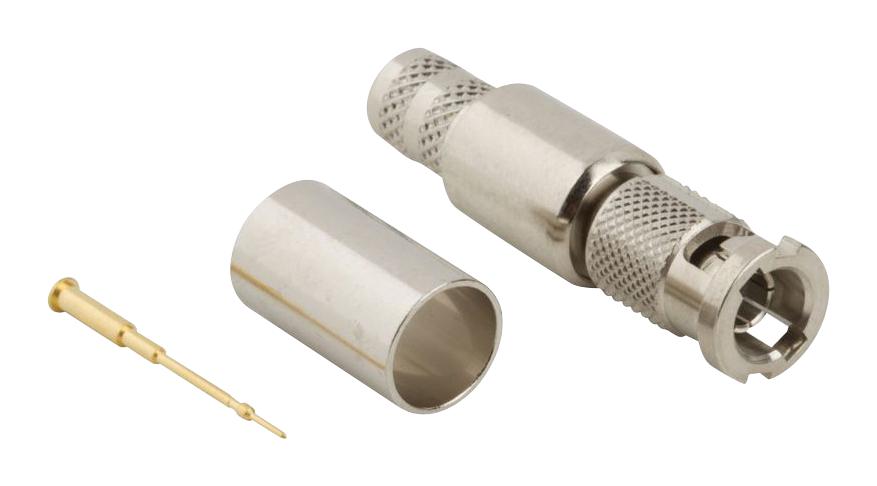

The 034-1025-12G from Amphenol RF is a high-frequency HD-BNC Straight Crimp Plug for Belden 1505A cable. This 75-ohm high-definition cable connector is designed for 12G-SDI video applications and provides a crystal clear signal transmission on a single channel.
- 12 Gb/s performance per SMPTE standard
- One channel for 4K or Ultra-HD quality
- Familiar BNC 2-stud bayonet coupling mechanism
- Nickel-plated brass body and sleeve
- PTFE insulator and black fluorosilicone gasket
- Gold-plated phosphor bronze contact pin
- Nickel-plated beryllium copper outer contact
- Impedance is 75 ohm
- Frequency range is DC-18GHz
- Min. dielectric withstanding voltage is 1000Vrms
- Temperature range from -65°C to +165°C
Applications
Broadcast, Digital Signage, HD Cameras, Mobile Broadcast, Patch Panels, Remote Viewing, Video Encoders
Product details
Other details
| Brand | AMPHENOL RF |
| Part Number | 034-1025-12G |
| Quantity | Each |
| Technical Data Sheet EN |  |
