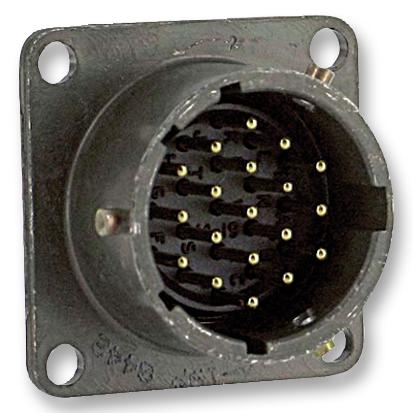

Amphenol Industrial PT02E12-10P PT02E12-10P Circular Receptacle 12-10 BOX

The PT02E12-10P is a 10-contact Circular Connector with gold-plated copper alloy contacts, box mounting receptacle, 12-10 insert arrangement and plug contact type. The standard olive drab, electrically conductive cadmium plate bayonet lock connector with solder contacts. The solder contact miniature cylindrical connector meets the most critical application needs. Design versatility combined with high reliability performance makes these series of miniature cylindrical connector ideal for environmental sealing or pressurized applications. A corrosion-resistant electrically conductive finish of cadmium plate with an olive drab chromate after-treatment. Shell components for these series are aluminium. The dependable 5-key/keyway polarization with bayonet lock coupling assures positive mating with no chance of cross plugging. Spring tension provided by a wave washer in the coupling nut ensures maintenance of interfacial seal between mating halves.

• General duty back shell
• Resilient inserts to provide high dielectric strength and moisture barrier
• Both insert and main joint gasket are moulded from resilient neoprene
• Meets MIL-C-26482 series 1

Applications

Aerospace, Defence, Military, Sensing & Instrumentation, System Monitoring, Automation & Process Control, Communications & Networking, Robotics, Mining, Oil & Gas, Logistics

Other details

Brand	AMPHENOL INDUSTRIAL
Part Number	PT02E12-10P
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
REACH SVHC: Safe Use Data EN
