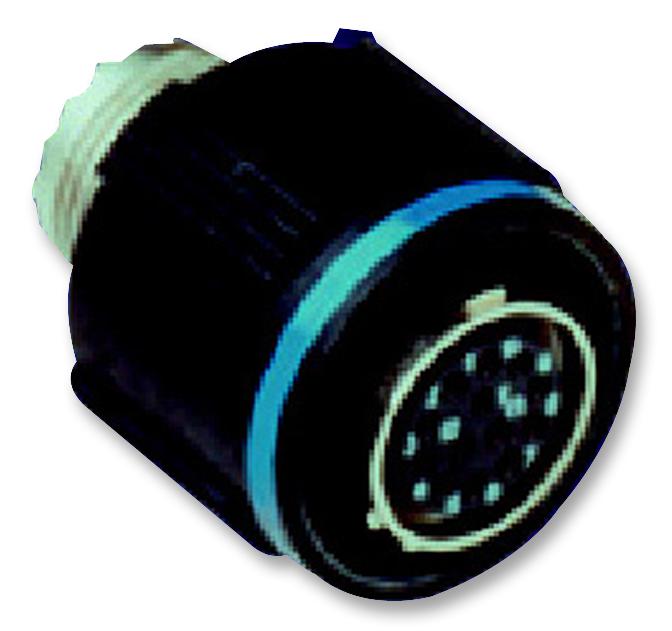

Amphenol Industrial AL00U11-35P AL00U11-35P Circular Connector Amphe-Lite Wall Mount Receptacle 13 Contacts Crimp Pin Threaded 11-35

The AL00U11-35P from Amphenol is Amphe-Lite series, MIL-DTL-38999 Series III equivalent wall mount receptacle with 13 contacts. Amphe-Lite series connectors are high performance MIL-DTL-38999 Series III equivalent composite connectors which are available in wide range of shell materials and finishes in 9 shell sizes (09 to 25) with 2000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It is designed to withstand the extreme shock, exposure and vibration. These connectors are fully intermatable and intermountable with all other manufacturer's MIL-DTL-38999 Series III connectors. Amphe-Lite series connectors are designed for communications such as RF and fibre optic interconnection requirements.

• High reliability, moisture and corrosion resistant
• Outstanding EMI, RFI shielding protection (100MHz to 10GHz)
• 500 mating cycles
• Operates at extreme temperature range of -65°C to +200°C based on shell finish
• Minimum insulation resistance is 5000Mohm (at 25°C)
• Scoop proof to eliminate the possibility of contact damage
• Self locking connector system, triple start threaded coupling
• UL recognized (file E115497)
• Composite body material with non-conductive black unplated finish
• Copper alloy crimp pin contacts with gold plating

Applications

Commercial, Industrial

Other details

Brand	AMPHENOL INDUSTRIAL
Part Number	AL00U11-35P
Quantity	Each
