Amphenol Industrial AIB2-22-8PC AIB2-22-8PC Circular Connector AIB Box Mount Receptacle 2 Contacts Crimp Pin Reverse Bayonet 22-8

The AIB2-22-8PC from Amphenol is AIB series, MIL-DTL-5015 series equivalent box mount receptacle with 2 contacts. The AIB series circular connectors have an improved unique coupling system with positive, quick mating, 3 point reverse bayonet lock for ease of use. The reverse bayonet lock allows simple, fast mating and unmating of connector halves with a simple 120° rotation without compromising shock, vibration or moisture resistance. This quick mating design is easier to mate in cold weather, tight spaces or on equipment which are disassembled frequently. These connectors are completely sealed to withstand moisture, condensation, vibration and flash over across a broad range of wire diameters. AIB series connectors are made in accordance with German military specification VG 95 234 and MIL-DTL-5015 standards. These rugged connectors are intermateable and intermountable with all VG95234 connectors.

• High reliability, lightweight and resistant to damage
• UL approved (file E115497)
• Audible, visual and tactile confirmation of mating
• Operating temperature range from -55°C to +125°C
• Mating life of 2000 cycles, IP67 and NEMA 4P rated
• Insulation resistance is greater than 5000Mohm at 25°C
• Neoprene insulator and silicone, neoprene or viton seals
• Salt spray exposure of 500hour
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Copper alloy crimp pin contacts with silver plating

Applications

Commercial, Industrial

Other details

Brand	AMPHENOL INDUSTRIAL
Part Number	AIB2-22-8PC
Quantity	Each

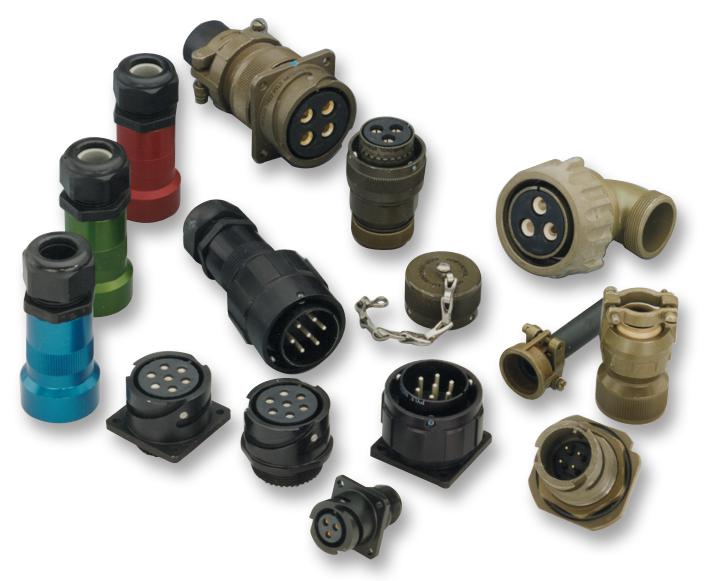

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
