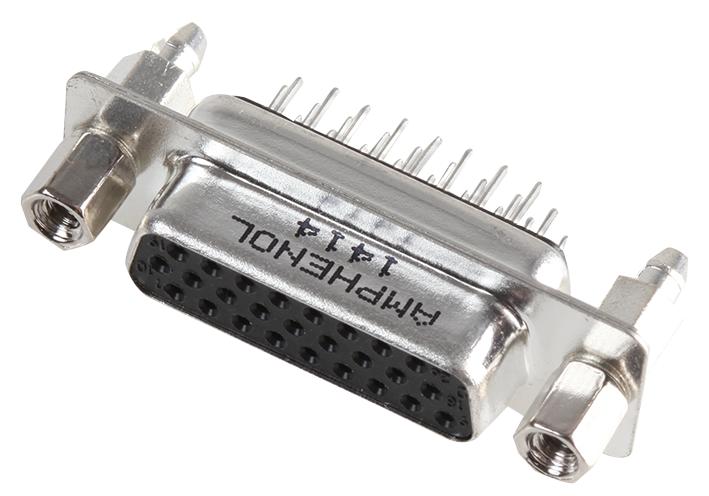

Amphenol's high density D-Sub connectors complement Amphenol's extensive D-Sub connector line. The decreased contact spacing accommodates greater signal density in comparison to conventional D-Sub connectors.
- Industrial, Telecom, Any industry standard I/O connections
- Shells: Steel with Nickel plating
- Insulator: Glass filled thermoplastic, UL 94V-0
- Contacts: Copper alloy, selective Gold plating
- Current Rating: 3A
- Voltage Rating: 600V AC/rms 50Hz
- Withstanding Voltage: 1000V AC/rms 50HZ for one minute
- Insulation Resistance: 5000MR
- Contact Resistance: 10mR Max.
- Operating temperature range -55°C to +125°C
Other details
| Brand |
AMPHENOL ICC |
| Part Number |
L77HDAH26SOL2RM8 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
