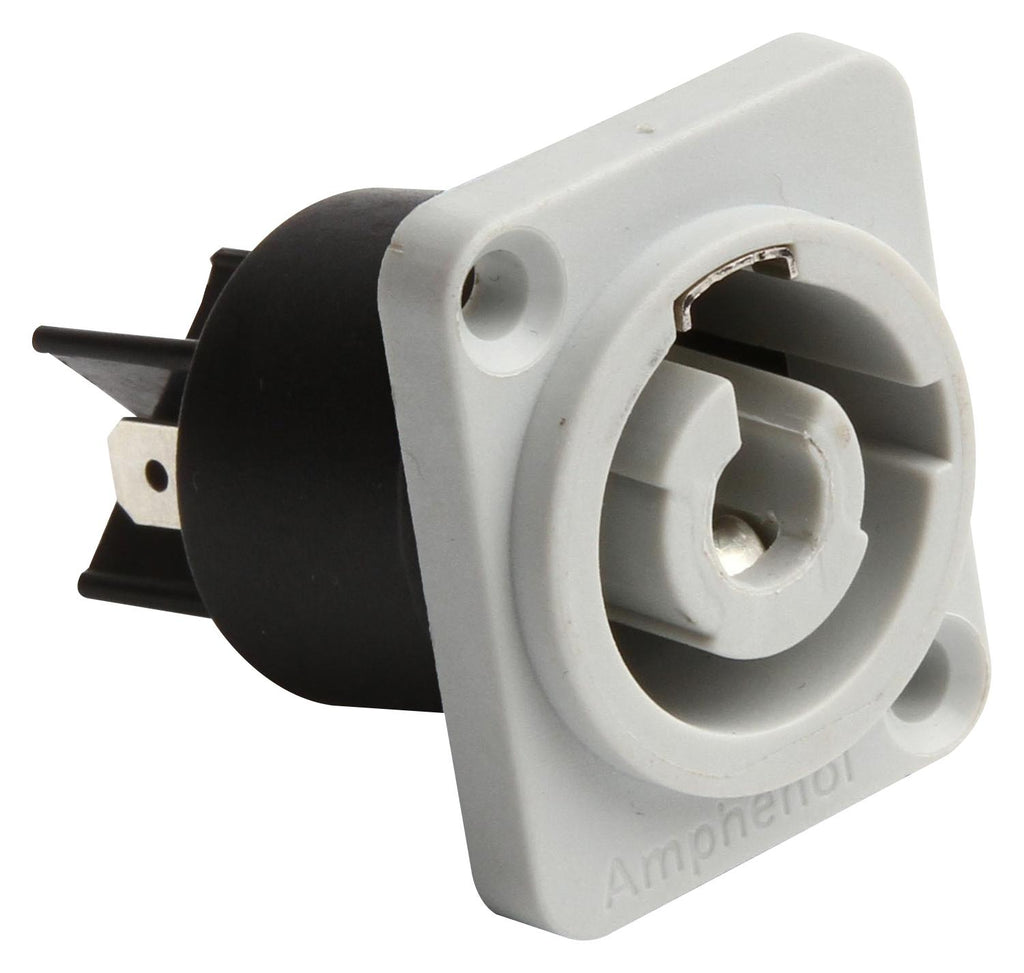

The HP-3-MDG from Amphenol is part of the HP Series of connectors suitable for AC power supply. Rated at 25A / 250VAC this 3 pole (2 + PE) chassis power connector is keyed and colour coded for power-out (Grey).
- 3 Pole (2 + PE) chassis connector
- Grey thermoplastic shell, keyed for power-out
- Solder Tab 3/16" contact
- Industry standard mating
- Flammability rated UL94V-0
- Rated operating voltage 250VAC
- Current carrying capacity 25A
- Operating temperature range -25°C to +75°C
- UL, cUL recognized components (File no. E339831)
Footnotes Note: The HP series of connectors are not designed to be "Hot Plugged" and so are without "Breaking Capacity". In other words, the connectors should not be connected or disconnected live or when under load.
Other details
| Brand |
AMPHENOL |
| Part Number |
HP-3-MDG |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
