Description

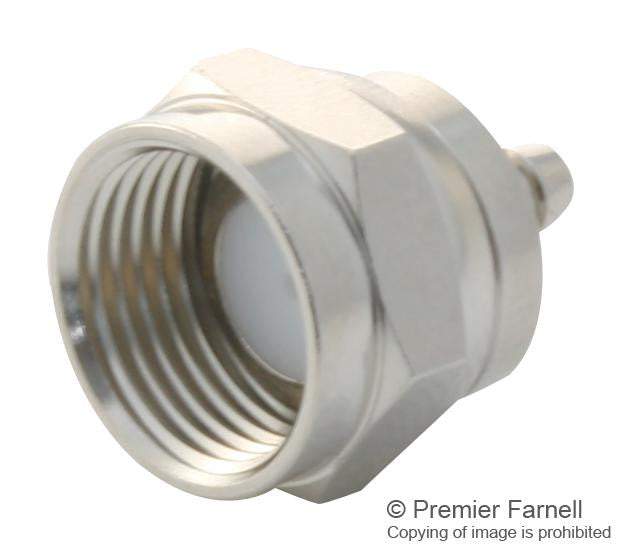

The 222113 is a RF Connector, F-type series, F-type straight crimp plug with gold-plated contacts. Body made up of brass with nickel-plated finish and PTFE insulator. The F-type connector series is a high performance, cost competitive threaded connector series. Primary applications of the F-type connectors are for cable television (CATV), set top boxes and cable modems. The F-type connector is a threaded alternative to the slide-on G-type connector. Suitable for Belden 9221, M17/94-RG179, RG-179, RG-179A, RG-179B and RG-187 cable.
- Threaded coupling mechanism
- Standard polarity
- Standard thread direction
- 500 Mating cycles
Applications
RF Communications, Communications & Networking, Fibre Optics
Product details
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Connector Type | F Coaxial |
| Coaxial Termination | Crimp |
| Connector Mounting | Cable Mount |
| Connector Body Style | Straight Plug |
| Coaxial Cable Types | RG179, RG187 |
| Impedance | 75ohm |
| Product Range | - |
| Frequency Max | 2GHz |
Other details
| Brand | AMPHENOL CONNEX |
| Part Number | 222113 |
| Quantity | Each |
| Drawing EN |  |
