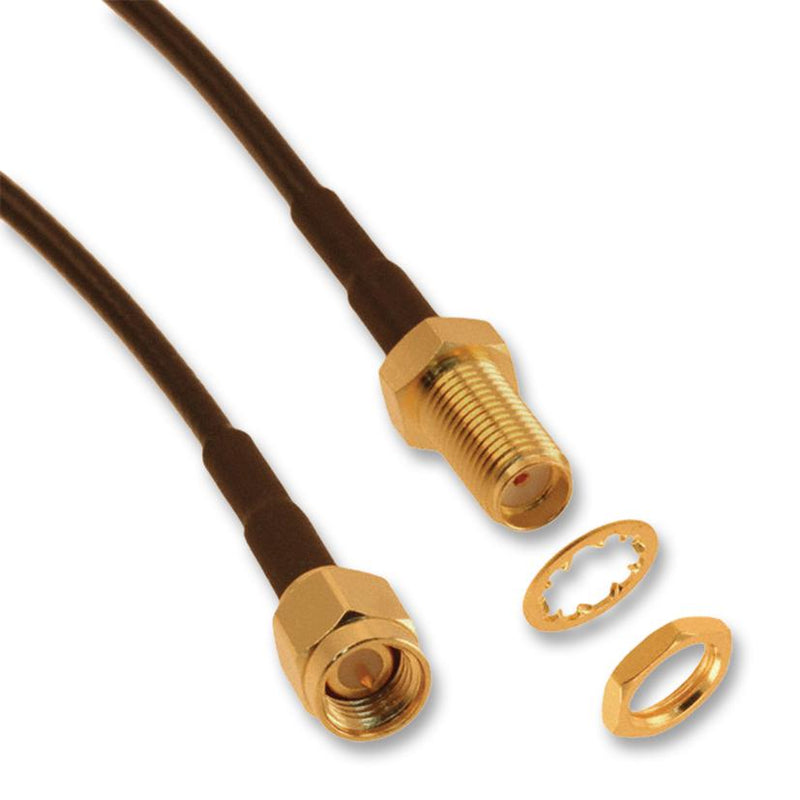

The 135110-02-M0.50 is a 0.5m RG-174/U RF Coaxial Cable Assembly with SMA straight plug to SMA bulkhead jack connection. The SMA connectors are semi-precision, sub-miniature, high-frequency connectors that offer reliable broadband performance. This flexible cable performs up to 3GHz with low reflection and constant 50R impedance. The SMA connectors feature a thread-on interface that offers high mechanical strength, high durability and low VSWR. Applications
RF Communications
Product details
| Connector to Connector |
SMA Plug to SMA Bulkhead Jack |
| Coaxial Cable Type |
RG174/U |
| Impedance |
50ohm |
| Cable Length - Imperial |
19.69" |
| Cable Length - Metric |
500mm |
| Jacket Colour |
Black |
| Product Range |
- |
Other details
| Brand |
AMPHENOL CONNEX |
| Part Number |
135110-02-M0.50 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
