Description

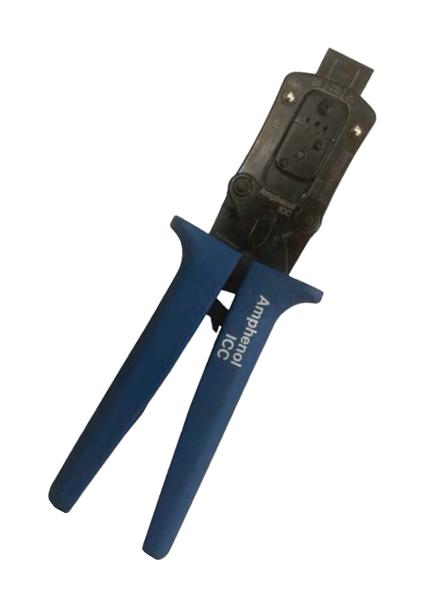

10164148-001HT is a ComboLock® 1.00mm signal pitch and 3.00mm power pitch hand tool. ComboLock® is a compact, hybrid wire-to-board connector system that saves space, allows for simpler assembly and simpler cable management. The connector system offers a hybrid 1.00mm pitch signal and 3.00mm pitch power configuration with an active latching feature. The connector has nominal current carrying capacity of 10A/pin max. for power and 1.5A/pin max. for signal.
- Easy handling, straight action principle
- Ratchet release, contact positioning with flap locator
- Precisely manufactured profiles, burnished surface
- Ergonomically formed soft-grips colour: traffic blue (similar RAL 5017)
- Dimension is 195mm length x 65mm width x 29mm depth
Warnings
Do not use the crimped wire in case of a premature release! Please pay attention that in-correct crimped wires are disposed and not processed.
Product details
| Crimp Tool Type: Hand |
| For Use With: Amphenol ComboLock Series 3mm/1mm Crimp-to-Wire Product, 18-20AWG Contacts |
| Product Range: 10164148 Series |
Other details
| Brand | AMPHENOL COMMUNICATIONS SOLUTIONS |
| Part Number | 10164148-001HT |
| Quantity | Each |
| Technical Data Sheet EN |  |
