Description

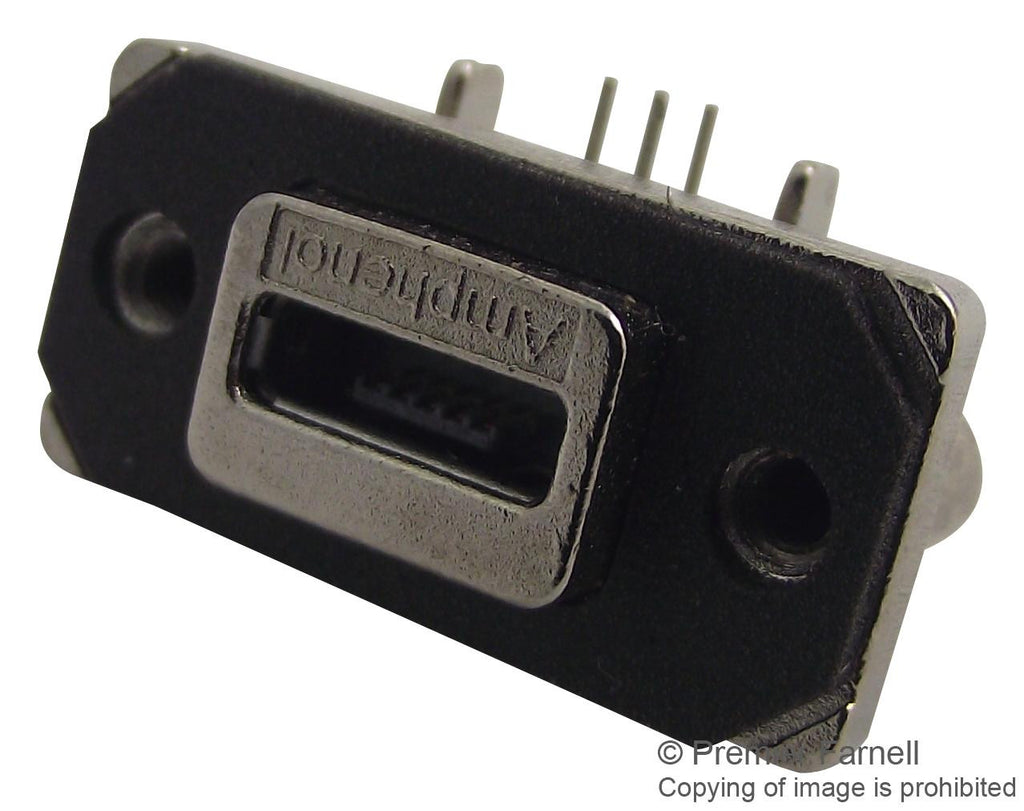

The MUSB-K152-30 is a right angle PCB mount rugged micro-AB USB Receptacle with gold-plated copper alloy contacts and a UL94V-0 flammability-rated engineering thermoplastic housing. The MUSB series unique and innovative USB connector design provides the ideal solution for data transfer in harsh or demanding environments. Environmental performance per IEC 60529 code IP67 for seal between mating area and PCB side of connector. Gasket provides seal to inside face of enclosure panel.
- Nickel-plated die-cast zinc alloy outer shell
- 30mR Maximum contact resistance
- -40 to +105�C Operating temperature range
- With rear shield
Applications
Commercial, Communications & Networking
Product details
| No. of Positions | 5Ways |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Orientation | Right Angle |
| Connector Mounting | Through Hole Mount |
| USB Standard | USB 2.0 |
| USB Connector Type | Micro USB Type AB |
| Product Range | MUSB Series |
| Gender | Receptacle |
Other details
| Brand | AMPHENOL COMMERCIAL PRODUCTS |
| Part Number | MUSB-K152-30 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| One Page Summary EN | |
