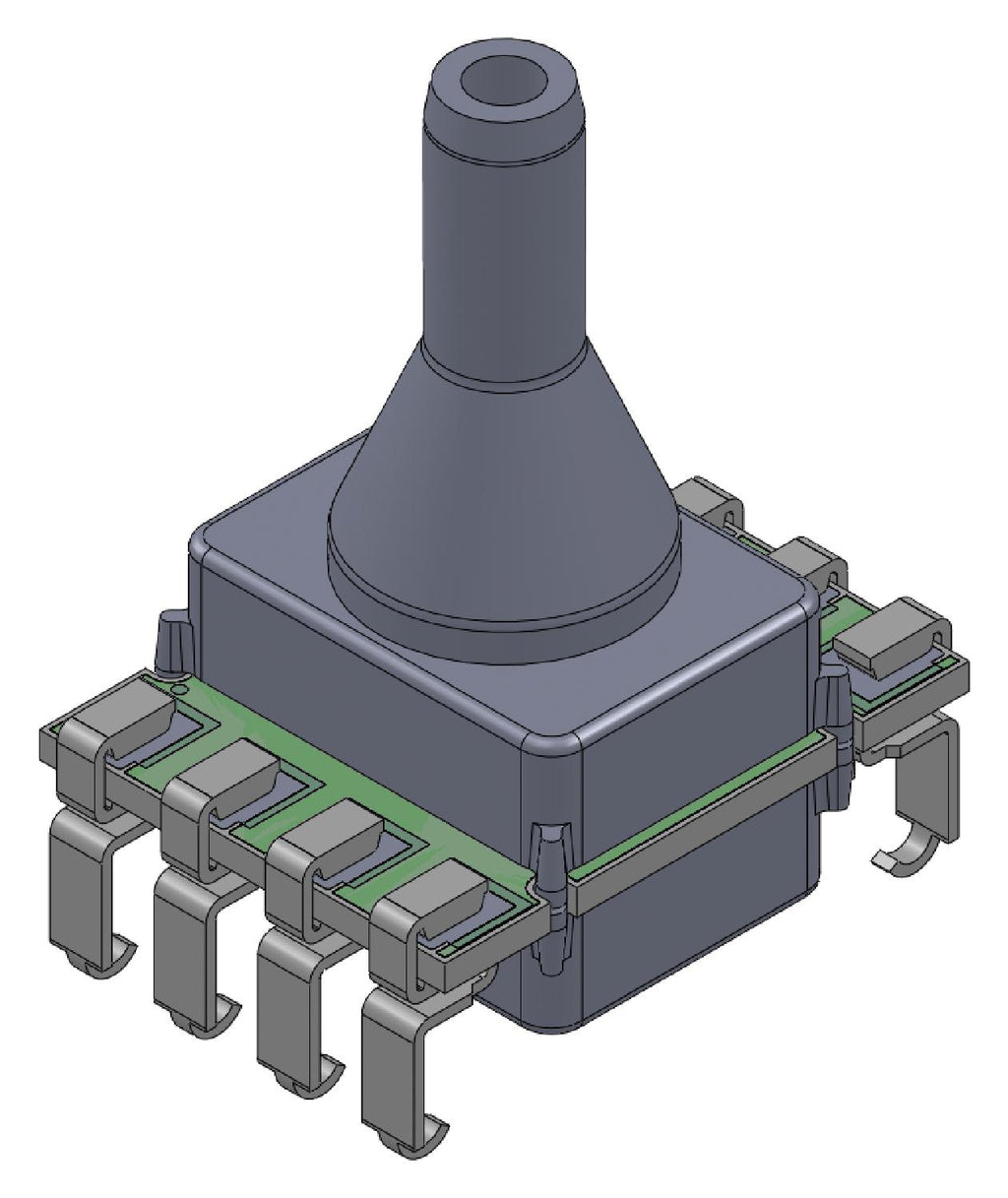

Product Overview
- ELVH series analogue and digital pressure sensor
- Gage pressure range from 0 to 100mbar
- HKNJ package
- Compensated temperature range from 0?C to 50?C
- No parylene coating
- I2C output
- 10 to 90% of Vsupply transfer function
- 3.3VDC supply voltage
Product details
Technical Specifications
Sensor Output Type
I2C Digital
Pressure Measurement Type
Gauge
Port Style
Single Axial Barbless
Sensor Output Type
Digital
Pressure Port Type
Single Axial Barbless
Operating Temperature Min
-25°C
Product Range
ELVH Series
Operating Pressure Min
0mbar
Operating Pressure Max
100mbar
Supply Voltage Max
3.3VDC
Sensor Case / Package
SIP
Sensor Mounting
Surface Mount
Operating Temperature Max
85°C
Other details
| Brand |
AMPHENOL ALL SENSORS |
| Part Number |
ELVH-M100G-HKNJ-C-N4A4 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
