Product Overview

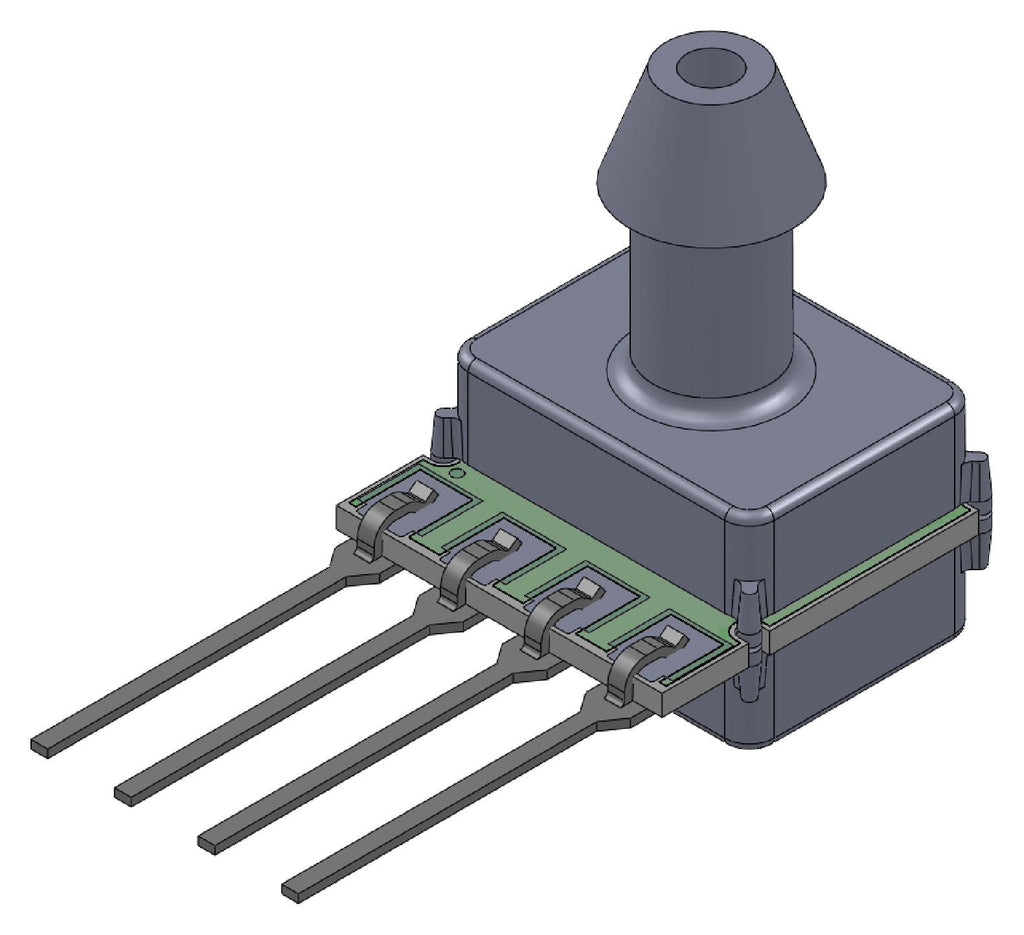

- ELVH series analogue and digital pressure sensor
- Gage pressure range from 0 to 100mbar
- HANH package
- Compensated temperature range from 0?C to 50?C
- No parylene coating
- I2C output
- 10 to 90% of Vsupply transfer function
- 3.3VDC supply voltage
Product details
Technical Specifications
Operating Pressure Min
0mbar
Operating Pressure Max
100mbar
Port Style
Single Axial Barbed
Sensor Output Type
Digital
Pressure Port Type
Single Axial Barbed
Operating Temperature Min
-25°C
Product Range
ELVH Series
Sensor Output Type
I2C Digital
Pressure Measurement Type
Gauge
Supply Voltage Max
3.3VDC
Sensor Case / Package
SMD, J-Lead
Sensor Mounting
Through Hole
Operating Temperature Max
85°C
Other details
| Brand |
AMPHENOL ALL SENSORS |
| Part Number |
ELVH-M100G-HANH-C-N2A4 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
