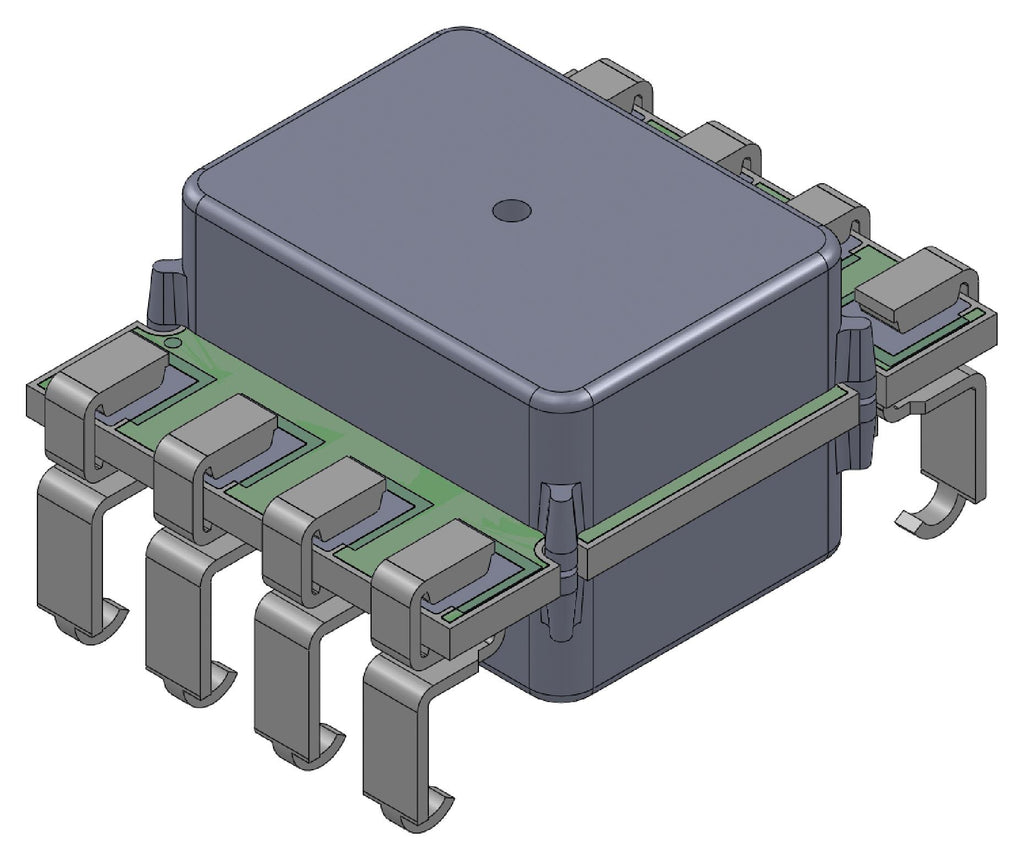

Product Overview
- ELVH series analogue and digital pressure sensor
- Absolute pressure range from 0 to 15psi
- HNNJ package
- Compensated temperature range from -20?C to 85?C
- No parylene coating
- I2C output
- 10 to 90% of Vsupply transfer function
- 3.3VDC supply voltage
Product details
Technical Specifications
Operating Pressure Min
0psi
Pressure Measurement Type
Absolute
Sensor Output Type
Digital
Operating Temperature Min
-25°C
Product Range
ELVH Series
Sensor Output Type
I2C Digital
Operating Pressure Max
15psi
Supply Voltage Max
3.3VDC
Sensor Case / Package
SIP
Sensor Mounting
Surface Mount
Operating Temperature Max
85°C
Other details
| Brand |
AMPHENOL ALL SENSORS |
| Part Number |
ELVH-015A-HNNJ-I-N5A4 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
