| ₹ 8054.37 includes GST and import duties. | |
| B2B customers can avail ₹ 1228.29 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

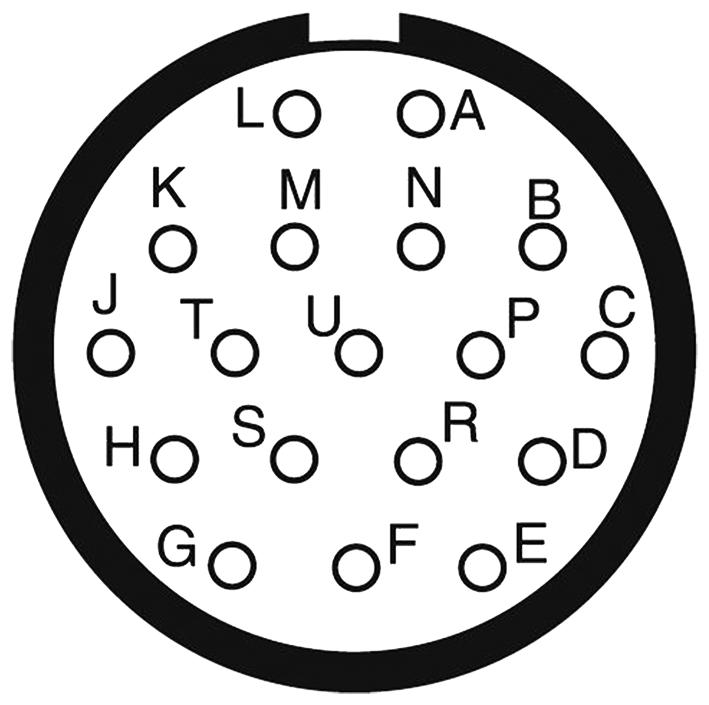

The D38999/20JD18PA-LC from Amphenol is MIL-DTL-38999 Series III wall mount receptacle with 18 contacts. MIL-DTL-38999 Series III connectors are available in wide range of shell materials and finishes with 48, 500, 1000 and 2000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It is designed to withstand the extreme shock, exposure and vibration.
- High reliability, moisture and corrosion resistant
- Outstanding EMI, RFI shielding protection
- 500 mating cycles, high durability versions are available with 1500 mating cycles
- Operates at extreme temperature range of -65°C to +200°C
- Minimum insulation resistance is 5000Mohm (under 500VDC)
- Scoop proof to eliminate the possibility of contact damage
- IP67 environmental protection
- Self locking connector system, triple start threaded coupling
- Composite body material with olive drab chromate over cadmium plating
- Copper alloy crimp pin contacts with gold plating
Aerospace, Defence, Military, Industrial
Other details
| Brand | AMPHENOL AEROSPACE |
| Part Number | D38999/20JD18PA-LC |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7893.28 |
| 3-5 | ₹ 7812.74 |
| 5-10 | ₹ 7651.65 |
| 10+ | ₹ 7490.56 |
Bulk discount will be automatically applied during checkout based on quantity.
