Description
Product Overview

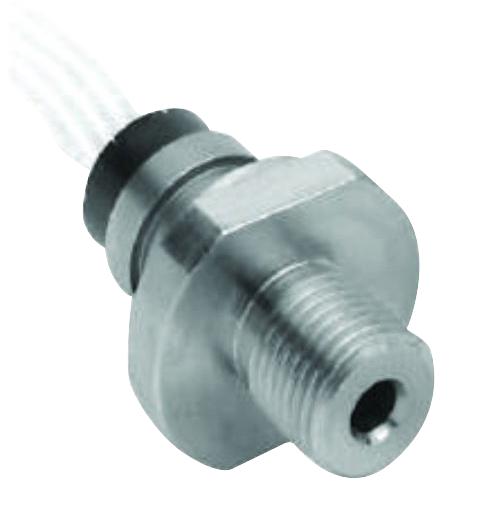

NPI-15J-702AH is a NovaSensor NPI-15 series incorporates state- of-the-art IsoSensor technology, which gives the OEM user the best in price and performance. It is designed to operate in hostile environments and yet give outstanding sensitivity, linearity, and hysteresis of a silicon sensor. The piezoresistive sensor chip is housed in a fluid-filled cylindrical cavity and isolated from the measured media by a stainless steel diaphragm and body. As with all NovaSensor silicon sensors, the NPI-15 Series employs SenStabIe® processing technology, providing excellent stability. Typical applications include process control system, hydraulic system and valves, automobiles and trucks, biomedical instruments, refrigeration and HVAC controls, appliances and consumer electronics, ship and marine systems, aircraft and avionic systems.
- Solid state, high reliability
- High sensitivity with 200mV typical FSO with 1mA
- 316L stainless stell, Isosensor design
- Linearity 0.1% FSO typical
- Thermal accuracy 0.2% FSO typical
- Operating temperature range from -40 to 125°C
- 10 x 10? cycles life (dynamic pressure cycle)
- 316 stainless steel case and diaphragm material
Product details
Other details
| Brand | AMPHENOL ADVANCED SENSORS |
| Part Number | NPI-15J-702AH |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 12800.57 |
| 3-5 | ₹ 12669.96 |
| 5-10 | ₹ 12408.72 |
| 10+ | ₹ 12147.48 |
Bulk discount will be automatically applied during checkout based on quantity.
