Description
Product Overview

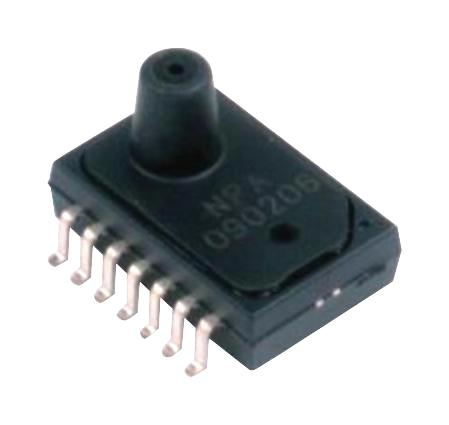

NPA-300M-10WG is a NovaSensor NPA series of surface-mount pressure sensor. It is provided in a miniature size as a cost effective solution for applications that require calibrated performance. Packaged in a SOIC14 pin surface mount, the NPA Series is available in gauge, absolute and differential pressure ranges with either mV, amplified analogue or digital outputs. The sensor is intended for printed circuit board mounting and delivered in tape and reel form to simplify manufacturing handling.
- 1 manifold port for gauge and absolute pressure types
- Gauge pressure type
- On chip temperature sensor in digital mode
- Operating temperature range of -40°C to 125°C
- Total error band of <lt/> ±1.5% FSO
- 3.3V excitation voltage, 3.135V to 3.465V min/max, NPA compensated, low power amplified analogue
- 10� H2O (2.5KPa) pressure range
- Accuracy (total error band) range from -1.5 to 1.5%FSO
Product details
Other details
| Brand | AMPHENOL ADVANCED SENSORS |
| Part Number | NPA-300M-10WG |
| Quantity | Each |
| Technical Data Sheet EN |  |
