Description

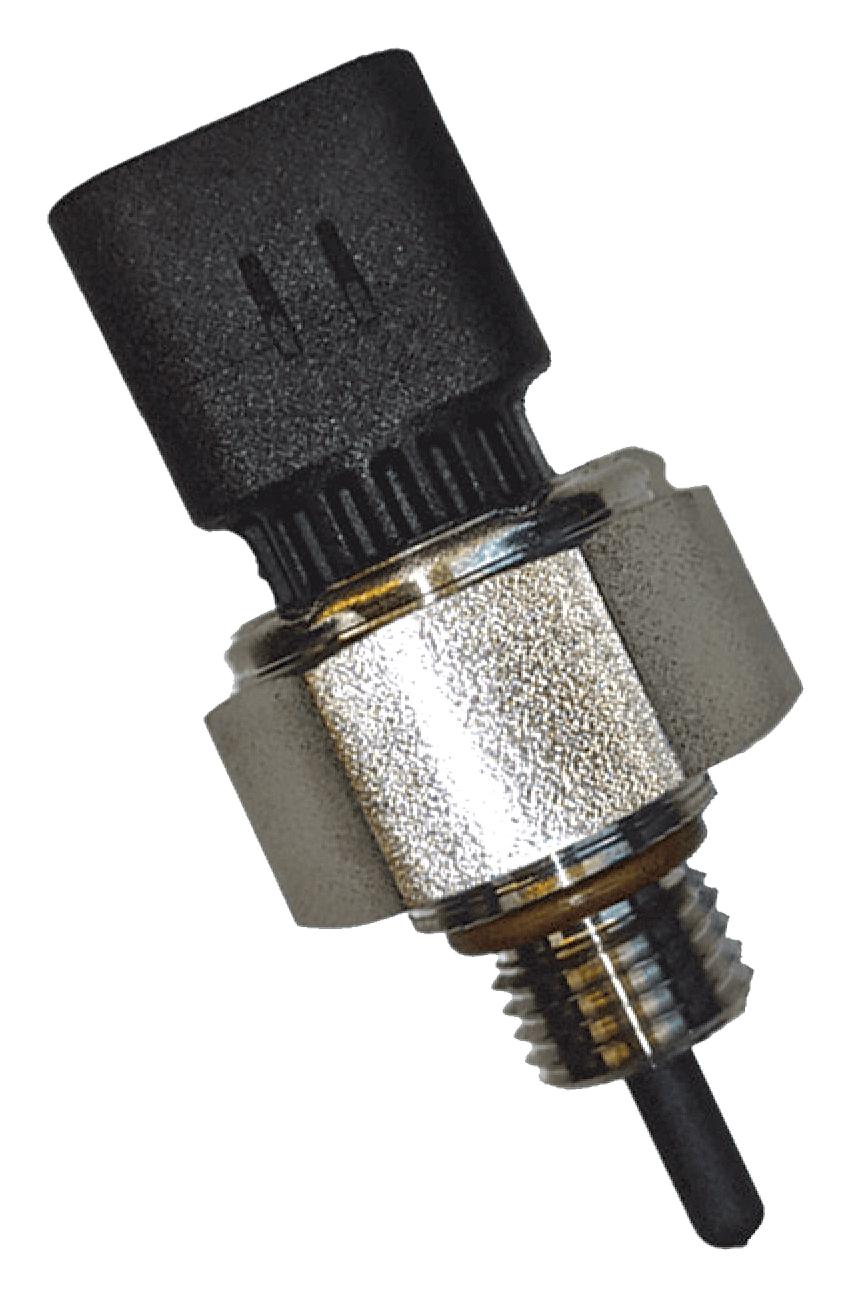

Thermometrics pressure and temperature combination sensor provides both pressure and temperature measurements in one sensor assembly. For reliable and accurate measurements, the sensor utilizes NTC thermistor technology for temperature sensing alongside silicon-based Microelectromechanical Systems (MEMS) technology for absolute pressure sensing. This sensor assembly also features robust internal circuit protection and sealed integral connection system, which makes it ideal for automotive (engine fuel, engine oil, engine intake manifold), heavy equipment, agricultural, electric vehicle (EV) battery coolant and generator set applications.
- Robust internal circuit protection
- Sealed integral connection system
- MEMS based pressure sensing
- NTC thermistor temperature sensing
- Mating port per ISO standard
- M14x1.5 mating port size, 25Nm ± 5Nm installation torque
- 20 to 204kPa (2.9 to 29.6psi) absolute pressure sensing range
- 304 SS housing material
- 4.5V to 5.5V supply (Vs) voltage
- 7mA current consumption
Other details
| Brand | AMPHENOL ADVANCED SENSORS |
| Part Number | GE-2098 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Reference Manuals EN | |
| One Page Summary EN | |
| Manufacturer Catalogue EN | |
| Enhanced Product Overview EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9714.05 |
| 3-5 | ₹ 9614.93 |
| 5-10 | ₹ 9416.69 |
| 10+ | ₹ 9218.44 |
Bulk discount will be automatically applied during checkout based on quantity.
