Description

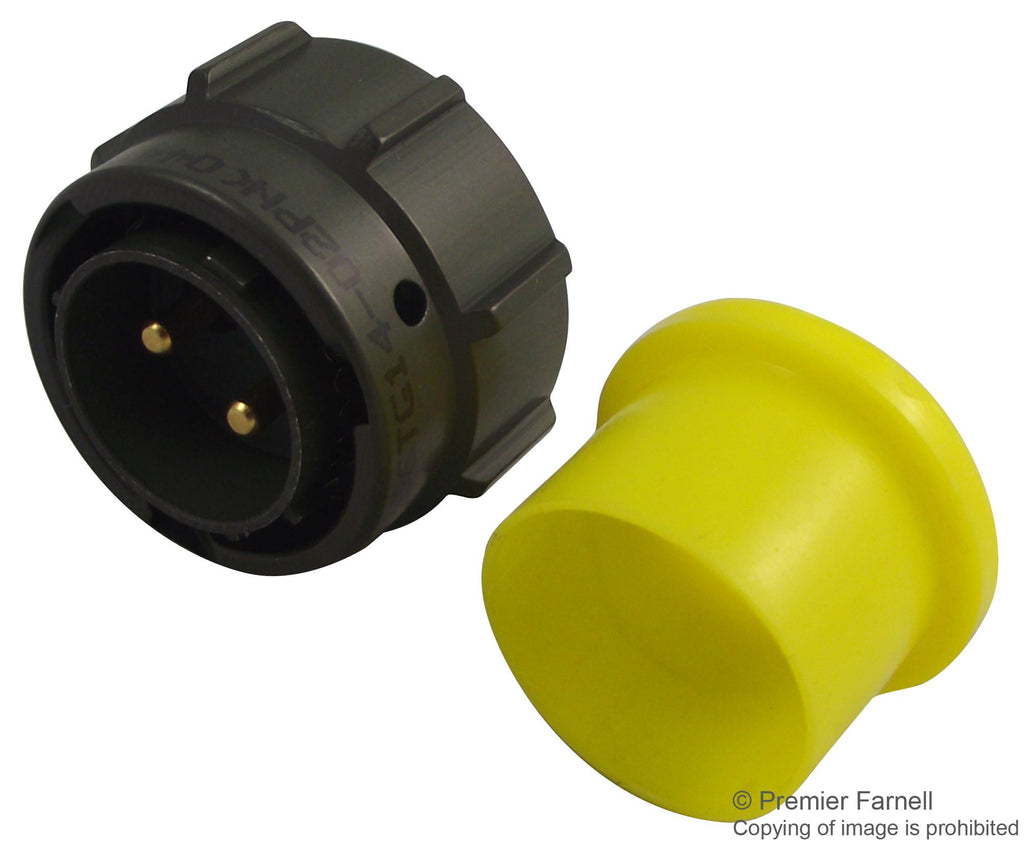

The 62GB-56TG14-02PN(044) is a 2-contact miniature Bayonet Lock Connector with gold-plated copper contacts and rough grip heavy-duty coupling ring. This 14-size plug has pin type contacts, solder termination and 14-2 insert arrangement. The normal shell finish used, which has a high resistance to corrosion and is zinc cobalt olive drab.
- 13/16-20 UNEF Thread
- 5mR Contact resistance
- 5000MR at 500 to 50VDC Insulation resistance
- 500 Operations minimum mechanical endurance
Applications
Aerospace, Defence, Military
Product details
| Contact Material | Copper Alloy |
| Circular Connector Shell Style | Straight Plug |
| Contact Plating | Gold |
| Insert Arrangement | 14-2 |
| Connector Body Material | Aluminium Alloy Body |
| Service Class | General Duty |
| Coupling Style | Bayonet |
| No. of Contacts | 2Contacts |
| Product Range | 62GB Series |
| Equivalent Military Specification | MIL-DTL-26482 Series |
| Connector Body Plating | Olive Drab Zinc |
| Insert Rotation | N |
| Circular Contact Type | Solder Pin |
Other details
| Brand | AMPHENOL |
| Part Number | 62GB-56TG14-02PN(044) |
| Quantity | Each |
| Technical Data Sheet EN |  |
